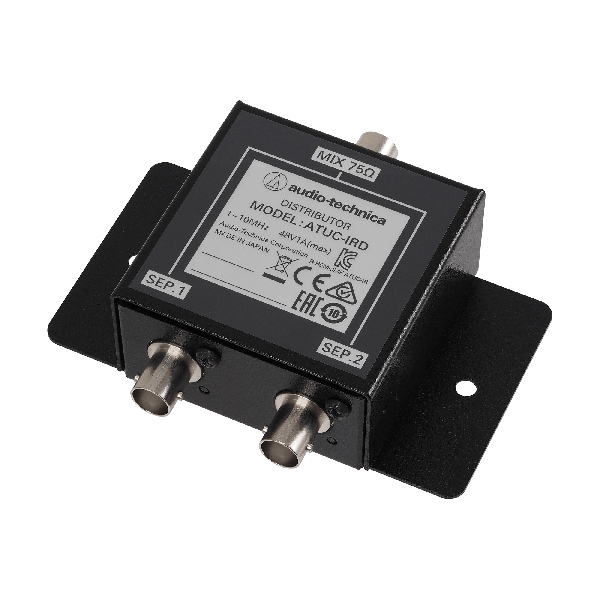

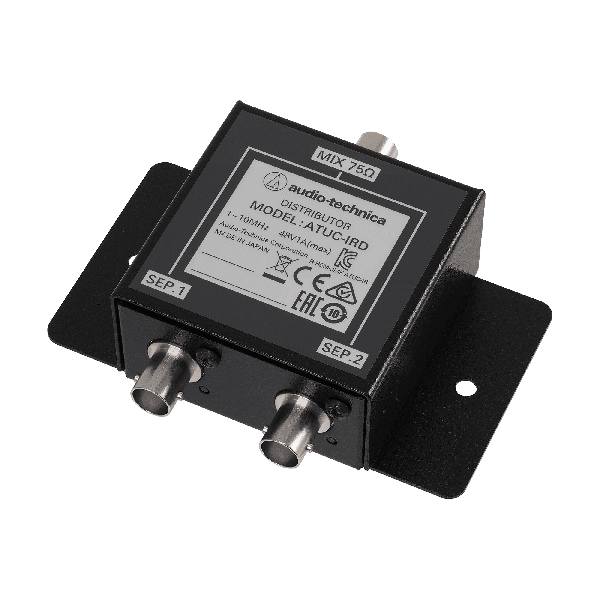

Audio-Technica ATUC-IRD IR Antenna Signal Distributor

IR Antenna Signal Distribution

The Audio-Technica ATUC-IRD is a mountable signal distributor designed to enhance the connectivity of infrared discussion systems. This 1-in 2-out distributor facilitates the daisy-chaining of ATUC-IRA antennas to ensure stable signal coverage across the designated area.

System Expansion and Scaling

The ATUC-IRD allows for significant expansion of a discussion system's wireless infrastructure. By integrating these units, users can increase the total antenna count to accommodate larger spaces or more complex layouts.

• The system supports the use of up to 12 distributors simultaneously.
• Installation of these distributors increases the number of available ATUC-IRA antennas from 4 to a maximum of 16.
• The daisy-chaining capability provides a streamlined path for signal routing between the central unit and remote antennas.

Technical Design and Connectivity

• The device functions as a 2-to-1 BNC cable distributor to manage signal flow efficiently.
• The mountable chassis allows for secure placement during permanent installations.
• The unit utilizes BNC cable interfaces to maintain signal integrity throughout the distribution chain.
