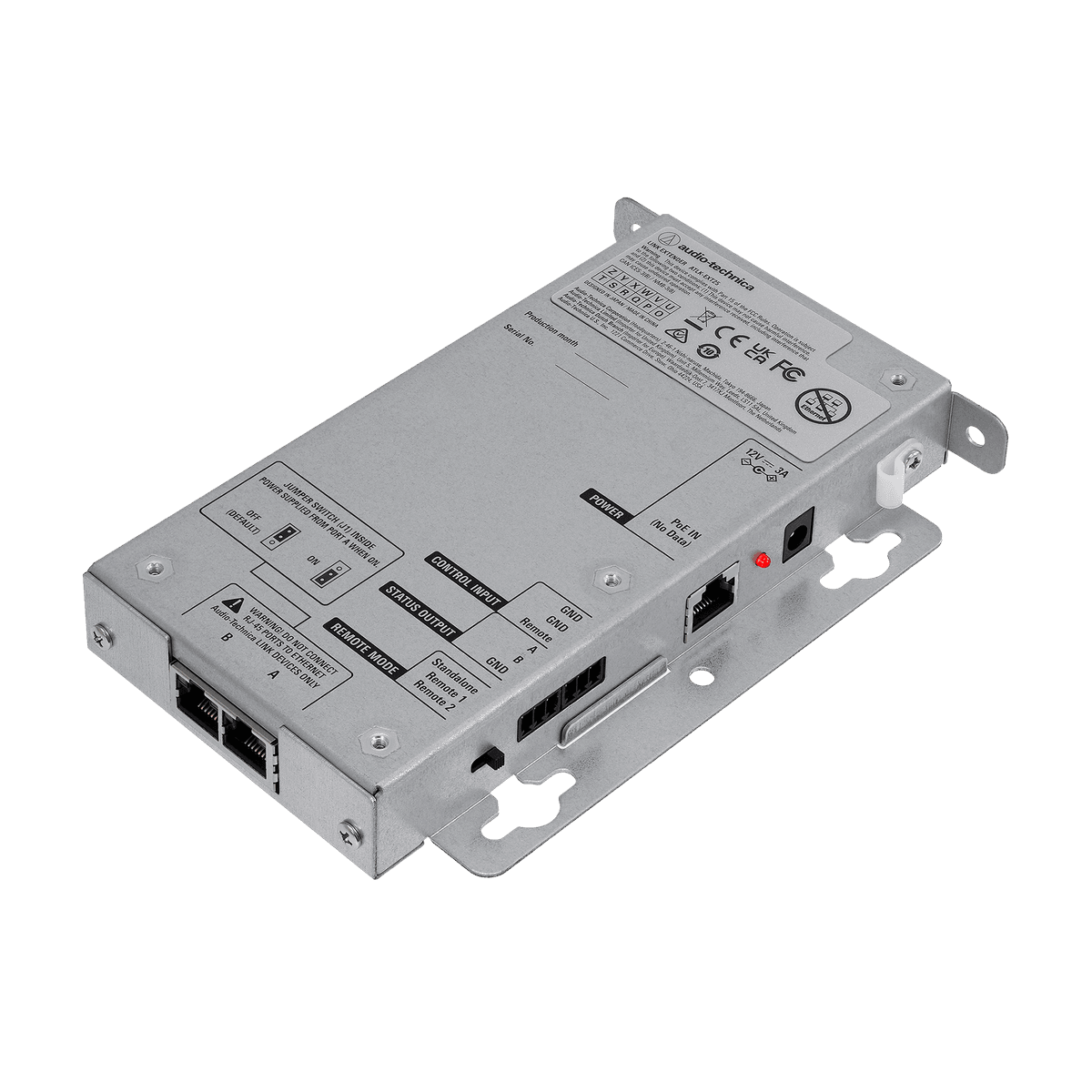

The Audio-Technica ATLK-EXT25 Audio Link Extension Interface facilitates extended cable runs and enhanced power distribution for professional audio environments. This interface specifically supports ATUC conferencing systems and SmartMixer devices equipped with dedicated Audio-Technica LINK RJ-45 ports.
Versatile System Connectivity
The ATLK-EXT25 features two RJ45 ports designed for integration into existing component chains. The unit supports both ring and daisy chain configurations, allowing the device to feed signals and power in both forward and reverse directions. This bi-directional capability ensures flexible installation options for complex conference setups.
Power Delivery and Extension
This interface enables longer cable runs by supplying connected devices with 48 V direct current (DC). For users employing SmartMixer components, the ATLK-EXT25 adds up to 25 watts of additional power to the system. This power injection maintains signal integrity and device performance over extended distances.
Operation and Monitoring
The device supports local or remote operation to accommodate different administrative requirements. An integrated LED power indicator provides immediate visual confirmation of the unit’s operational status. The ATLK-EXT25 receives power via PoE/PoE+ or through an external AC adapter, which is available separately.
Key Features
- Two RJ45 ports for dedicated Audio-Technica LINK terminal connections.
- 48 V DC supply to support extended cable runs.
- 25-watt power addition for connected SmartMixer devices.
- Bi-directional feeding supports ring or daisy chain topologies.
- LED status indicator for power monitoring.
- Flexible power options including PoE/PoE+ or external AC adapter (not included).
