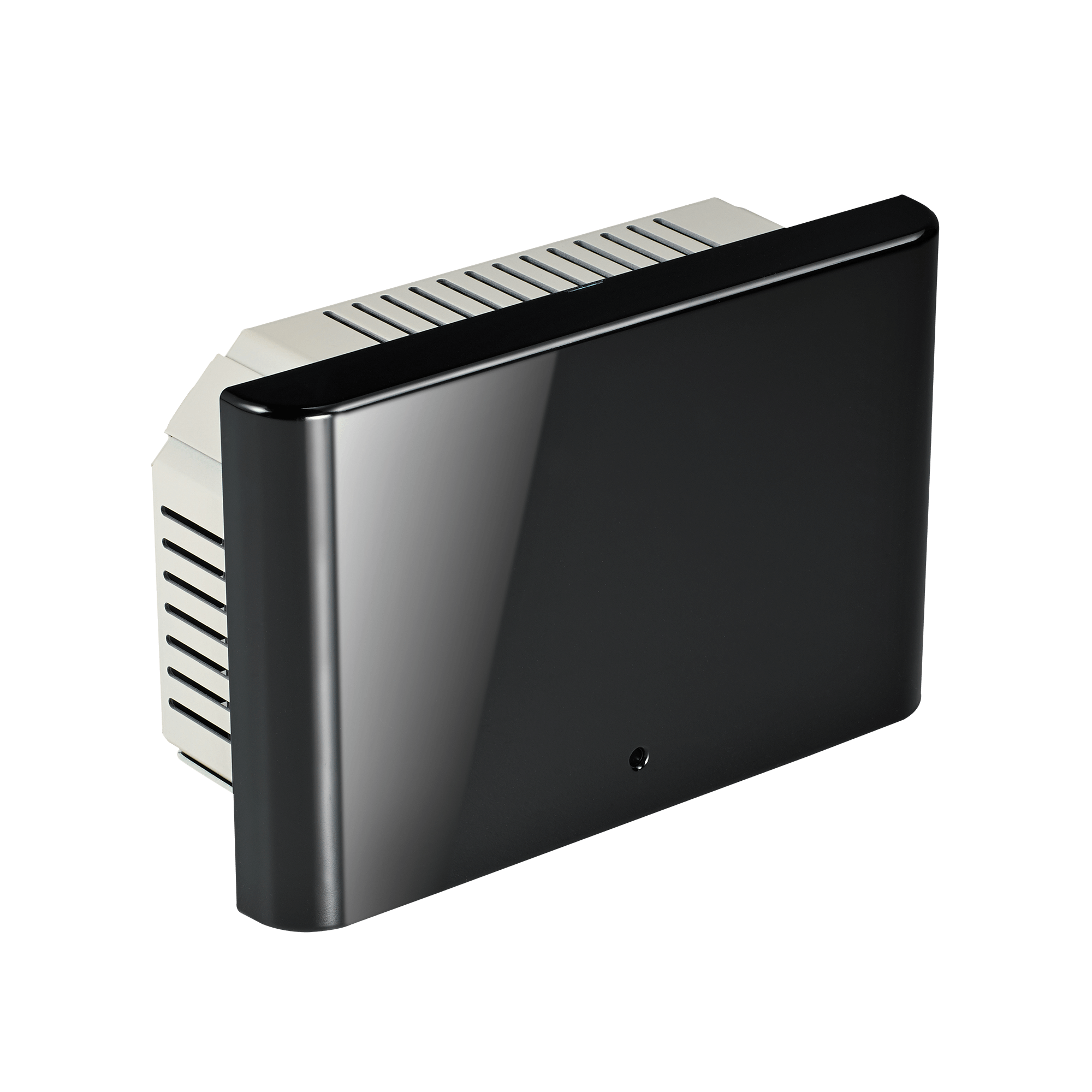

The Audio-Technica ATCS-A60RX IR Conference Transmitting Unit is an infrared transmitting component designed for use with the ATCS-60 IR Conference System.
The Audio-Technica ATCS-A60RX IR Conference Transmitting Unit is a dedicated infrared component for the ATCS-60 IR Conference System. This unit facilitates stable wireless communication to ensure clear signal transmission during conference sessions.
The ATCS-A60RX functions in direct conjunction with the ATCS-A60MX transmitter/receiver mixer and the ATCS-A60TX transmitting unit. This interoperability allows the infrared receiving unit to maintain consistent performance within the established ATCS-60 hardware ecosystem.
This unit features a design optimized for flexible installation in various professional environments.
| Operating Frequencies | Infrared |
| Number Of Channels | Voice: 5 channels |
| Monitor | 4 channels |
| Data | 2 channels |
| Operating Bandwidth | 1 - 5 MHz |
| Operating Distance | 15 m (approx.) |
| Operating Temperature Range | 0° to +40°C |
| Connections | BNC Terminal (75 ohms) x1 |
| Power Supply | 24 V DC (provided by ATCS-A60MX) |
| Dimensions | 149 mm x 44 mm x 97 mm (W x H x D) |
| Weight | 386 g (approx.) |
| Bandwidth | 1 - 10 MHz |
| Modulation Method | FM modulation |
| Data Communication | 9,600 bps |
| Length | 6 In. |
|---|---|
| Width | 5 In. |
| Height | 3 In. |
| Weight | 1 lbs |
