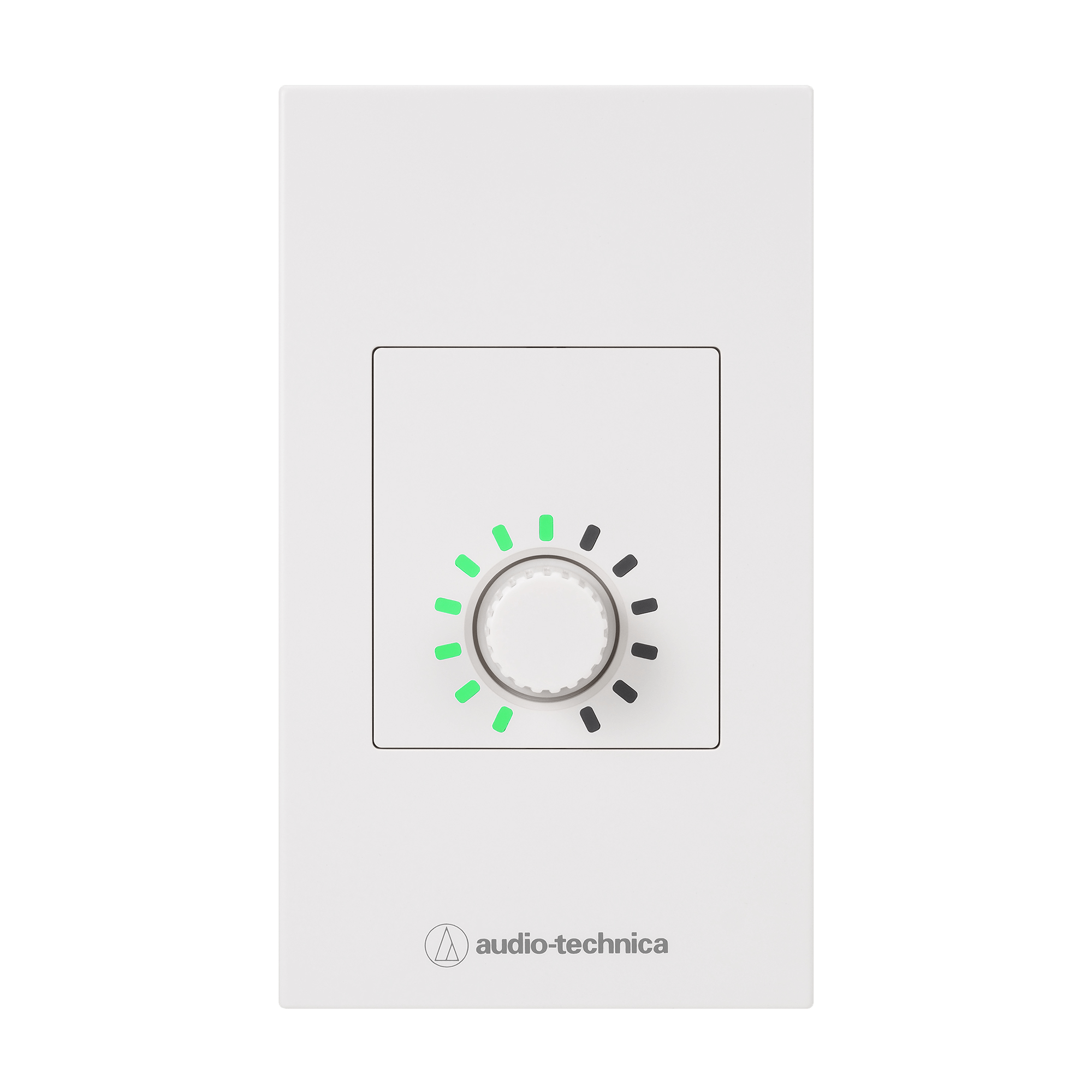

The Audio-Technica ATCP-W01R Wall-Mount Control Panel provides dial volume control for integrated use with ATDM-0604a or ATDM-1012/ATDM-1012DAN Digital SmartMixers.
The Audio-Technica ATCP-W01R Wall-Mount Control Panel is a dedicated hardware interface designed to improve the functionality of Audio-Technica Digital SmartMixers. This wall-mounted unit provides a convenient dial volume control for the ATDM-0604a, ATDM-1012, and ATDM-1012DAN models, allowing for straightforward audio adjustments in a permanent installation.
The rear of the ATCP-W01R features two RJ45 Audio-Technica LINK ports. These ports facilitate the connection between the control panel and the mixer using Cat5e or higher Ethernet cable. This standard cabling ensures reliable communication and simplifies the wiring process during system setup.
This control panel supports multi-unit configurations to accommodate various room sizes and user requirements. A single mixer can drive up to four control panels simultaneously.
| Power Supply | DC+8 to +48V (Audio-Technica LINK) |
| Power Consumption | 1.2 W |
| Operating Temperature Range | 0 to 40℃ (32 to 104°F) |
| Operating Humidity Range | 25 to 85% (no condensation) |
| Dimensions | 70 mm (2.8") x 60.7 mm (2.4") x 120 mm (4.7") |
| Weight | 112 g (4.0 oz) |
| Indicator | Volume LED: 13 points (green) |
| Link I/O | RJ-45 x 2 pcs (Audio-Technica LINK) |
| Length | 10 In. |
|---|---|
| Width | 6 In. |
| Height | 3 In. |
| Weight | 1 lbs |
