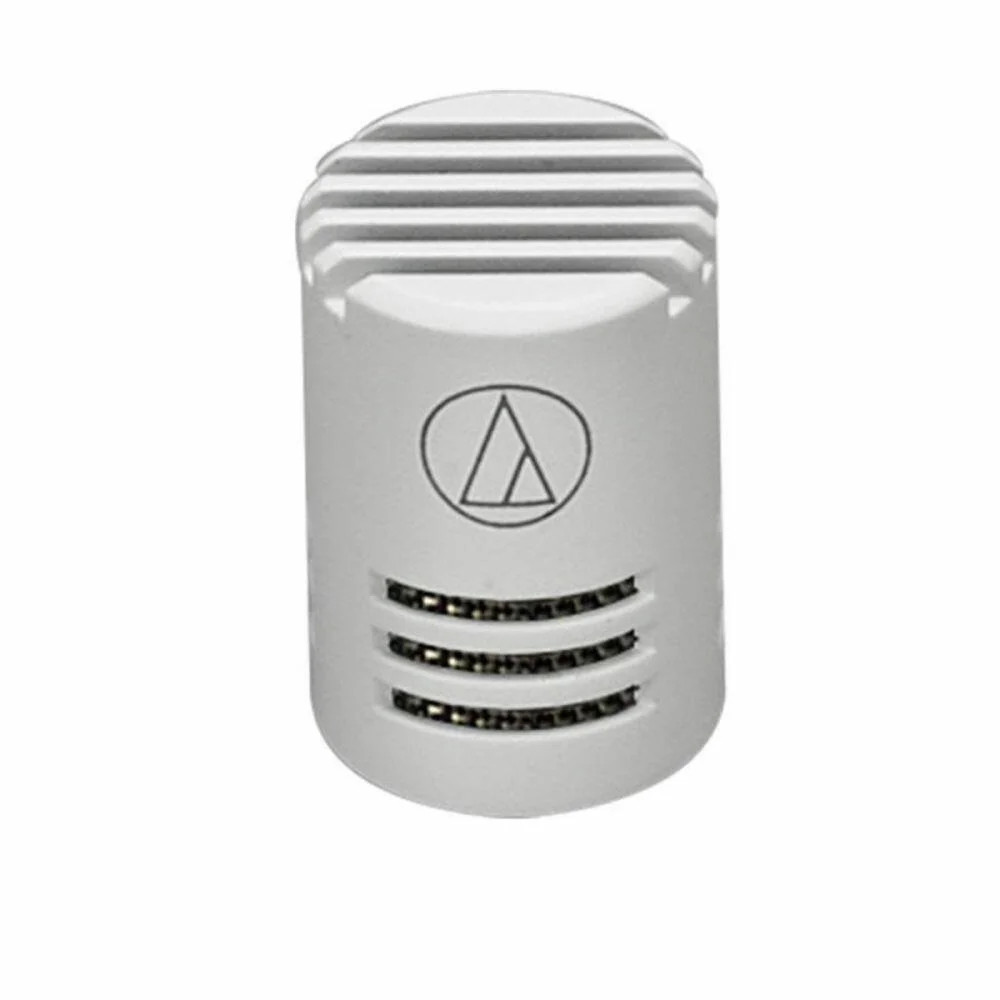

The Audio-Technica ESE-HW White Hypercardioid Microphone Element is a specialized component for ES925 microphones featuring a 100-degree pickup pattern.
The Audio-Technica ESE-HW is a professional-grade hypercardioid microphone element designed for seamless integration with ES925 modular microphone systems. This white transducer element serves as a high-performance audio capture solution, offering precise directional control for various installation environments.
The ESE-HW features a hypercardioid polar pattern that provides a focused 100-degree pickup angle. This tight directional response allows the microphone to isolate the desired sound source while effectively rejecting off-axis noise and background interference. The 100-degree pattern ensures clear audio reproduction, making it suitable for applications requiring high gain before feedback.
Engineered specifically for the Audio-Technica ES925 microphone series, the ESE-HW allows users to customize their modular microphone setup based on specific acoustic requirements. The white finish offers an aesthetic alternative for architectural blending in professional settings, such as boardrooms, government facilities, or houses of worship.
| Nominal Pickup Angle | 100 degrees |
| Microphone Element Type | Permanently polarized condenser |
| Diaphragm Type | Small diaphragm |
| Construction Material | Metal housing with wire mesh grille |
| Self-Noise | 26 dB SPL |
| Operating Humidity Range | 20% to 90% relative humidity, non-condensing |
| Maximum Input Sound Level | 130 dB SPL, 1 kHz at 1% T.H.D. |
| Signal-to-Noise Ratio | 68 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC (when used with ES925 body) |
| Polar Pattern | Hypercardioid |
| Connection Type | Threaded screw-on |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Frequency Response | 80 Hz - 20,000 Hz |
| Intended Use | Speech, vocals, instrument pickup |
| Finish | Low-reflectance white |
| Diameter | 0.47 inches (12 mm) |
| Color | White |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Mounting Type | Screw-on |
| Dynamic Range | 106 dB, 1 kHz at Max SPL |
| Open Circuit Sensitivity | -35 dB (17.7 mV) re 1V at 1 Pa |
| Length | 0.83 inches (21 mm) |
| Off-Axis Rejection | Excellent |
| Compatibility | Audio-Technica ES925 Series Microphones |
| Impedance | 200 ohms |
| Length | 3 In. |
|---|---|
| Width | 2 In. |
| Height | 1 In. |
| Weight | 1 lbs |
