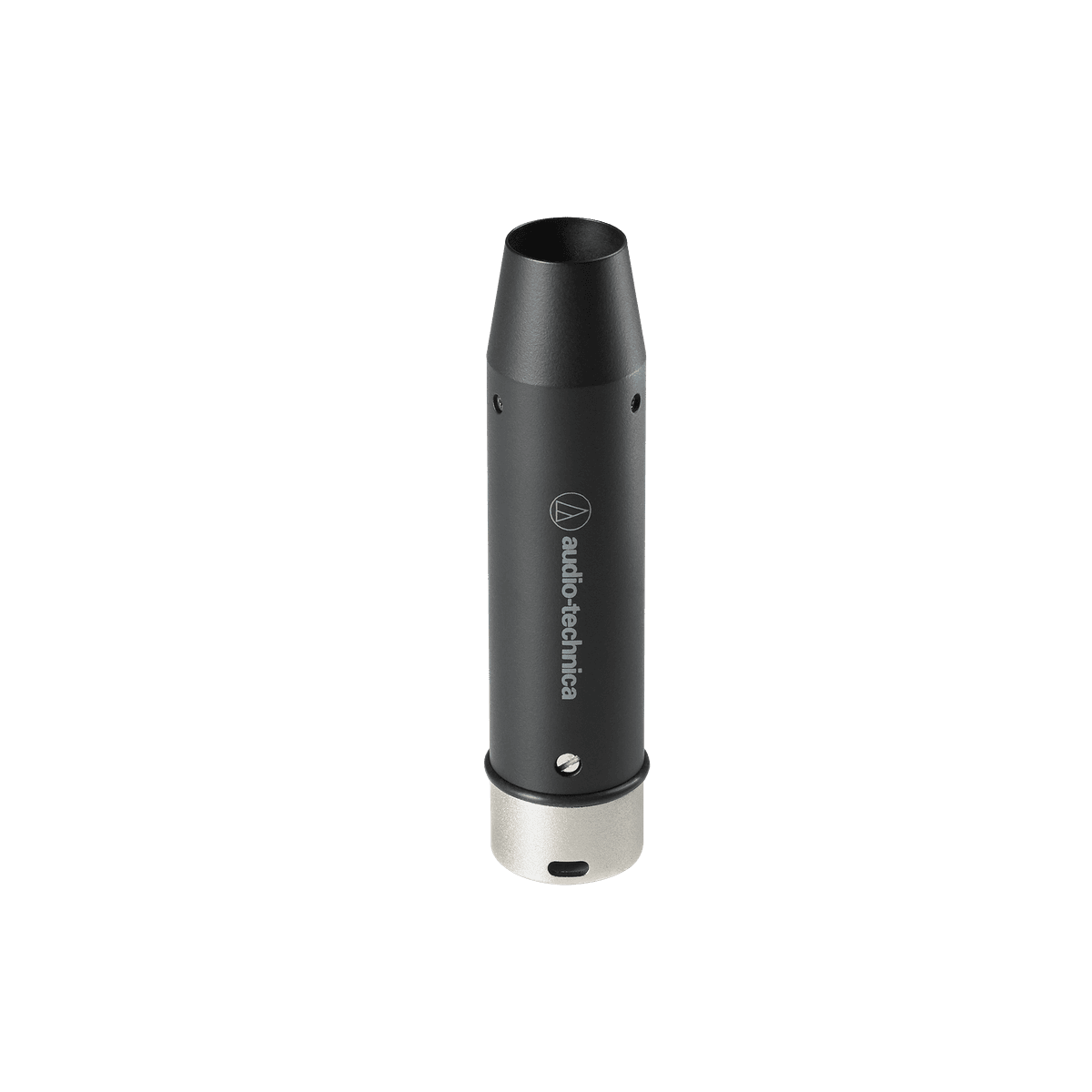

The Audio-Technica ES8544 3-Pin XLR Phantom Power Microphone Module serves as a dedicated 3-pin XLR power module for professional audio applications.
The Audio-Technica ES8544 3-Pin XLR Phantom Power Microphone Module provides a reliable power interface for ES925 goosenecks and microphone elements. This module enables seamless integration between microphone components and professional audio equipment using standard XLR connections.
The ES8544 offers multiple installation options to suit various environments. The module plugs directly into any standard XLRF-type connector for traditional setups. For specialized configurations, the included quick-mount stand adapter allows the module to mount securely to 5/8"-27 stands. A low-profile universal isolation mount comes with the unit to attenuate noise, shock, and vibration, protecting the audio signal from mechanical interference.
This power module supports remote LED control when integrated with ATUC products or the AT8699R desk stand. This functionality allows for visual status indication in conferencing and broadcast settings. The ES8544 is specifically designed for use with ES925 series goosenecks and their corresponding microphone elements.
The ES8544 operates using phantom power requirements ranging from 11V to 52V DC. It features an output impedance of 130 ohms to maintain signal integrity across the connection. The unit utilizes an integral 3-pin XLRM-type output connector for universal compatibility with professional audio interfaces and mixers.
With a diameter of 20.2 mm (0.80") and a height of 80.8 mm (3.18"), the ES8544 maintains a small footprint. The module weighs 68 g (2.4 oz), providing a lightweight yet durable solution for permanent or portable installations.
