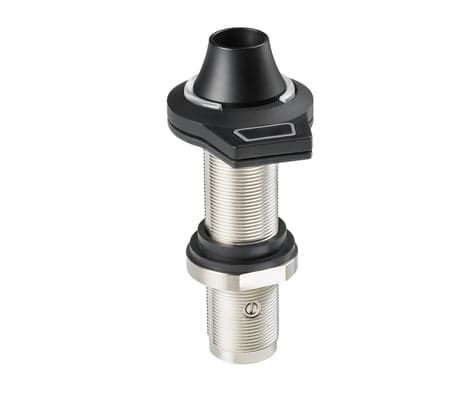

The Audio-Technica ES8755R 3-Pin Flush-Mount Microphone Power Module provides a professional 3-pin flush-mount power solution for compatible microphone systems.
The Audio-Technica ES8755R 3-Pin Flush-Mount Microphone Power Module is a specialized audio component designed for seamless integration with ES925 goosenecks and microphone elements. This power module provides a low-profile solution for tabletop installations while offering integrated control and status monitoring.
The ES8755R features a touch-sensitive capacitive-type user switch that allows for local muting of the microphone. This switch provides immediate control at the source without the need for external hardware. To provide clear visual feedback, the module includes a highly visible, two-state RGB LED status indicator that displays the active or muted state of the microphone.
This power module utilizes an integral 3-pin XLRM-type output connector for reliable signal transmission. It operates with an impedance of 180 ohms and requires 22-52V DC phantom power. These specifications ensure compatibility with standard professional audio interfaces and mixing consoles.
Designed for flush-mount installation, the ES8755R mounts unobtrusively into tabletops to maintain a clean workspace. The module includes a pair of isolators that provide mechanical dampening of the mounting surface. These isolators effectively reduce the transmission of vibrations and mechanical noise to the microphone element.
The Audio-Technica ES8755R is specifically engineered for use with ES925 goosenecks and microphone elements. The unit measures 38.0 mm (1.50") in width, 48.0 mm (1.89") in depth, and 90.8 mm (3.57") in height, weighing approximately 75 g (2.6 oz).
