Manufacturer Name
MPN
ATW-R3210DE2
SKU
TMU-ATW-R3210DE2
UPC
4961310143626
Product Condition
NEW

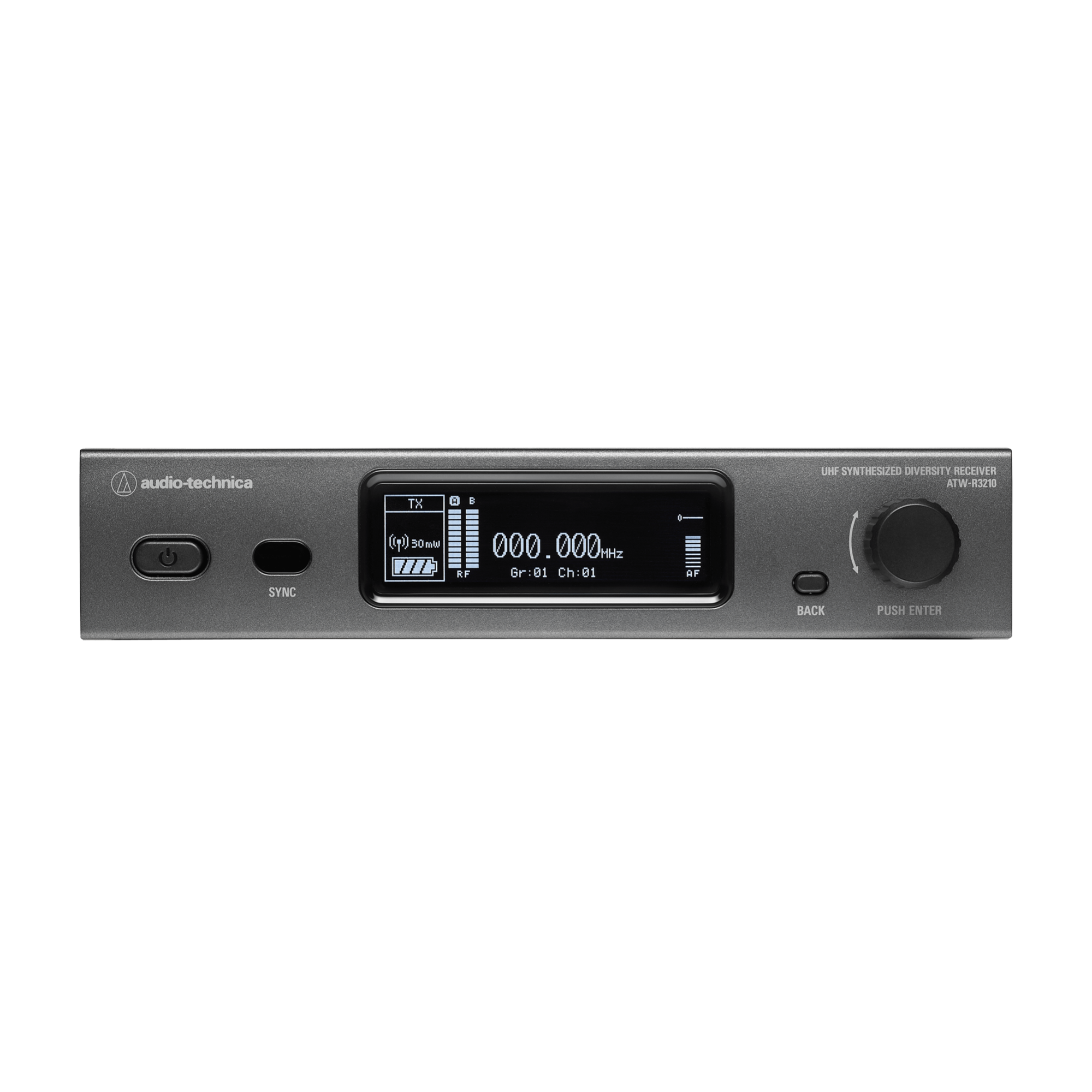

The Audio-Technica ATW-R3210 is a fourth-generation 3000 Series diversity receiver designed for professional wireless audio performance. This receiver offers an extremely wide 60 MHz UHF tuning bandwidth to ensure maximum versatility in increasingly congested RF environments.
The ATW-R3210 utilizes True Diversity operation to reduce signal dropouts and maintain consistent audio transmission. This technology ensures reliable performance by selecting the strongest signal between two independent receiver sections.
This receiver features OLED screens for optimal readout of key settings and system alerts. A dual-mode receiver display allows users to switch between a standard view and a performance view that highlights essential metering. For streamlined configuration, the unit includes frequency scan and IR sync functionality, which simplifies the setup process and ensures quick synchronization with transmitters.
The ATW-R3210 includes both balanced and unbalanced audio output jacks for flexible integration with various sound systems. It features a ground-lift switch to help eliminate audible hum caused by ground loops. Additionally, the unit provides antenna power to support powered antennas and other in-line RF devices, enhancing the overall range and reliability of the wireless system.
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz; Band EE1: 530.000 to 589.975 MHz; Band EF1: 590.000 to 649.975 MHz; Band FG1: 650.000 to 699.875 MHz; Band GH2: 794.100 to 805.900 MHz; Band HH2: 821.100 to 831.900 MHz and 863.100 |
| Minimum Frequency Step | 25 kHz |
| Modulation Mode | FM |
| Maximum Deviation | ATW-T3201: ±38 kHz (THD:10%); ATW-T3202: ±36 kHz (THD:10%) |
| Frequency Response | ATW-T3201: 31 Hz to 15500 Hz; ATW-T3202: 25 Hz to 16700 Hz |
| Operating Range | 100 m |
| Dynamic Range | ATW-T3201 Mic input: > 115 dB (A-weighted), typical; ATW-T3201 Inst input: > 112 dB (A-weighted), typical; ATW-T3202: > 115 dB (A-weighted), typical |
| Total Harmonic Distortion | <1.0% (at 1 kHz, ±17.5 kHz deviation) |
| Operating Temperature Range | -5 ºC to +45 ºC |
| Simultaneous Use | 40 Channels per band* (Region and band dependent). For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representative. |
| Receiver | |
| Receiving System | True Diversity |
| Sensitivity | 20 dBuV at 60 dBA S/N ratio (50Ω termination) |
| Maximum Output Level | XLR / Balanced: +14 dBV, 6.3 mm (¼") / Unbalanced: +8 dBV |
| Antenna Input | BNC-type, 50 Ω |
| Power Output | 12 V DC, 160 mA (combined) |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply |
| Dimensions | 210.0 mm x 191.0 mm x 43.4 mm (W x D x H) |
| Weight | 1100 g, without accessories |
| Accessories Included | Two flexible UHF antennas; AC adapter (country dependent); rack mount adaptors |
| Length | 13.07 In. |
|---|---|
| Width | 15.04 In. |
| Height | 3.03 In. |
| Weight | 4.85 lbs |
