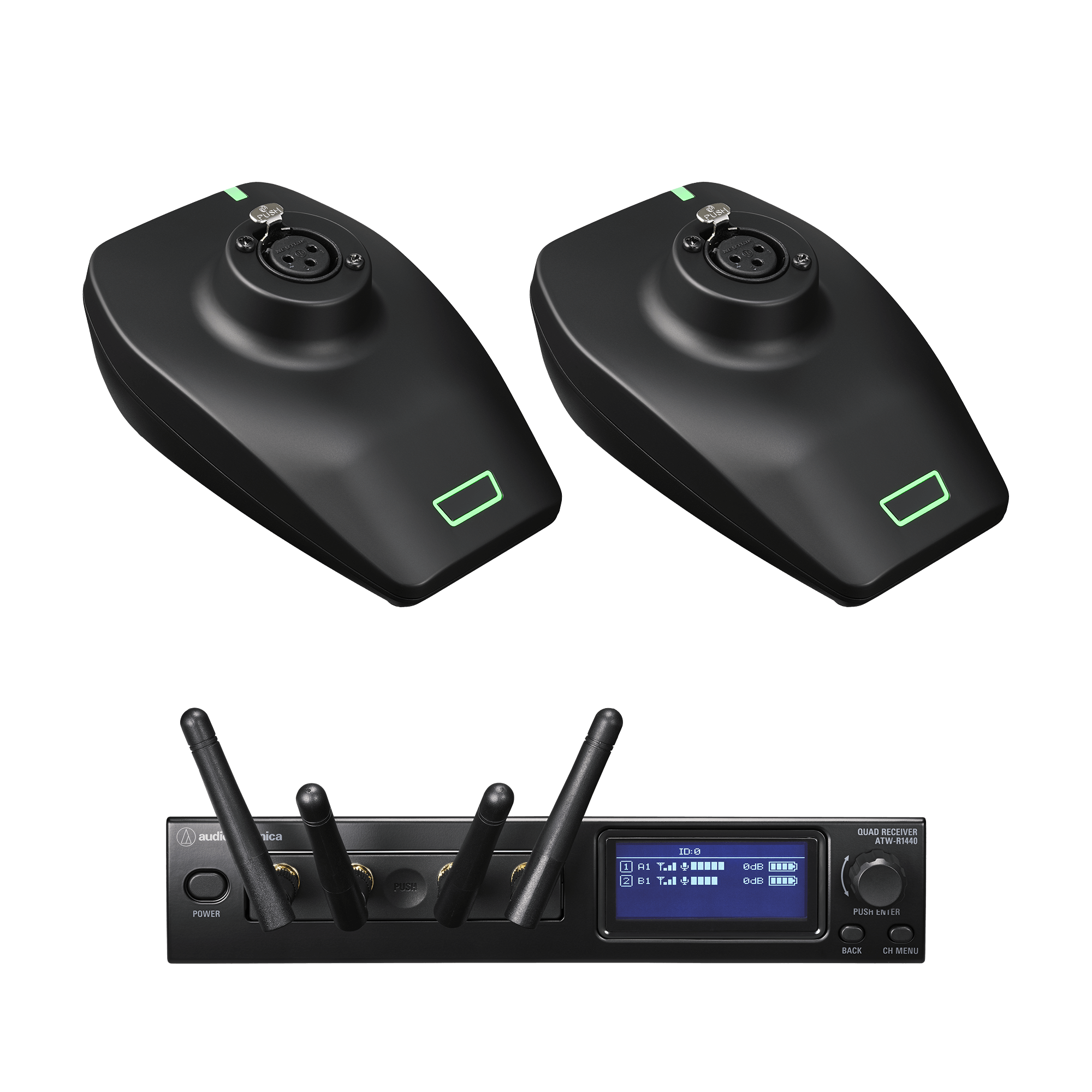

Audio-Technica ATW-1427 Dual Wireless Desk Stand Microphone System

The Audio-Technica ATW-1427 Dual Wireless Desk Stand Microphone System provides professional 24-bit/48 kHz digital wireless operation for high-quality audio performance. This System 20 Digital Wireless System operates in the 2.4 GHz range, ensuring a signal free from TV interference. The system includes one ATW-R1440 receiver chassis and two ATW-T1407 desk stand transmitters, offering a plug-and-play solution for various audio environments.

High-Fidelity Digital Wireless Operation

The ATW-1427 utilizes digital 24-bit/48 kHz wireless technology to deliver dependable performance and clear sound quality. Users can select between two operating modes to suit specific needs: Standard mode provides 10 channels with minimized latency, while HD mode supports up to 20 channels to maximize the total channel count. For secure communications, the system employs AES128 encryption.

Flexible Receiver and Chassis Configuration

The ATW-R1440 receiver chassis is designed for versatility in both local and remote setups. Receiver units can be docked directly in the half-rack chassis or mounted remotely up to 328 feet away using an Ethernet cable. This flexibility allows for optimal antenna placement and signal reception. For larger installations, up to five chassis can be linked and operated simultaneously. The system includes short and long rack ears, which can also be used as a joining plate to secure two chassis in a single rack space.

Intelligent Management and Monitoring

The ATW-1427 system integrates with Audio-Technica’s Wireless Manager software, enabling centralized management of settings and operations. Users can configure, monitor, and save device settings as projects within the software. The system also supports the Syslog protocol for advanced data logging.

Visual Feedback and Controls

• System ID Display: The chassis displays critical information including RF signal levels, system ID, transmitter battery status, and link status.
• OLED Screens: Both transmitters and receivers feature OLED screens for clear readouts of key settings and system alerts.
• Auto-Lock Function: This feature prevents accidental power-offs or unintended channel selection changes during operation.

Versatile Transmitter Integration

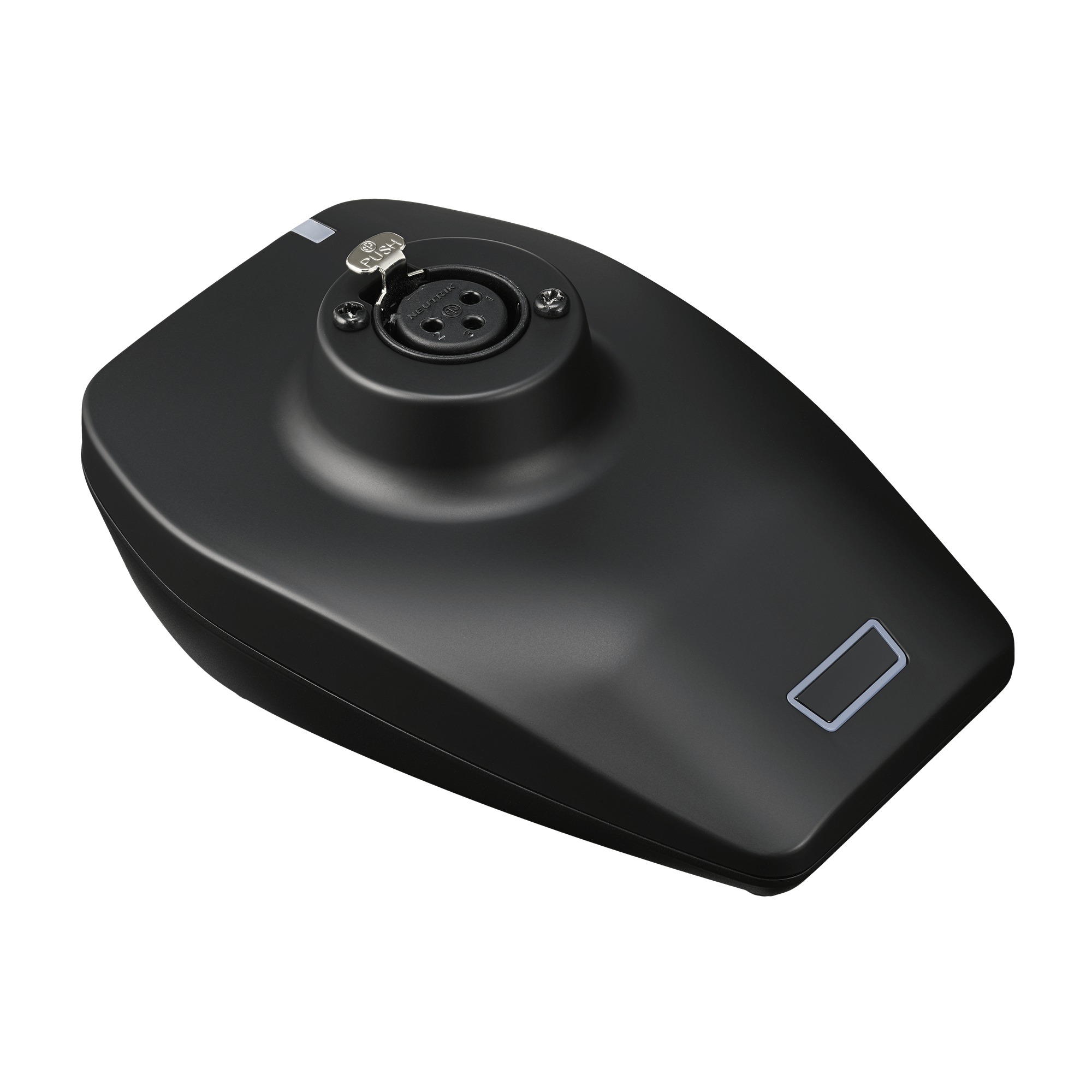

Each receiver channel can pair with up to four transmitters, allowing for rapid switching between different configurations. The included ATW-T1407 desk stand transmitters provide a stable boundary microphone solution. For systems utilizing body-pack transmitters, the system supports water- and sweat-resistant cW-style locking 4-pin connectors. Additionally, the system supports mixed output for use cases where input channels are limited. Transmitters are compatible with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks for recharging NiMH batteries via integrated charging terminals.
