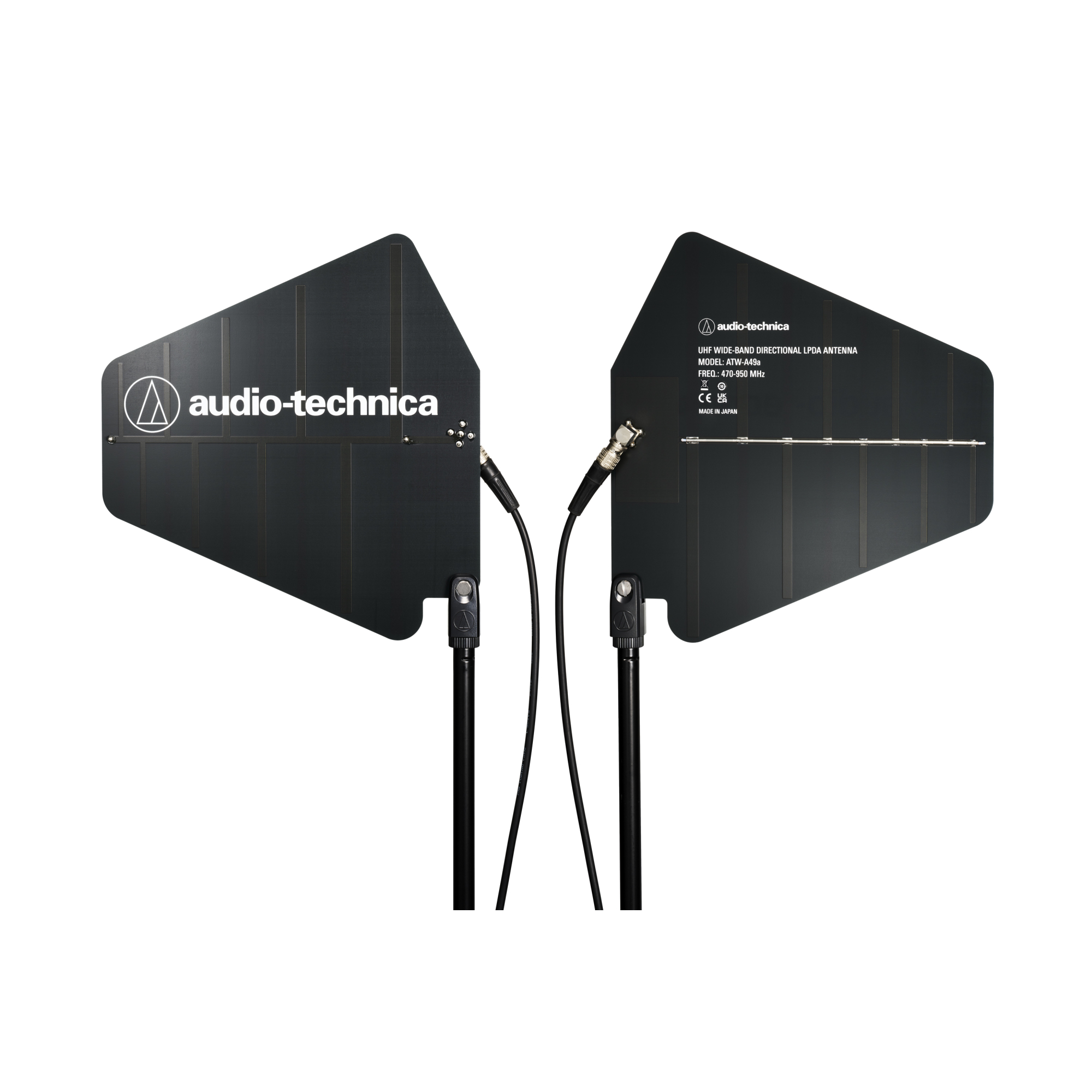

The Audio-Technica ATW-A49A Directional UHF LPDA Antenna Pair operates across a 470–950 MHz range with 6 dB gain and 50-ohm impedance, featuring low-loss BNC connectors and 5/8"-27 thread mounts for versatile UHF wireless system use.
The Audio-Technica ATW-A49A Directional UHF LPDA Antenna Pair is a wideband log periodic dipole array system designed to enhance signal pickup for UHF wireless systems. Operating throughout a broad frequency range of 470 to 950 MHz, these antennas improve signal strength and reliability for professional audio environments.
Each antenna paddle in the ATW-A49A set provides a typical gain of 6 dBi, which boosts the incoming signal for more stable wireless operation. The antennas are matched to 50 ohms impedance to ensure technical consistency with standard wireless hardware. To maintain signal integrity, each paddle is equipped with a high-quality, low-loss BNC connector that minimizes attenuation between the antenna and the receiver.
The ATW-A49A supports both permanent and temporary installation requirements. Each unit features an integral 5/8"-27 female thread for mounting on standard microphone stands or specialized antenna brackets. Audio-Technica includes a 5/8"-27 to 3/8"-16 adapter with each pair to expand compatibility with various mounting hardware and support structures.
These directional LPDA antennas focus reception on the desired signal source while reducing interference from unwanted directions. This specific pickup pattern makes the ATW-A49A an effective solution for maintaining clear communication in complex RF environments, including live performance stages, broadcast studios, and fixed venue installations. The wideband design allows for flexible use across a variety of UHF wireless frequency bands.
No specifications available for this product.
| Length | 13.1496062992126 In. |
|---|---|
| Width | 10.94488188976378 In. |
| Height | 2.5590551181102366 In. |
| Weight | 2.1294449904437323 lbs |
