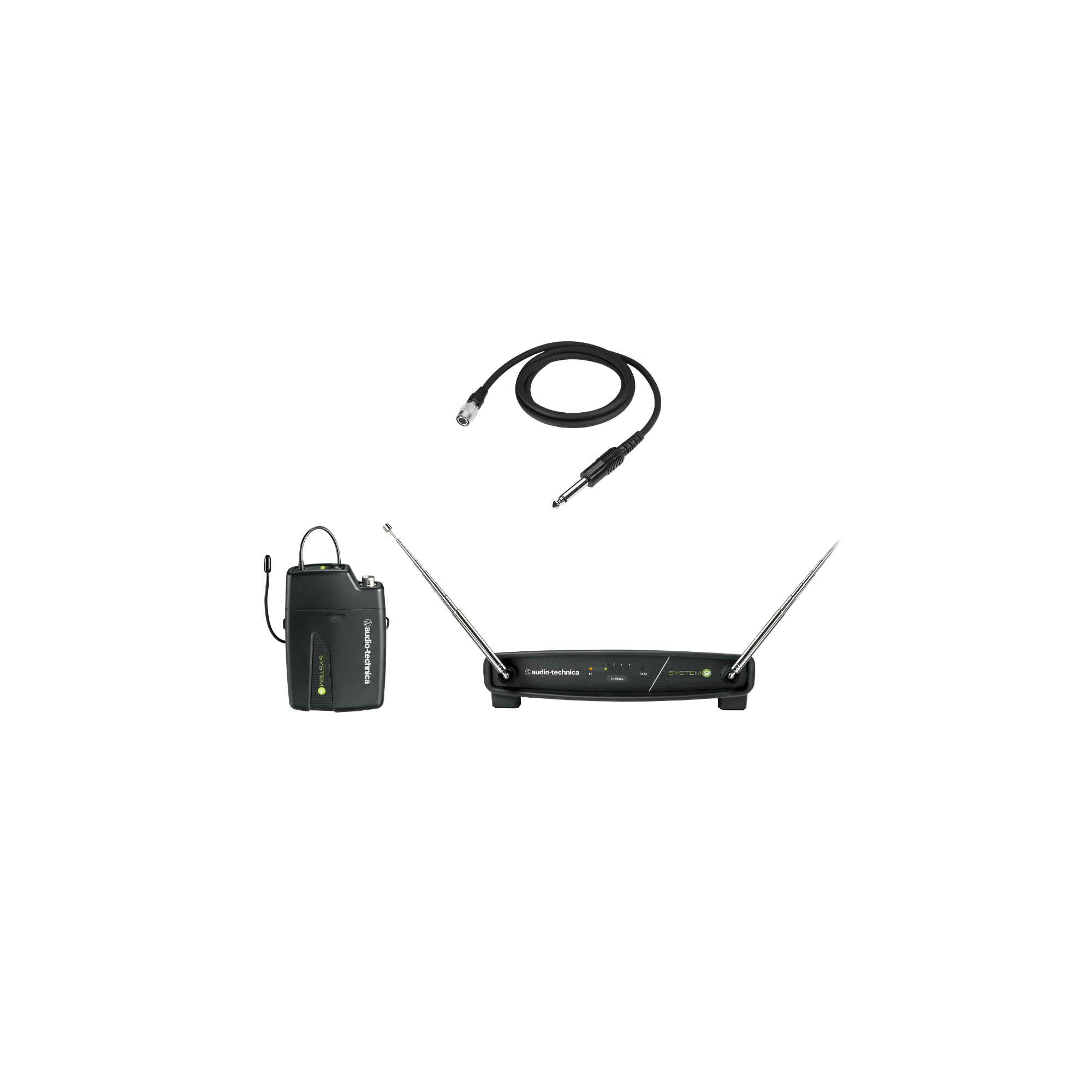

The Audio-Technica ATW-901A/G System 9 Guitar Wireless System includes an ATW-R900a receiver and an ATW-901a body-pack transmitter with an AT-GcW guitar/instrument input cable.
The Audio-Technica ATW-901A/G System 9 Guitar Wireless System provides a complete wireless solution designed for guitarists and instrumentalists. This system facilitates professional-grade wireless signal transmission, allowing performers to operate without the constraints of traditional instrument cables while maintaining signal integrity.
The ATW-901A/G configuration includes essential hardware to establish a reliable wireless connection between the instrument and the audio destination.
The ATW-R900a receiver serves as the central hub of the System 9 wireless setup. It captures the wireless signal from the transmitter to ensure consistent audio delivery to an amplifier, mixer, or recording interface.
The ATW-901a body-pack transmitter is a compact unit designed for the performer to wear. This component captures the output from the connected instrument and transmits it wirelessly to the ATW-R900a receiver.
The system features the AT-GcW guitar/instrument input cable to facilitate the connection between the musical instrument and the wireless hardware. This cable connects the instrument's output directly to the ATW-901a body-pack transmitter, completing the signal chain for wireless operation.
| Operating Frequencies | VHF highband, 169 MHz to 172 MHz |
| Modulation Mode | FM |
| Maximum Deviation | +/-10 kHz |
| Frequency Response | 80 Hz to 13 kHz |
| Operating Range | 200' (60 m) typical; Open range environment with no interfering signals |
| Total Harmonic Distortion | <1% (at 1 kHz, +/-10 kHz deviation) |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C); Battery performance may be reduced at very low temperatures |
| Notes | First-generation System 9 (original) components: ATW-R900 receiver; ATW-T901 body-pack transmitter; ATW-T902 unidirectional dynamic microphone transmitter; Click here for the original System 9 Owner's Manual. |
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA not included |
| Battery Life | 8 hours (alkaline); Depending on battery type and use pattern |
| Dimensions | 9.91" (251.8 mm) long, 2.11" (53.5 mm) diameter |
| Net Weight | 9.2 oz (260 grams) without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| RF Power Output | 10 mW |
| Battery Life | 8 hours (alkaline); Depending on battery type and use pattern |
| Battery Type | Two 1.5V AA not included |
| Dimensions | 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D |
| Input Connections | Four-pin Locking Connector; Pin 1: GND; Pin 2: INST INPUT; Pin 3: MIC INPUT; Pin 4: DC BIAS +9V |
| Net Weight | 2.8 oz (80.0 grams) without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiving System | Non-diversity, single-channel, dual antenna system |
| Image Rejection | 50 dB minimum |
| RF Sensitivity | 20 dBuV at 60 dB S/N ratio (50 ohms termination) |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| Dimensions | 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D |
| Weight | 12.0 oz (337 grams) |
| Accessories Included | Power supply |
| Audio Output | Nominal Output Level XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load); 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) |
| Length | 10.67 In. |
|---|---|
| Width | 13.7 In. |
| Height | 4.02 In. |
| Weight | 2.58 lbs |
