Audio-Technica ATW-3211N 3000 Series Wireless Body-pack System (Network-Enabled)

The Audio-Technica ATW-3211N 3000 Series Wireless Body-pack System (Network-Enabled) delivers a professional wireless audio solution designed for versatility and reliability. This system integrates network capabilities to enhance monitoring and control in various production settings.

System Components

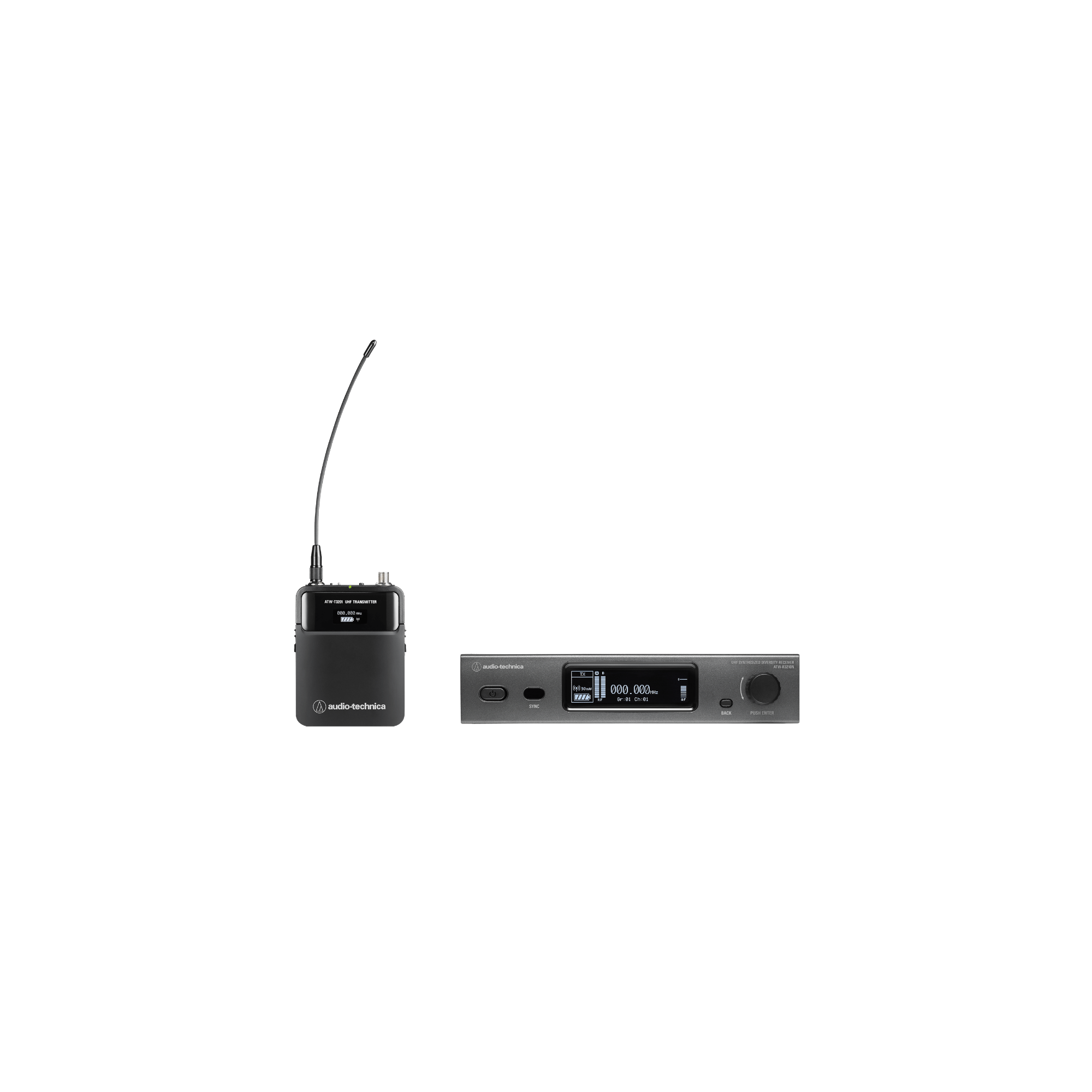

The ATW-3211N configuration consists of the ATW-R3210N network-enabled receiver and the ATW-T3201 body-pack transmitter. The ATW-R3210N receiver enables network connectivity for streamlined system management and frequency coordination. The ATW-T3201 body-pack transmitter provides a secure and compact interface for high-quality audio input.

Connectivity and Integration

The ATW-T3201 body-pack transmitter utilizes a cH-style screw-down 4-pin connector. Operation requires the addition of a microphone or cable equipped with a matching cH-style screw-down 4-pin connector to complete the system. This specific connection type ensures a stable and secure link between the audio source and the transmitter, preventing accidental disconnections during use.

Compatibility and Accessories

This wireless system supports integration with various hardware through optional accessories. The AT-cWcH Adapter Cable, available separately, allows wireless microphones featuring a cW-style locking 4-pin connector to interface with the cH-style screw-down 4-pin transmitter. This compatibility provides flexibility for users utilizing different Audio-Technica connector standards within their existing equipment inventory.

Operating Frequencies	UHF Band D: 656.125 to 678.500 MHz, Band I: 487.125 to 506.500 MHz, Band S: 508.125 - 526.825 MHz
Modulation Mode	FM
Maximum Deviation	±40 kHz
Frequency Response	100 Hz to 15 kHz (+1 dB, -3 dB)
Operating Range	100 m (300'), typical - Open range environment with no interfering signals.
Total Harmonic Distortion	< 1% (at 1 kHz, ±20 kHz deviation)
Operating Temperature Range	5º C to 45º C, 41º F to 113º F, Battery and LCD performance may be reduced at very low temperatures.
Number Of Channels	10 total
Handheld Transmitter
RF Power Output	High: 30 mW; Low: 10 mW (switchable), at 50 ohms
Spurious Emissions	Following federal and national regulations
Microphone Element	Dynamic cardioid
Battery Type	Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
Recharging Power for NiMH Batteries (with ATW-CHG2)	U.S./Canada/Latin America: 3.2 V DC, 230 mA x2; Other world areas: 3.2 V DC, 320 mA x2
Battery Life	High: 7 hours (alkaline); Low: 9 hours (alkaline). Depending on battery type and use pattern.
Dimensions	232.0 mm (9.13") long, 48.0 mm (1.89") diameter
Net Weight	252 g (8.9 oz), without batteries
Accessories Included	AT8456a Quiet-Flex™ stand clamp
Body Pack
RF Power Output	High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life	High: 7 hours (alkaline); Low: 9 hours (alkaline). Depending on battery type and use pattern.
Battery Type	Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
Recharging Power for NiMH Batteries (with ATW-CHG2)	U.S./Canada/Latin America: 3.2 V DC, 230 mA x2; Other world areas: 3.2 V DC, 320 mA x2
Dimensions	66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
Input Connections	Four-pin Locking Connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight	81 g (2.9 oz), without batteries
Spurious Emissions	Following federal and national regulations
Receiver
Receiving System	True diversity
Image Rejection	60 dB nominal, 55 dB minimum
RF Sensitivity	20 dBuV at 60 dB S/N ratio (50 ohms termination)
Maximum Output Level	XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV
Antenna Input	BNC-type, 50 ohms, Bias voltage 12V DC, 60 mA, each
Power Requirements	12-18V DC, 500 mA
Dimensions	210.0 mm (8.27") W x 162.2 mm (6.39") D x 44.0 mm (1.73") H. Not including BNC connectors or feet.
Weight	1.0 kg (35.3 oz), without accessories
Accessories Included	Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
Audio Output Attenuator (ATTN)	Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
