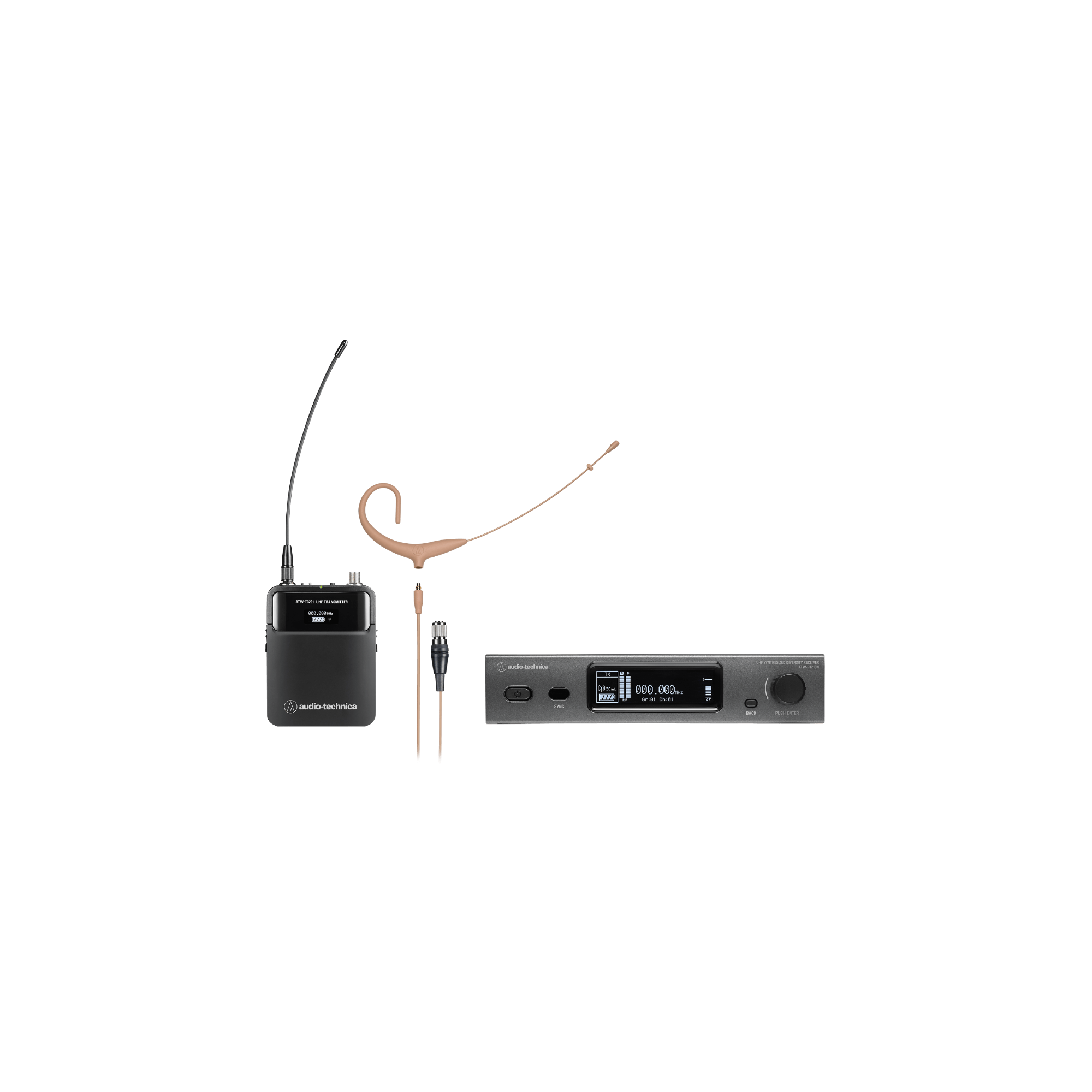

Audio-Technica ATW-3211/892XT 3000 Series Wireless Headworn Microphone System

Professional Wireless Audio Performance

The Audio-Technica ATW-3211/892XT 3000 Series Wireless Headworn Microphone System provides a high-quality audio solution for presenters and performers requiring hands-free operation. This system facilitates clear vocal reproduction through a streamlined wireless connection, ensuring mobility and professional sound delivery in diverse environments.

System Components

ATW-R3210 Receiver

The ATW-R3210 receiver serves as the central hub of the 3000 Series system, capturing wireless signals to maintain a stable audio output for professional applications.

ATW-T3201 Body-pack Transmitter

The ATW-T3201 body-pack transmitter connects the headworn microphone to the receiver. Its design allows for convenient and secure attachment to the user, facilitating wireless freedom during performances or presentations.

BP892xcH-TH MicroSet Microphone

This system features the BP892xcH-TH MicroSet, a beige omnidirectional condenser headworn microphone. The omnidirectional polar pattern ensures uniform sensitivity, capturing natural sound and providing consistent audio quality regardless of the user's head movement.

Included Accessories

The Audio-Technica ATW-3211/892XT system includes several essential components to optimize performance and fit:

Element covers protect the microphone capsule from debris and moisture.
Windscreens reduce noise caused by wind and vocal plosives.
A clothing clip secures the microphone cable to the user's attire for better cable management.
A dual-ear adapter kit provides additional mounting options to enhance stability during active use.

Operating Frequencies	UHF Band D: 656.125 to 678.500 MHz, Band I: 487.125 to 506.500 MHz, Band S: 508.125 - 526.825 MHz
Modulation Mode	FM
Maximum Deviation	±40 kHz
Frequency Response	100 Hz to 15 kHz (+1 dB, -3 dB)
Operating Range	100 m (300'), typical - Open range environment with no interfering signals.
Total Harmonic Distortion	< 1% (at 1 kHz, ±20 kHz deviation)
Operating Temperature Range	5º C to 45º C, 41º F to 113º F, Battery and LCD performance may be reduced at very low temperatures.
Number Of Channels	10 total
Handheld Transmitter
RF Power Output	High: 30 mW; Low: 10 mW (switchable), at 50 ohms
Spurious Emissions	Following federal and national regulations
Microphone Element	Dynamic cardioid
Battery Type	Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
Recharging Power for NiMH Batteries (with ATW-CHG2)	U.S./Canada/Latin America: 3.2 V DC, 230 mA x2; Other world areas: 3.2 V DC, 320 mA x2
Battery Life	High: 7 hours (alkaline); Low: 9 hours (alkaline). Depending on battery type and use pattern.
Dimensions	232.0 mm (9.13") long, 48.0 mm (1.89") diameter
Net Weight	252 g (8.9 oz), without batteries
Accessories Included	AT8456a Quiet-Flex™ stand clamp
Body Pack
RF Power Output	High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life	High: 7 hours (alkaline); Low: 9 hours (alkaline). Depending on battery type and use pattern.
Battery Type	Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
Recharging Power for NiMH Batteries (with ATW-CHG2)	U.S./Canada/Latin America: 3.2 V DC, 230 mA x2; Other world areas: 3.2 V DC, 320 mA x2
Dimensions	66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
Input Connections	Four-pin Locking Connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight	81 g (2.9 oz), without batteries
Spurious Emissions	Following federal and national regulations
Receiver
Receiving System	True diversity
Image Rejection	60 dB nominal, 55 dB minimum
RF Sensitivity	20 dBuV at 60 dB S/N ratio (50 ohms termination)
Maximum Output Level	XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV
Antenna Input	BNC-type, 50 ohms, Bias voltage 12V DC, 60 mA, each
Power Requirements	12-18V DC, 500 mA
Dimensions	210.0 mm (8.27") W x 162.2 mm (6.39") D x 44.0 mm (1.73") H. Not including BNC connectors or feet.
Weight	1.0 kg (35.3 oz), without accessories
Accessories Included	Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
Audio Output Attenuator (ATTN)	Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
