Audio-Technica ATW-2192XCITH 2000 Series Wireless Headworn Microphone System

The Audio-Technica ATW-2192XCITH 2000 Series Wireless Headworn Microphone System delivers a comprehensive wireless audio solution for professional applications. This system integrates high-quality components to ensure reliable signal transmission and clear vocal reproduction.

System Components

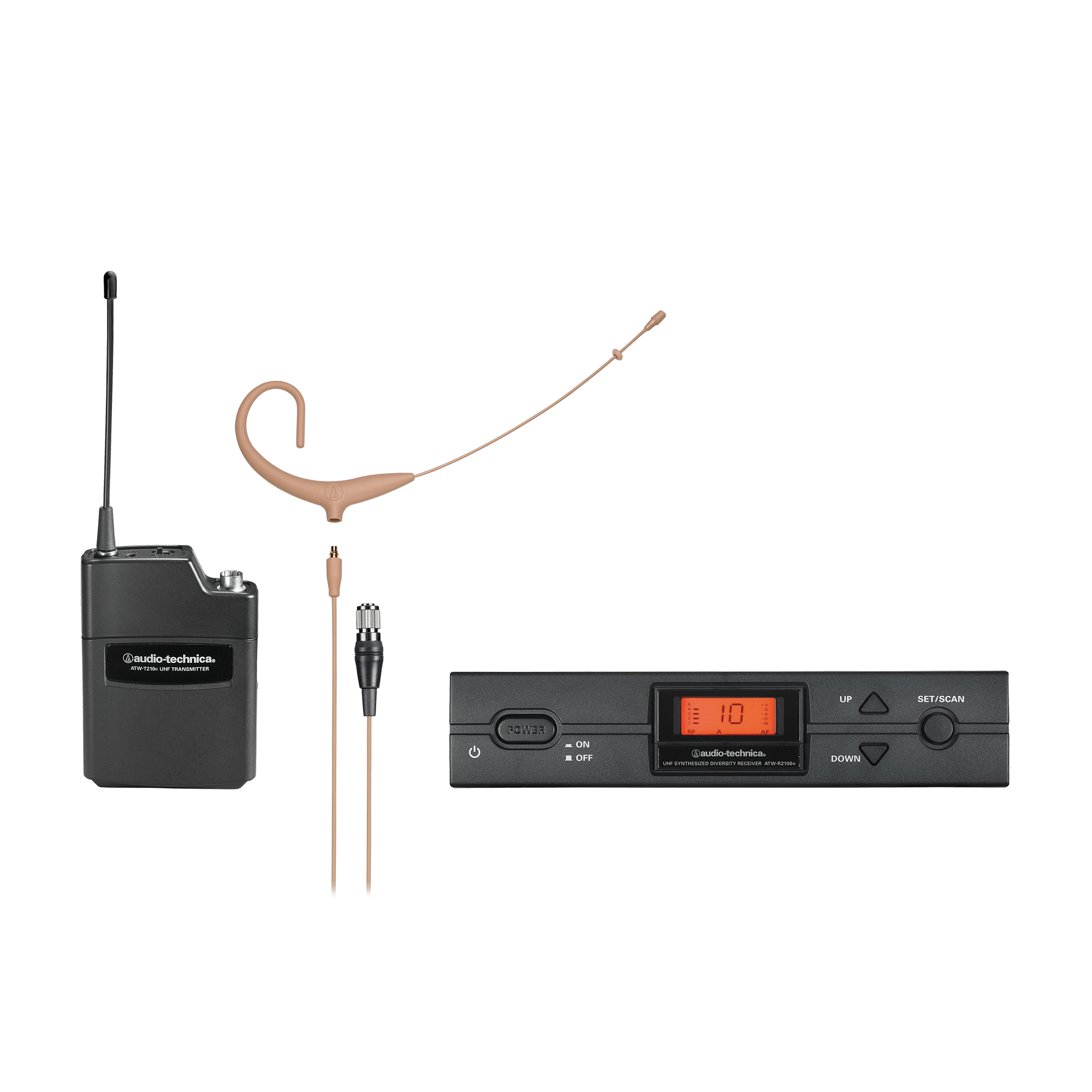

This package includes the ATW-R2100c receiver and the ATW-T210c body-pack transmitter. These components work in tandem to provide a stable wireless connection. The system also features the BP892xcW-TH MicroSet headworn microphone, which comes in a beige finish to offer a low-profile aesthetic during use.

Microphone Performance

The BP892xcW-TH is an omnidirectional condenser microphone. The omnidirectional polar pattern ensures consistent sound pickup regardless of the microphone's position relative to the sound source. Its headworn design facilitates hands-free operation, making it suitable for presenters, performers, and public speakers who require mobility.

Included Accessories

The ATW-2192XCITH system includes several essential accessories to optimize performance and user comfort:

Element covers: Protect the microphone capsule during operation.
Windscreens: Reduce unwanted wind and breath noise for clearer audio capture.
Clothing clip: Secures the microphone cable to the user's clothing to prevent interference.
Dual-ear adapter kit: Provides an alternative mounting configuration for increased stability and a secure fit.

Operating Frequencies	UHF Band D: 656.125 to 678.500 MHz, Band I: 487.125 to 506.500 MHz, Band S: 508.125 - 526.825 MHz
Modulation Mode	FM
Maximum Deviation	±40 kHz
Frequency Response	100 Hz to 15 kHz (+1 dB, -3 dB)
Operating Range	100 m (300'), typical - Open range environment with no interfering signals.
Total Harmonic Distortion	< 1% (at 1 kHz, ±20 kHz deviation)
Operating Temperature Range	5º C to 45º C, 41º F to 113º F, Battery and LCD performance may be reduced at very low temperatures.
Number Of Channels	10 total
Handheld Transmitter
RF Power Output	High: 30 mW; Low: 10 mW (switchable), at 50 ohms
Spurious Emissions	Following federal and national regulations
Microphone Element	Dynamic cardioid
Battery Type	Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
Recharging Power for NiMH Batteries (with ATW-CHG2)	U.S./Canada/Latin America: 3.2 V DC, 230 mA x2; Other world areas: 3.2 V DC, 320 mA x2
Battery Life	High: 7 hours (alkaline); Low: 9 hours (alkaline). Depending on battery type and use pattern.
Dimensions	232.0 mm (9.13") long, 48.0 mm (1.89") diameter
Net Weight	252 g (8.9 oz), without batteries
Accessories Included	AT8456a Quiet-Flex™ stand clamp
Body Pack
RF Power Output	High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life	High: 7 hours (alkaline); Low: 9 hours (alkaline). Depending on battery type and use pattern.
Battery Type	Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
Recharging Power for NiMH Batteries (with ATW-CHG2)	U.S./Canada/Latin America: 3.2 V DC, 230 mA x2; Other world areas: 3.2 V DC, 320 mA x2
Dimensions	66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
Input Connections	Four-pin Locking Connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight	81 g (2.9 oz), without batteries
Spurious Emissions	Following federal and national regulations
Receiver
Receiving System	True diversity
Image Rejection	60 dB nominal, 55 dB minimum
RF Sensitivity	20 dBuV at 60 dB S/N ratio (50 ohms termination)
Maximum Output Level	XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV
Antenna Input	BNC-type, 50 ohms, Bias voltage 12V DC, 60 mA, each
Power Requirements	12-18V DC, 500 mA
Dimensions	210.0 mm (8.27") W x 162.2 mm (6.39") D x 44.0 mm (1.73") H. Not including BNC connectors or feet.
Weight	1.0 kg (35.3 oz), without accessories
Accessories Included	Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
Audio Output Attenuator (ATTN)	Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
