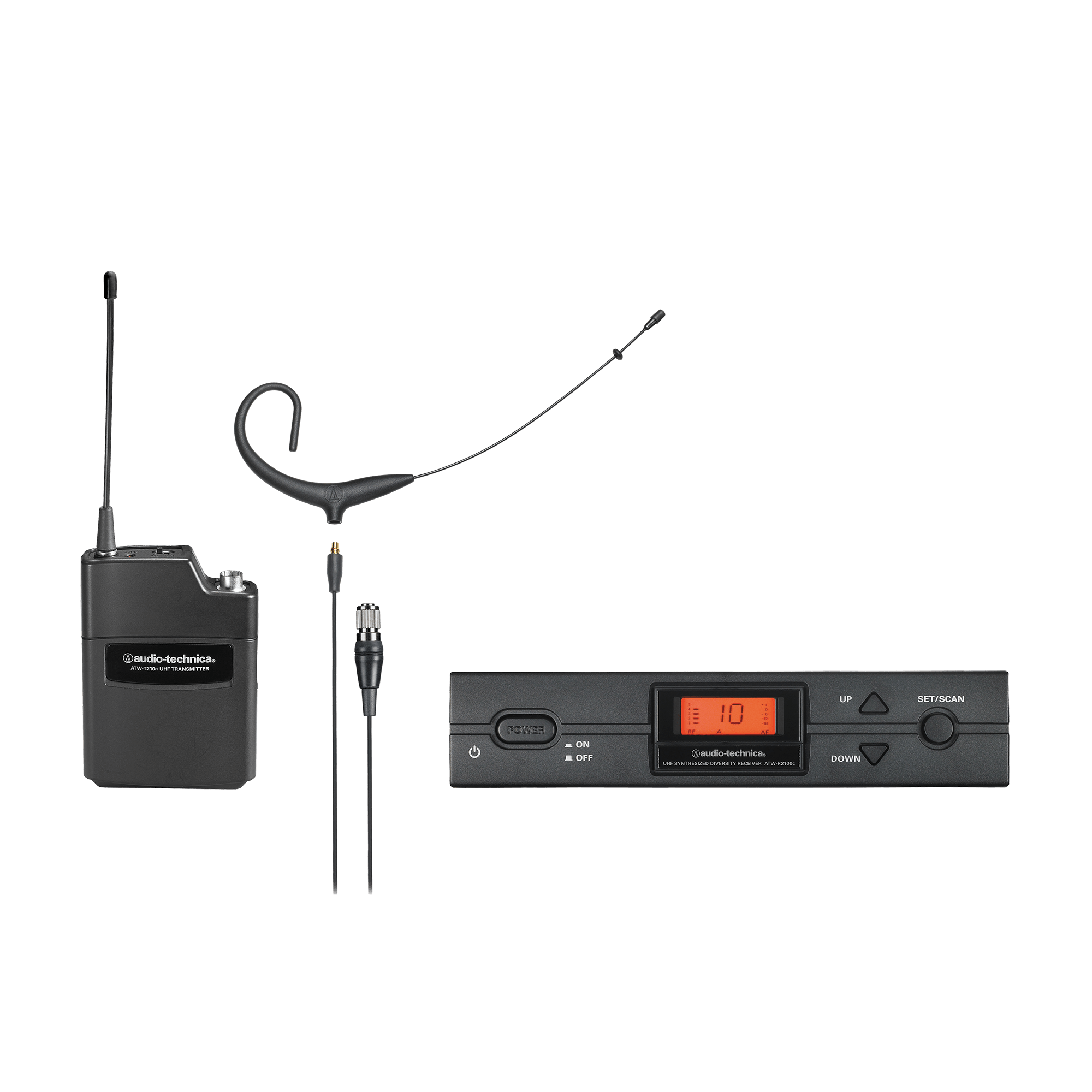

The Audio-Technica ATW-2192XC 2000 Series Wireless Headworn Microphone System provides a complete wireless audio solution featuring a receiver, body-pack transmitter, and a MicroSet omnidirectional condenser headworn microphone.
The Audio-Technica ATW-2192XC 2000 Series Wireless Headworn Microphone System delivers professional wireless audio performance through a coordinated set of high-quality components. This system facilitates clear vocal reproduction for various presentation and performance environments by combining reliable signal transmission with a low-profile microphone design.
The system centers on two primary hardware units that manage signal processing and transmission. The ATW-R2100c receiver serves as the stationary hub for the system, while the ATW-T210c body-pack transmitter provides the mobile interface for the user. These components work together to maintain a stable wireless connection throughout operation.
The Audio-Technica ATW-2192XC includes the BP892xcW MicroSet headworn microphone. This microphone utilizes an omnidirectional condenser element to capture sound consistently from all directions. The MicroSet design ensures a secure fit while remaining unobtrusive during use, making it suitable for speakers and performers who require mobility.
This wireless system includes a variety of accessories to enhance functionality and protect the hardware. The dual-ear adapter kit allows users to modify the wearing style for increased stability. For audio clarity and maintenance, the package provides windscreens to reduce environmental noise and element covers to shield the microphone. A clothing clip is also included to manage cable routing and secure the transmitter connection.
| Operating Frequencies | UHF Band D: 656.125 to 678.500 MHz, Band I: 487.125 to 506.500 MHz, Band S: 508.125 - 526.825 MHz |
| Modulation Mode | FM |
| Maximum Deviation | ±40 kHz |
| Frequency Response | 100 Hz to 15 kHz (+1 dB, -3 dB) |
| Operating Range | 100 m (300'), typical - Open range environment with no interfering signals. |
| Total Harmonic Distortion | < 1% (at 1 kHz, ±20 kHz deviation) |
| Operating Temperature Range | 5º C to 45º C, 41º F to 113º F, Battery and LCD performance may be reduced at very low temperatures. |
| Number Of Channels | 10 total |
| Handheld Transmitter | |
| RF Power Output | High: 30 mW; Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions | Following federal and national regulations |
| Microphone Element | Dynamic cardioid |
| Battery Type | Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) |
| Recharging Power for NiMH Batteries (with ATW-CHG2) | U.S./Canada/Latin America: 3.2 V DC, 230 mA x2; Other world areas: 3.2 V DC, 320 mA x2 |
| Battery Life | High: 7 hours (alkaline); Low: 9 hours (alkaline). Depending on battery type and use pattern. |
| Dimensions | 232.0 mm (9.13") long, 48.0 mm (1.89") diameter |
| Net Weight | 252 g (8.9 oz), without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| Body Pack | |
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Battery Life | High: 7 hours (alkaline); Low: 9 hours (alkaline). Depending on battery type and use pattern. |
| Battery Type | Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) |
| Recharging Power for NiMH Batteries (with ATW-CHG2) | U.S./Canada/Latin America: 3.2 V DC, 230 mA x2; Other world areas: 3.2 V DC, 320 mA x2 |
| Dimensions | 66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H |
| Input Connections | Four-pin Locking Connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Net Weight | 81 g (2.9 oz), without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiver | |
| Receiving System | True diversity |
| Image Rejection | 60 dB nominal, 55 dB minimum |
| RF Sensitivity | 20 dBuV at 60 dB S/N ratio (50 ohms termination) |
| Maximum Output Level | XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV |
| Antenna Input | BNC-type, 50 ohms, Bias voltage 12V DC, 60 mA, each |
| Power Requirements | 12-18V DC, 500 mA |
| Dimensions | 210.0 mm (8.27") W x 162.2 mm (6.39") D x 44.0 mm (1.73") H. Not including BNC connectors or feet. |
| Weight | 1.0 kg (35.3 oz), without accessories |
| Accessories Included | Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters |
| Audio Output Attenuator (ATTN) | Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB |
| Length | 15.75 In. |
|---|---|
| Width | 13.78 In. |
| Height | 3.94 In. |
| Weight | 4.71 lbs |
