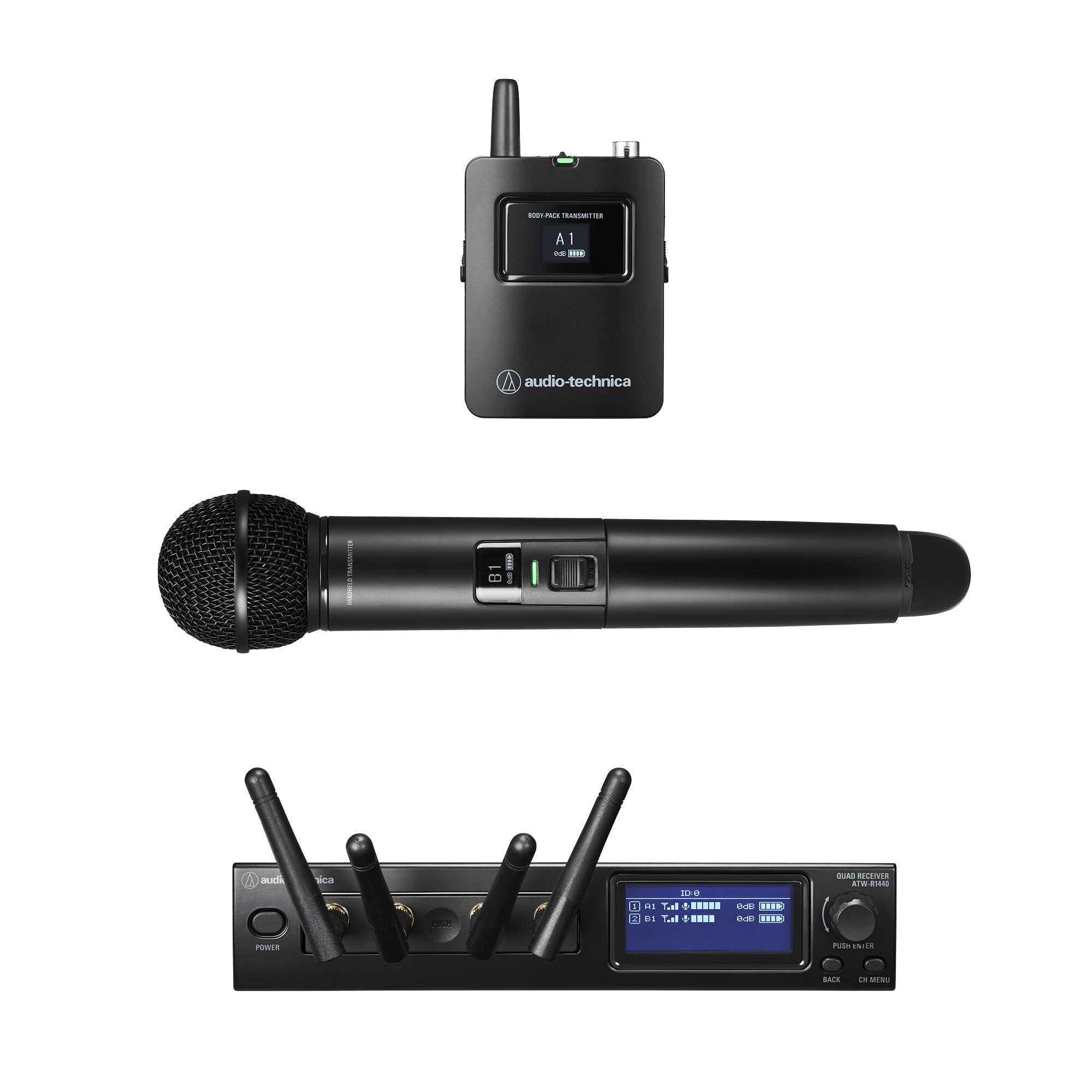

The Audio-Technica ATW-1423 System 20 PRO Combo Wireless System includes the ATW-R1440 rack-mount receiver chassis, an ATW-RU14 receiver unit, four 2.4 GHz antennas, an AC adapter, rackmount or joining plate adaptors, an ATW-T1401 body-pack transmitter, and an ATW-1402 handheld transmitter.
The Audio-Technica ATW-1423 System 20 PRO Combo Wireless System provides high-quality digital 24-bit/48 kHz wireless operation for dependable performance in professional environments. This system operates in the 2.4 GHz range, ensuring it remains completely free from TV interference. It features a versatile configuration including the ATW-R1440 receiver chassis, the ATW-T1401 body-pack transmitter, and the ATW-T1402 handheld microphone transmitter.
Users can optimize the system for specific environments by switching between Standard and HD modes. Standard mode supports 10 channels to minimize latency, while HD mode allows for up to 20 channels to maximize the total channel count. The system supports the simultaneous use of up to five linked chassis, providing scalability for complex audio setups. For secure transmissions, the system utilizes AES128 encryption.
The ATW-R1440 receiver chassis provides flexible installation options for various venues. Receiver units can be docked directly in the chassis or mounted remotely up to 328 feet away via Ethernet cable. The chassis includes a System ID Display that provides real-time monitoring of important metrics:
The ATW-1423 system allows each receiver channel to pair with up to four transmitters, enabling users to switch between different transmitter configurations instantly. Both the handheld and body-pack transmitters feature OLED screens for clear readouts of key settings and alerts.
The Audio-Technica ATW-1423 is compatible with Wireless Manager software, allowing for centralized management of system settings and operations. This software enables users to configure, monitor, and save device settings as individual projects. The system also supports the Syslog protocol for advanced monitoring. To prevent accidental power-off or unintended channel changes, the hardware includes an auto-lock function. In scenarios where input channels are limited, the system supports mixed output to streamline audio routing.
| Operating Frequencies | 2,402 to 2,480 MHz |
| Dynamic Range | 120 dB (A-weighted), typical |
| Total Harmonic Distortion | < 0.05%, typical |
| Maximum Simultaneous Use (recommended) | Standard: 10 channels; HD mode: 20 channels; It depends on the region and environment. |
| System Frequency Response | 20 to 20,000 Hz; Varies depending on the microphone to be installed. |
| Delay | Standard: 2.8ms; HD mode: 6.7ms |
| Audio Sampling Rate | Standard: 24-bit/48 kHz; HD mode: 24-bit/48 kHz |
| Encryption Method | AES128 |
| Receiver & Transmitter Specifications | ATW-R1440; ATW-RC14 |
| External Receiver Unit Port | RJ45 |
| NETWORK Port | RJ45: Fast Ethernet |
| LINK IN/OUT Port | RJ12 |
| Output Level | LINE max: +22 dBu (+20 dBV); LINE Unity: -20 Bu (-22 dBV); MIC max: -12 dBu (-10 dBV); MIC Unity: -50 dBu (-52 dBV) |
| Power Consumption | 3.7W |
| Power Supply | 12 V DC, 0.5 A (AC adapter) |
| Operating Temperature Range | 0ºC to +40ºC (32°F to 104°F) |
| Dimensions | 209.8 mm (8.3") × 165.6 mm (6.5") × 42.5 mm (1.7") (W × D × H) |
| Weight | 740 g (26 oz) |
| Included Accessories | AC adapter, AC adapter blade, short rack-mount adapter, long rackmount adapter, fixing screw × 5, link cable (30 cm [12"]), leg × 4 |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | 1/2 wave dipole antenna, true diversity |
| External Connection Port | RJ45 |
| Power Supply | 12 V DC (RC14) |
| Operating Temperature Range | 0ºC to +40ºC (32°F to 104°F) |
| Dimensions | 86.0 mm (3.4") × 70.2 mm (2.8") × 18.7 mm (0.74") (W × D × H) |
| Weight | 77 g (2.7 oz) |
| Included Accessory | Unit holder, holder cover, wood screws x 2, antenna x 4 |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Input Connection | Four pin locking connector; Pin 1: GND; Pin 2: INST INPUT; Pin 3: MIC INPUT; Pin 4: DC BIAS +10 V |
| Battery | 3 V DC (two 1.5 V AA) |
| Battery Life | AA alkaline batteries: Approx. 15 hours; AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes; AA lithium batteries: Approx. 29 hours; This varies depending on usage conditions. |
| Operating Temperature | 5ºC to +40ºC |
| Dimensions | 63.7 mm (2.5") × 22.7 mm (0.89") × 107.4 mm (4.2") (W × D × H) |
| Weight | 80g (2.8 oz), without batteries |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Microphone Type | Dynamic |
| Microphone Polar Pattern | Hypercardioid |
| Battery | 3 V DC (two 1.5 V AA) |
| Battery Life | Approx. 18 hours (alkaline); Approx. 16 hours 30 minutes (Ni-MH); Approx. 35 hours (lithium); This varies depending on usage conditions. |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 265.0 mm (10") × 53.7 mm (2.1") |
| Weight | 300 g (11 oz), without batteries |
| Included Accessories | Mic holder AT8456a, converting thread adapter (3/8" - 5/8") |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Maximum Input Sound Pressure Level | 139 dB SPL |
| Microphone Type | Condenser |
| Microphone Polar Pattern | Cardioid |
| Built-in Battery | 3.7V lithium-ion battery (5.5Wh, 1460mAh) |
| Battery Life | Approx. 12 hours; This varies depending on usage conditions. |
| Charging Time | Approx. 3 hours and 10 minutes; This varies depending on usage conditions. |
| USB Charging Port | USB Type-C (USB 2.0) |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 90.5 mm (3.6") × 129.4 mm (5.1") × 31.9 mm (1.3") (W × D × H) |
| Weight (with battery) | 510 g (18 oz), including battery |
| Included Accessories | USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9']) |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Microphone | Gooseneck microphone supported |
| Phantom Power Supply | DC24V |
| Built-in Battery | 3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh) |
| Battery Life | When using a gooseneck microphone with no LED: Approx. 12 hours; When using a gooseneck microphone with an LED: Approx. 8 hours; This varies depending on usage conditions. |
| Charging Time | Approx. 3 hours and 10 minutes; This varies depending on usage conditions. |
| USB Charging port | USB Type-C (USB 2.0) |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 90.5 mm (3.6") × 129.4 mm (5.1") × 47.6 mm (1.9") (W × D × H) |
| Weight | 490 g (17 oz), including battery |
| Included Accessories | USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9']) |
| Length | 12.2 In. |
|---|---|
| Width | 16.65 In. |
| Height | 4.09 In. |
| Weight | 5.73 lbs |
