The Audio-Technica ATW-1423/L Combo Lavalier Wireless System is a professional digital solution designed for high-quality audio transmission and reliable performance. Operating in the 2.4 GHz range, this system remains completely free from TV interference. It utilizes 24-bit/48 kHz digital wireless operation to ensure clear sound for diverse presentation and performance applications.
Versatile Wireless Operation
The ATW-1423/L offers flexible modes to suit different operational requirements. Users can switch between Standard mode, which provides 10 channels with minimized latency, and HD mode, which offers up to 20 channels to maximize the total channel count. For simplified setup, the system features plug-and-play operation.
Flexible Receiver and Transmitter Configuration

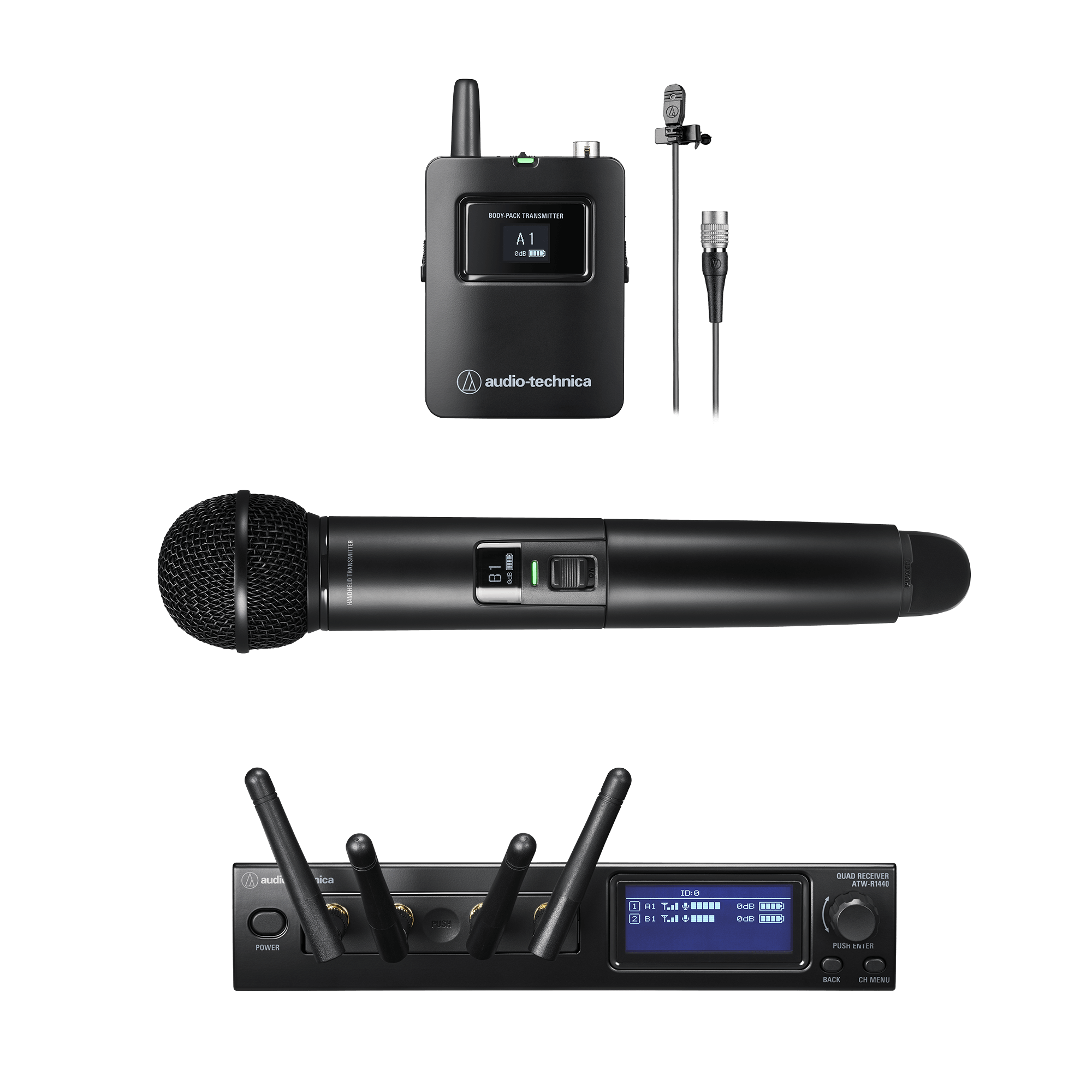

The system includes an ATW-R1440 receiver chassis, an ATW-T1402 handheld transmitter, and an ATW-T1401 body-pack transmitter paired with an MT830cW lavalier microphone.
Mounting and Scalability
- Receiver units can be docked directly in the chassis or mounted remotely up to 328 feet away using an Ethernet cable.
- Up to five chassis can be linked together and used simultaneously.
- Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a single rack space.
Transmitter Pairing and Management
- Each receiver channel can be paired with up to four transmitters, allowing users to switch between different transmitter configurations instantly.
- The ATW-T1401 body-pack transmitter features a water- and sweat-resistant cW-style locking 4-pin connector for secure microphone attachment.
- Both the handheld and body-pack transmitters include charging terminals for use with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries.
Advanced Monitoring and Security
The ATW-1423/L provides comprehensive tools for system management and signal protection.
System Visibility
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts.
- The chassis features a System ID Display that monitors RF signal levels, system ID, transmitter battery levels, and system link status.
- The system supports mixed output for environments with limited input channels.
Software and Security
- Compatibility with Audio-Technica’s Wireless Manager software allows for centralized management of system settings and operations.
- AES128 encryption protects the wireless signal for enhanced security.
- An auto-lock function prevents unintended operations, such as accidental power-offs or channel changes.
- The system is compatible with the Syslog protocol for advanced monitoring and data logging.
