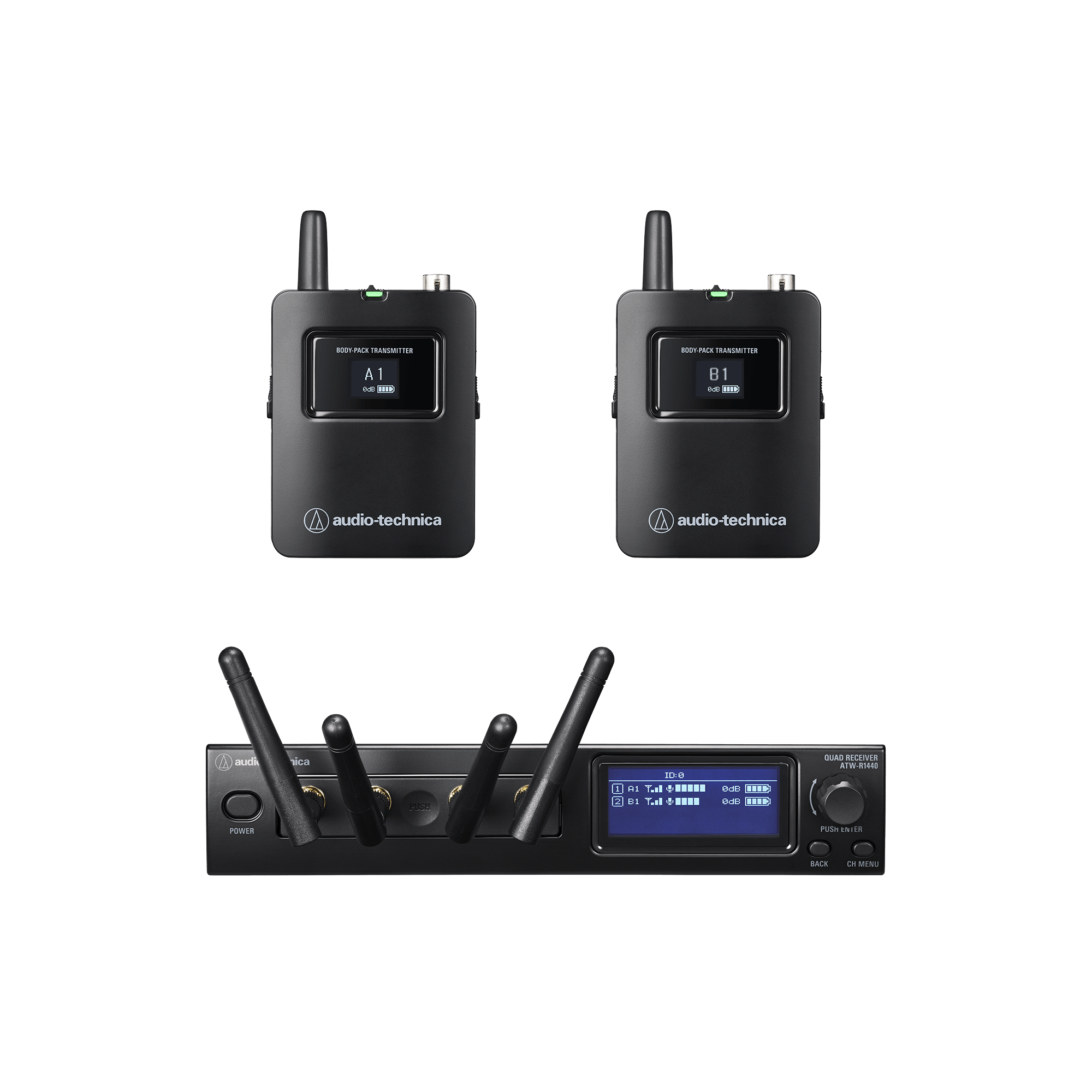

The Audio-Technica ATW-1421 System 20 PRO Dual Bodypack Wireless System includes an ATW-R1440 rack-mount receiver chassis, an ATW-RU14 receiver unit, four 2.4 GHz antennas, an AC adapter, rackmount/joining plate adaptors, and two ATW-T1401 body-pack transmitters.
The Audio-Technica ATW-1421 System 20 PRO Dual Bodypack Wireless System provides high-quality 24-bit/48 kHz digital wireless operation in the 2.4 GHz range. This system delivers dependable performance by operating completely free from TV interference. The ATW-1421 configuration includes the ATW-R1440 receiver chassis and two ATW-T1401 body-pack transmitters to support dual-channel wireless requirements.
This system offers plug-and-play operation with two specialized modes to suit different environment needs. Users can select Standard mode for 10-channel operation with minimized latency or HD mode to maximize the channel count to 20 channels. For secure transmissions, the system utilizes AES128 encryption and supports the Syslog protocol for comprehensive device logging.
The ATW-R1440 half-rack receiver chassis allows for flexible installation. The receiver units can be docked directly in the chassis or mounted remotely up to 328 feet away using an Ethernet cable. For larger deployments, up to five chassis can be linked and operated simultaneously. The chassis features a System ID Display that provides critical real-time data, including:
The ATW-T1401 body-pack transmitters feature water- and sweat-resistant cW-style locking 4-pin connectors. This design ensures a secure connection to compatible lavalier microphones, headworn microphones, and cables. Each transmitter includes an OLED screen for clear readouts of settings and alerts. To simplify workflows, each receiver channel can pair with up to four transmitters, allowing users to switch between different configurations instantly. The transmitters also feature integrated charging terminals compatible with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks for use with NiMH batteries.
The ATW-1421 is compatible with Audio-Technica’s Wireless Manager software, enabling centralized management of system settings and the ability to save device configurations as projects. An auto-lock function is included to prevent unintended power-offs or accidental changes to the channel selection. For setups with limited hardware, the system supports mixed output to consolidate audio signals.
| Operating Frequencies | 2,402 to 2,480 MHz |
| Dynamic Range | 120 dB (A-weighted), typical |
| Total Harmonic Distortion | < 0.05%, typical |
| Maximum Simultaneous Use (recommended) | Standard: 10 channels; HD mode: 20 channels — depends on region and environment |
| System Frequency Response | 20 to 20,000 Hz, varies depending on the microphone installed |
| Delay | Standard: 2.8ms; HD mode: 6.7ms |
| Audio Sampling Rate | Standard: 24-bit/48 kHz; HD mode: 24-bit/48 kHz |
| Encryption Method | AES128 |
| External Receiver Unit Port | RJ45 |
| NETWORK Port | RJ45, Fast Ethernet |
| LINK IN/OUT Port | RJ12 |
| Output Level | LINE max: +22 dBu (+20 dBV); LINE Unity: -20 dBu (-22 dBV); MIC max: -12 dBu (-10 dBV); MIC Unity: -50 dBu (-52 dBV) |
| Power Consumption | 3.7W |
| Power Supply | 12 V DC, 0.5 A (AC adapter) |
| Operating Temperature Range | 0ºC to +40ºC (32°F to 104°F) |
| Dimensions | 209.8 mm (8.3") × 165.6 mm (6.5") × 42.5 mm (1.7") (W × D × H) |
| Weight | 740 g (26 oz) |
| Included Accessories | AC adapter, AC adapter blade, short rack-mount adapter, long rack-mount adapter, fixing screw × 5, link cable (30 cm [12"]), leg × 4 |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | 1/2 wave dipole antenna, true diversity |
| External Connection Port | RJ45 |
| Power Supply | 12 V DC (RC14) |
| Operating Temperature Range | 0ºC to +40ºC (32°F to 104°F) |
| Dimensions | 86.0 mm (3.4") × 70.2 mm (2.8") × 18.7 mm (0.74") (W × D × H) |
| Weight | 77 g (2.7 oz) |
| Included Accessory | Unit holder, holder cover, wood screws x 2, antenna x 4 |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Input Connection | Four pin locking connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +10 V |
| Battery | 3 V DC (two 1.5 V AA) |
| Battery Life | AA alkaline batteries: approx. 15 hours; AA nickel-hydrogen batteries: approx. 14 hours 30 minutes; AA lithium batteries: approx. 29 hours (varies depending on usage conditions) |
| Operating Temperature | 5ºC to +40ºC |
| Dimensions | 63.7 mm (2.5") × 22.7 mm (0.89") × 107.4 mm (4.2") (W × D × H) |
| Weight | 80 g (2.8 oz), without batteries |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Microphone Type | Dynamic |
| Microphone Polar Pattern | Hypercardioid |
| Battery | 3 V DC (two 1.5 V AA) |
| Battery Life | Approx. 18 hours (alkaline); approx. 16 hours 30 minutes (Ni-MH); approx. 35 hours (lithium), varies depending on usage conditions |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 265.0 mm (10") × 53.7 mm (2.1") |
| Weight | 300 g (11 oz), without batteries |
| Included Accessories | Mic holder AT8456a, converting thread adapter (3/8" - 5/8") |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Maximum Input Sound Pressure Level | 139 dB SPL |
| Microphone Type | Condenser |
| Microphone Polar Pattern | Cardioid |
| Built-in Battery | 3.7V lithium-ion battery (5.5Wh, 1460mAh) |
| Battery Life | Approx. 12 hours, varies depending on usage conditions |
| Charging Time | Approx. 3 hours 10 minutes, varies depending on usage conditions |
| USB Charging Port | USB Type-C (USB 2.0) |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 90.5 mm (3.6") × 129.4 mm (5.1") × 31.9 mm (1.3") (W × D × H) |
| Weight (with battery) | 510 g (18 oz), including battery |
| Included Accessories | USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9']) |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Microphone | Gooseneck microphone supported |
| Phantom Power Supply | DC24V |
| Built-in Battery | 3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh) |
| Battery Life | When using a gooseneck microphone with no LED: approx. 12 hours; with an LED: approx. 8 hours, varies depending on usage conditions |
| Charging Time | Approx. 3 hours 10 minutes, varies depending on usage conditions |
| USB Charging Port | USB Type-C (USB 2.0) |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 90.5 mm (3.6") × 129.4 mm (5.1") × 47.6 mm (1.9") (W × D × H) |
| Weight | 490 g (17 oz), including battery |
| Included Accessories | USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9']) |
| Length | 12.2 In. |
|---|---|
| Width | 16.65 In. |
| Height | 4.09 In. |
| Weight | 5.09 lbs |
