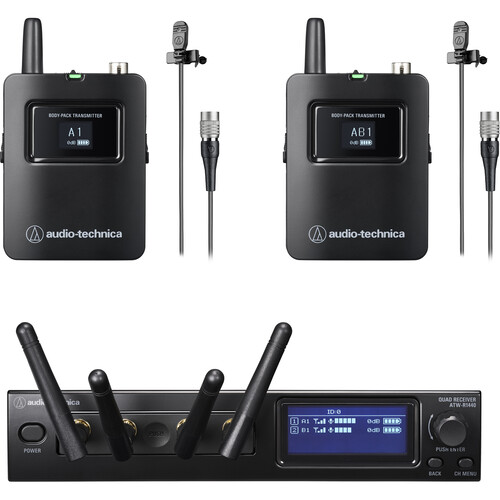

The Audio-Technica ATW-1421/L Dual Lavalier Wireless System (ATW-1421/L) is a 2.4 GHz digital wireless package featuring an ATW-R1440 rack-mount receiver chassis, two ATW-T1401 body-pack transmitters, and two MT830cW lavalier microphones.
The Audio-Technica ATW-1421/L Dual Lavalier Wireless System provides professional 24-bit/48 kHz digital wireless operation for high-quality audio performance. This system operates in the 2.4 GHz range, ensuring it remains completely free from TV interference. It serves as a versatile solution for presentation and performance environments requiring reliable, interference-free audio transmission.
This system features plug-and-play operation for streamlined setup. Users can choose between two distinct operating modes to suit specific environment requirements. Standard mode supports 10 channels and minimizes latency, while HD mode allows for up to 20 channels to maximize the total channel count. For data security, the system utilizes AES128 encryption to protect wireless signals.
The modular design allows for significant scalability and range. Receiver units can be docked directly in the ATW-R1440 chassis or mounted remotely up to 328 feet away via Ethernet cable. This flexibility improves signal stability in complex architectural spaces. Up to five chassis can be linked and used simultaneously to expand the system capacity. Additionally, each receiver channel pairs with up to four transmitters, allowing for rapid switching between different hardware configurations.
Both the transmitters and receivers include OLED screens for clear readouts of key settings and system alerts. The chassis System ID Display provides immediate feedback on RF signal levels, system ID, transmitter battery levels, and link status. For centralized control, the ATW-1421/L is compatible with Audio-Technica’s Wireless Manager software. This software enables users to configure, monitor, and save device settings as projects while supporting the Syslog protocol for system monitoring.
The ATW-T1401 body-pack transmitters feature water- and sweat-resistant cW-style connectors to ensure a secure, durable connection to the included MT830cW lavalier microphones. These transmitters include integrated charging terminals for use with ATW-CHG3 or ATW-CHG3N charging docks when using NiMH batteries. An auto-lock function protects the system from unintended operations, such as accidental power-offs or channel changes during a performance.
The ATW-R1440 half-rack receiver chassis includes a short and long rack ear for flexible mounting. Two long ears can also serve as a joining plate to secure two chassis within a single full rack space. The system supports mixed output for applications with limited input channels, ensuring compatibility with various audio mixing setups.
| Operating Frequencies | 2,402 to 2,480 MHz |
| Dynamic Range | 120 dB (A-weighted), typical |
| Total Harmonic Distortion | < 0.05%, typical |
| Maximum Simultaneous Use (recommended) | Standard: 10 channels; HD mode: 20 channels — depends on region and environment |
| System Frequency Response | 20 to 20,000 Hz, varies depending on the microphone installed |
| Delay | Standard: 2.8ms; HD mode: 6.7ms |
| Audio Sampling Rate | Standard: 24-bit/48 kHz; HD mode: 24-bit/48 kHz |
| Encryption Method | AES128 |
| External Receiver Unit Port | RJ45 |
| NETWORK Port | RJ45, Fast Ethernet |
| LINK IN/OUT Port | RJ12 |
| Output Level | LINE max: +22 dBu (+20 dBV); LINE Unity: -20 dBu (-22 dBV); MIC max: -12 dBu (-10 dBV); MIC Unity: -50 dBu (-52 dBV) |
| Power Consumption | 3.7W |
| Power Supply | 12 V DC, 0.5 A (AC adapter) |
| Operating Temperature Range | 0ºC to +40ºC (32°F to 104°F) |
| Dimensions | 209.8 mm (8.3") × 165.6 mm (6.5") × 42.5 mm (1.7") (W × D × H) |
| Weight | 740 g (26 oz) |
| Included Accessories | AC adapter, AC adapter blade, short rack-mount adapter, long rack-mount adapter, fixing screw × 5, link cable (30 cm [12"]), leg × 4 |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | 1/2 wave dipole antenna, true diversity |
| External Connection Port | RJ45 |
| Power Supply | 12 V DC (RC14) |
| Operating Temperature Range | 0ºC to +40ºC (32°F to 104°F) |
| Dimensions | 86.0 mm (3.4") × 70.2 mm (2.8") × 18.7 mm (0.74") (W × D × H) |
| Weight | 77 g (2.7 oz) |
| Included Accessory | Unit holder, holder cover, wood screws x 2, antenna x 4 |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Input Connection | Four pin locking connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +10 V |
| Battery | 3 V DC (two 1.5 V AA) |
| Battery Life | AA alkaline batteries: approx. 15 hours; AA nickel-hydrogen batteries: approx. 14 hours 30 minutes; AA lithium batteries: approx. 29 hours (varies depending on usage conditions) |
| Operating Temperature | 5ºC to +40ºC |
| Dimensions | 63.7 mm (2.5") × 22.7 mm (0.89") × 107.4 mm (4.2") (W × D × H) |
| Weight | 80 g (2.8 oz), without batteries |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Microphone Type | Dynamic |
| Microphone Polar Pattern | Hypercardioid |
| Battery | 3 V DC (two 1.5 V AA) |
| Battery Life | Approx. 18 hours (alkaline); approx. 16 hours 30 minutes (Ni-MH); approx. 35 hours (lithium), varies depending on usage conditions |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 265.0 mm (10") × 53.7 mm (2.1") |
| Weight | 300 g (11 oz), without batteries |
| Included Accessories | Mic holder AT8456a, converting thread adapter (3/8" - 5/8") |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Maximum Input Sound Pressure Level | 139 dB SPL |
| Microphone Type | Condenser |
| Microphone Polar Pattern | Cardioid |
| Built-in Battery | 3.7V lithium-ion battery (5.5Wh, 1460mAh) |
| Battery Life | Approx. 12 hours, varies depending on usage conditions |
| Charging Time | Approx. 3 hours 10 minutes, varies depending on usage conditions |
| USB Charging Port | USB Type-C (USB 2.0) |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 90.5 mm (3.6") × 129.4 mm (5.1") × 31.9 mm (1.3") (W × D × H) |
| Weight (with battery) | 510 g (18 oz), including battery |
| Included Accessories | USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9']) |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Microphone | Gooseneck microphone supported |
| Phantom Power Supply | DC24V |
| Built-in Battery | 3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh) |
| Battery Life | When using a gooseneck microphone with no LED: approx. 12 hours; with an LED: approx. 8 hours, varies depending on usage conditions |
| Charging Time | Approx. 3 hours 10 minutes, varies depending on usage conditions |
| USB Charging Port | USB Type-C (USB 2.0) |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 90.5 mm (3.6") × 129.4 mm (5.1") × 47.6 mm (1.9") (W × D × H) |
| Weight | 490 g (17 oz), including battery |
| Included Accessories | USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9']) |
| Length | 12.2 In. |
|---|---|
| Width | 16.65 In. |
| Height | 4.09 In. |
| Weight | 5.09 lbs |
