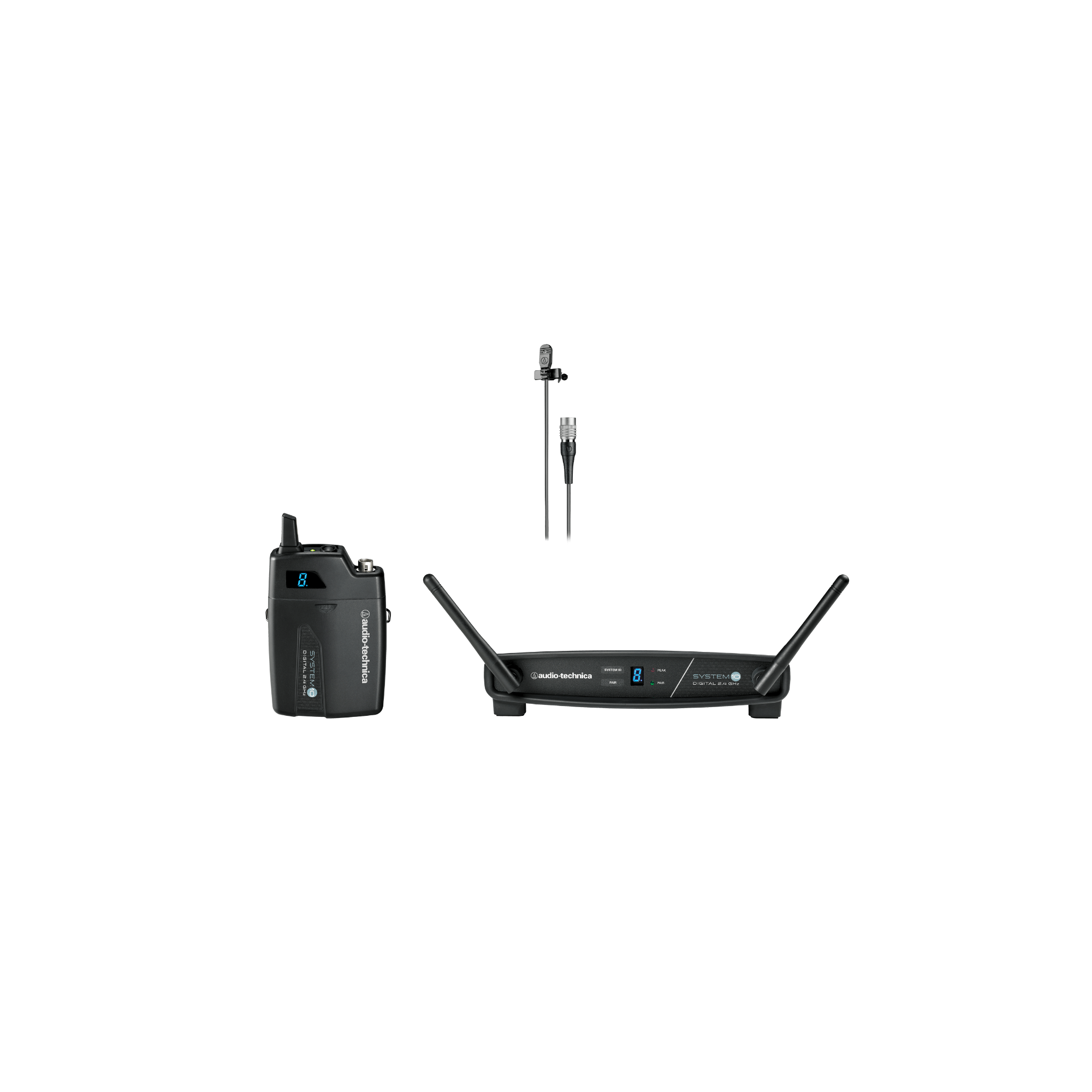

The Audio-Technica ATW-1101/L Wireless Lavalier Microphone System is a 2.4 GHz System 10 digital wireless system that includes the ATW-R1100 receiver and the ATW-T1001 UniPak transmitter with an MT830cW lavalier microphone.
The Audio-Technica ATW-1101/L Wireless Lavalier Microphone System is a professional System 10 digital wireless solution designed for high-fidelity audio performance. This system operates in the 2.4 GHz range, providing clear communication by avoiding interference from TV and DTV bands. It serves as a comprehensive package for users requiring a reliable body-pack and lavalier microphone configuration.
The ATW-1101/L system comprises three primary hardware components engineered for seamless integration.
The ATW-R1100 is a digital wireless receiver that serves as the central hub for the System 10 platform. It ensures stable signal reception and consistent audio output for various professional environments.
The ATW-T1001 UniPak body-pack transmitter offers a compact and versatile solution for mobile audio transmission. It facilitates the wireless connection between the microphone and the receiver with digital precision.
The MT830cW lavalier microphone features an omnidirectional polar pattern. This design captures sound evenly from all directions, making the microphone ideal for speech and presentation applications where natural audio reproduction is required.
| Operating Frequencies | 2.4 GHz ISM band (2400 to 2483.5 MHz) |
| Frequency Response | 20 Hz to 20 kHz, depending on microphone type |
| Operating Range | 30 m (100') typical, open range environment with no interfering signals |
| Total Harmonic Distortion | <0.05% typical |
| Operating Temperature Range | 0° C to +40° C (32° F to 104° F), battery performance may be reduced at very low temperatures |
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA, not included |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Dimensions | 254.8 mm (10.03") long, 50.0 mm (1.97") diameter |
| Net Weight | 280 grams (9.9 oz) without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| RF Power Output | 10 mW |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Battery Type | Two 1.5V AA, not included |
| Dimensions | 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D |
| Input Connections | Four-pin Locking Connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Net Weight | 100 grams (3.5 oz) without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiving System | Diversity (frequency/time/space) |
| Maximum Output Level | XLR, balanced: 0 dBV; 1/4" (6.3 mm), unbalanced: +6 dBV |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| Dimensions | 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D |
| Weight | 290 grams (10.2 oz) |
| Accessories Included | Power supply |
| Length | 10.67 In. |
|---|---|
| Width | 13.7 In. |
| Height | 4.02 In. |
| Weight | 2.36 lbs |
