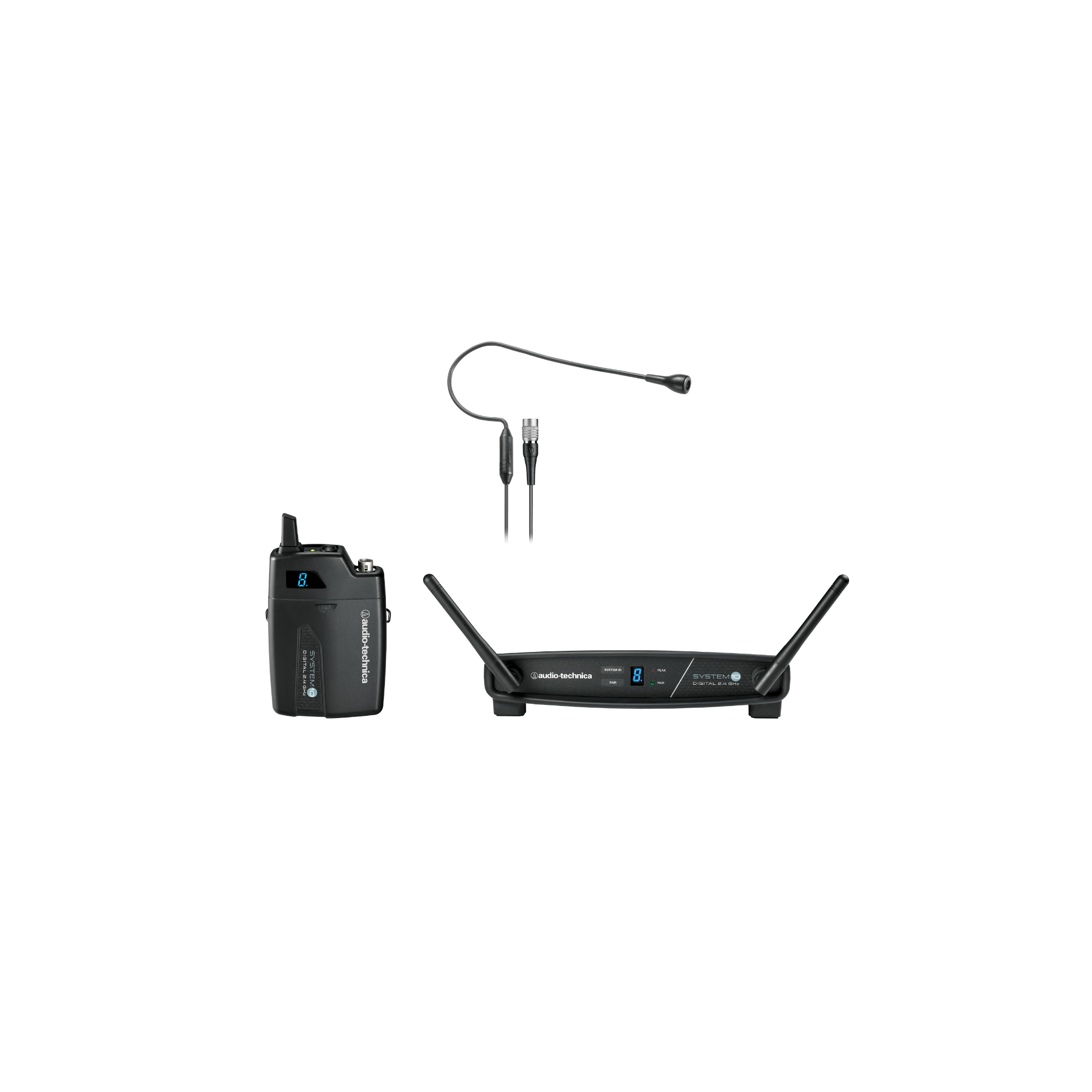

The Audio-Technica ATW-1101/H92 Wireless Headset Microphone System is a 2.4 GHz digital wireless setup that includes an ATW-R1100 receiver, an ATW-T1001 UniPak transmitter, and a PRO 92cW headworn microphone.
Manufacturer Name
MPN
ATW-1101/H92
SKU
TMU-ATW-1101/H92
UPC
042005175383
Product Condition
NEW
The Audio-Technica ATW-1101/H92 Wireless Headset Microphone System is a professional digital wireless solution designed for hands-free vocal applications. This System 10 digital wireless system operates within the 2.4 GHz frequency range to facilitate stable audio transmission between the transmitter and receiver.
The ATW-1101/H92 configuration includes essential hardware for immediate wireless operation:
This system utilizes 2.4 GHz digital technology to maintain signal integrity. The Audio-Technica ATW-1101/H92 provides a reliable connection for users requiring mobility without sacrificing audio quality. The combination of the ATW-R1100 receiver and ATW-T1001 body-pack transmitter ensures consistent performance across various environments.
| Operating Frequencies | 2.4 GHz ISM band (2400 to 2483.5 MHz) |
| Frequency Response | 20 Hz to 20 kHz, depending on microphone type |
| Operating Range | 30 m (100') typical, open range environment with no interfering signals |
| Total Harmonic Distortion | <0.05% typical |
| Operating Temperature Range | 0° C to +40° C (32° F to 104° F), battery performance may be reduced at very low temperatures |
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA, not included |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Dimensions | 254.8 mm (10.03") long, 50.0 mm (1.97") diameter |
| Net Weight | 280 grams (9.9 oz) without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| RF Power Output | 10 mW |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Battery Type | Two 1.5V AA, not included |
| Dimensions | 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D |
| Input Connections | Four-pin Locking Connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Net Weight | 100 grams (3.5 oz) without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiving System | Diversity (frequency/time/space) |
| Maximum Output Level | XLR, balanced: 0 dBV; 1/4" (6.3 mm), unbalanced: +6 dBV |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| Dimensions | 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D |
| Weight | 290 grams (10.2 oz) |
| Accessories Included | Power supply |
| Input Connections Four-pin Locking Connector Pin 1 | GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Maximum Output Level XLR, balanced | 0 dBV |
| 1/4" (6.3 mm), unbalanced | +6 dBV |
| Operating Frequencies | 2.4 GHz ISM band (2400 to 2483.5 MHz) |
| Frequency Response | 20 Hz to 20 kHz, depending on microphone type |
| Operating Range | 30 m (100') typical, open range environment with no interfering signals |
| Total Harmonic Distortion | <0.05% typical |
| Operating Temperature Range | 0° C to +40° C (32° F to 104° F), battery performance may be reduced at very low temperatures |
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA, not included |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Dimensions | 254.8 mm (10.03") long, 50.0 mm (1.97") diameter |
| Net Weight | 280 grams (9.9 oz) without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| RF Power Output | 10 mW |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Battery Type | Two 1.5V AA, not included |
| Dimensions | 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D |
| Input Connections | Four-pin Locking Connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Net Weight | 100 grams (3.5 oz) without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiving System | Diversity (frequency/time/space) |
| Maximum Output Level | XLR, balanced: 0 dBV; 1/4" (6.3 mm), unbalanced: +6 dBV |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| Dimensions | 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D |
| Weight | 290 grams (10.2 oz) |
| Accessories Included | Power supply |
| Length | 10.67 In. |
|---|---|
| Width | 13.7 In. |
| Height | 4.02 In. |
| Weight | 2.36 lbs |
