Manufacturer Name
MPN
ATW-1101/H92-TH
SKU
TMU-ATW-1101/H92-TH
UPC
042005175390
Product Condition
NEW

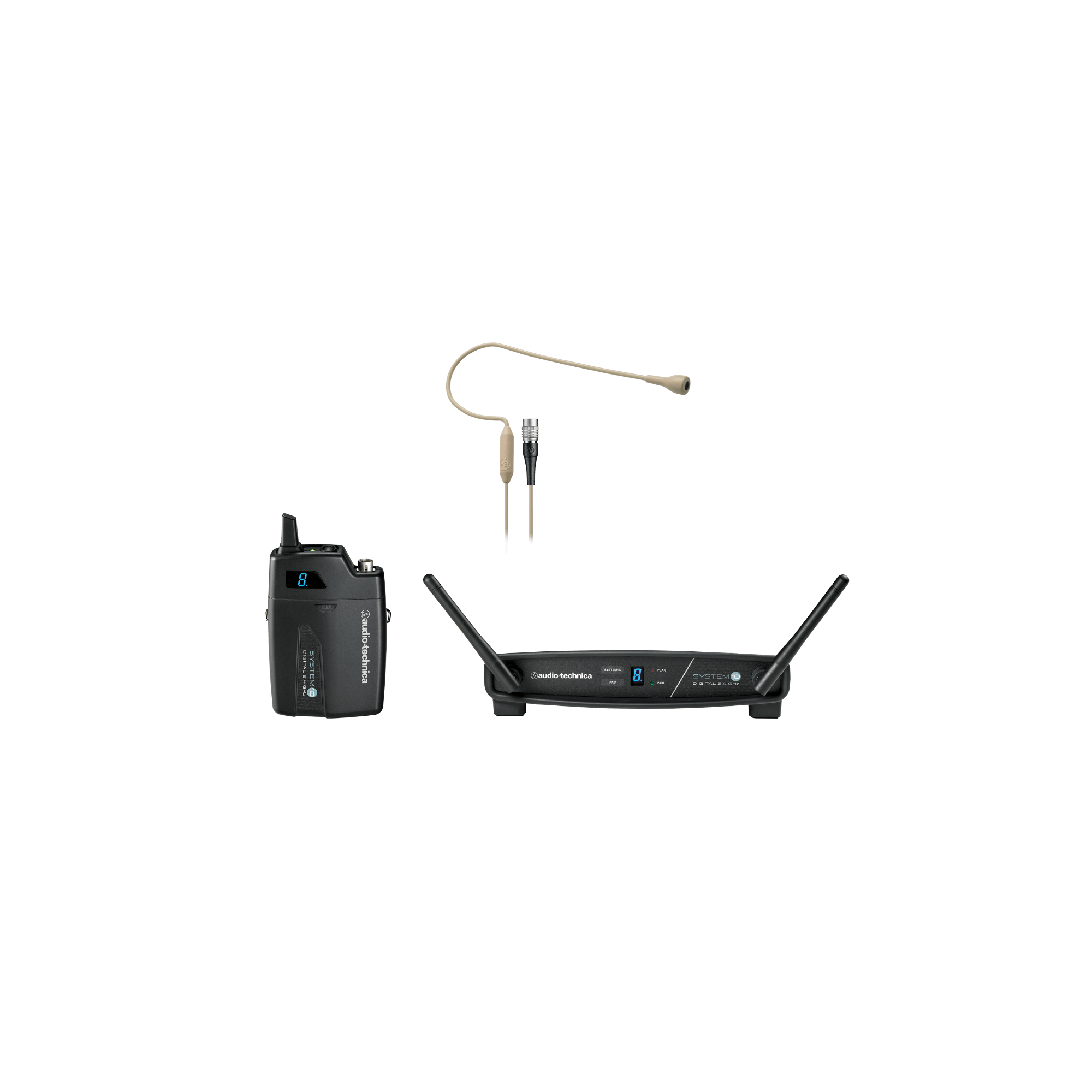

The Audio-Technica ATW-1101/H92-TH Beige Wireless Headset System utilizes System 10 digital wireless technology to deliver clear audio communication. This system operates in the 2.4 GHz range, providing a stable signal path free from television and white space interference. It serves as a comprehensive solution for presenters and performers who require hands-free mobility and reliable vocal reproduction.
The ATW-1101/H92-TH system consists of three primary hardware components designed to work together seamlessly.
The ATW-R1100 receiver functions as the central hub for the System 10 digital wireless setup. It processes the incoming 2.4 GHz signal to ensure high-fidelity audio output.
The ATW-T1001 UniPak body-pack transmitter provides a compact and lightweight solution for mobile signal transmission. It connects directly to the headworn microphone to transmit audio wirelessly to the receiver.
The PRO 92cW-TH headworn microphone features a beige finish for a low-profile appearance during use. This microphone captures vocal input with precision, making it suitable for spoken word and performance environments.
This system utilizes the 2.4 GHz frequency band. Operating in this spectrum allows the Audio-Technica ATW-1101/H92-TH to avoid the crowded UHF bands often occupied by broadcast television signals. This digital operation ensures a clear and consistent connection for professional audio applications.
| Operating Frequencies | 2.4 GHz ISM band (2400 to 2483.5 MHz) |
| Frequency Response | 20 Hz to 20 kHz, depending on microphone type |
| Operating Range | 30 m (100') typical, open range environment with no interfering signals |
| Total Harmonic Distortion | <0.05% typical |
| Operating Temperature Range | 0° C to +40° C (32° F to 104° F), battery performance may be reduced at very low temperatures |
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA, not included |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Dimensions | 254.8 mm (10.03") long, 50.0 mm (1.97") diameter |
| Net Weight | 280 grams (9.9 oz) without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| RF Power Output | 10 mW |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Battery Type | Two 1.5V AA, not included |
| Dimensions | 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D |
| Input Connections | Four-pin Locking Connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Net Weight | 100 grams (3.5 oz) without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiving System | Diversity (frequency/time/space) |
| Maximum Output Level | XLR, balanced: 0 dBV; 1/4" (6.3 mm), unbalanced: +6 dBV |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| Dimensions | 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D |
| Weight | 290 grams (10.2 oz) |
| Accessories Included | Power supply |
| Length | 10.67 In. |
|---|---|
| Width | 13.7 In. |
| Height | 4.02 In. |
| Weight | 2.36 lbs |
