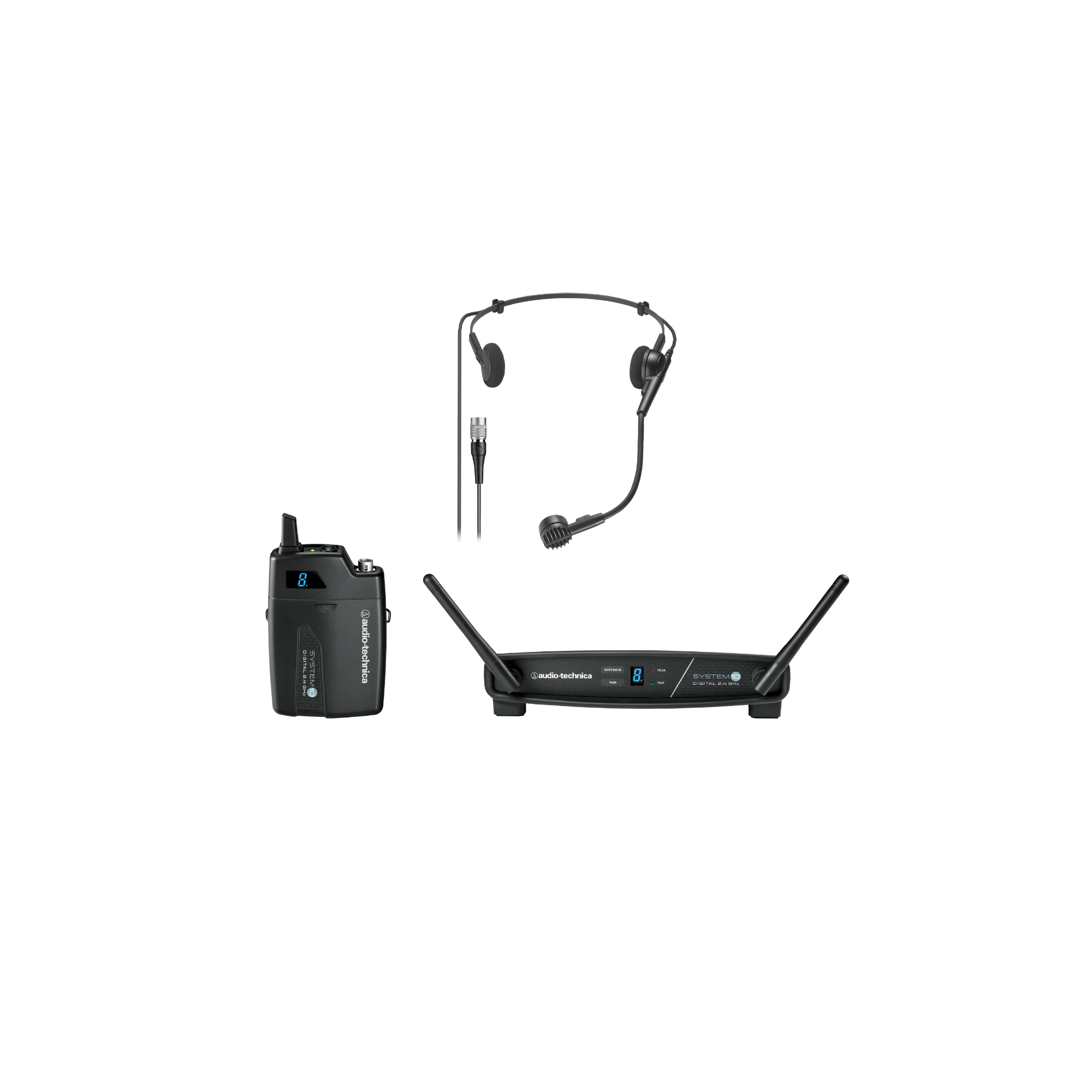

The Audio-Technica ATW-1101/H Wireless Headworn Microphone System is a 2.4 GHz System 10 digital wireless package featuring an ATW-R1100 receiver and an ATW-T1001 UniPak transmitter paired with a PRO 8HEcW headworn microphone.
The Audio-Technica ATW-1101/H Wireless Headworn Microphone System provides high-quality audio transmission for users requiring hands-free operation. This System 10 digital wireless system utilizes the 2.4 GHz frequency range to ensure clear communication between the transmitter and receiver. It serves as a comprehensive solution for presenters, performers, and educators who need reliable wireless connectivity.
The ATW-1101/H system consists of three primary hardware components designed to work together seamlessly.
The ATW-R1100 serves as the central hub for the wireless system, receiving digital signals from the transmitter. It facilitates stable signal reception within the 2.4 GHz spectrum to maintain audio integrity.
The ATW-T1001 UniPak body-pack transmitter connects directly to the microphone. This compact unit converts the audio signal for digital transmission to the stationary receiver, allowing for mobile operation without tethered cables.
The PRO 8HEcW headworn microphone offers a secure and comfortable fit for active users. Its specialized design ensures the microphone capsule remains in a fixed position relative to the mouth, which results in consistent audio levels and improved vocal clarity.
This system operates as part of the Audio-Technica System 10 digital wireless line. By utilizing the 2.4 GHz range, the ATW-1101/H avoids interference from traditional TV and radio broadcast frequencies. The digital architecture ensures that the audio signal remains accurate and consistent throughout the performance or presentation.
| Operating Frequencies | 2.4 GHz ISM band (2400 to 2483.5 MHz) |
| Frequency Response | 20 Hz to 20 kHz, depending on microphone type |
| Operating Range | 30 m (100') typical, open range environment with no interfering signals |
| Total Harmonic Distortion | <0.05% typical |
| Operating Temperature Range | 0° C to +40° C (32° F to 104° F), battery performance may be reduced at very low temperatures |
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA, not included |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Dimensions | 254.8 mm (10.03") long, 50.0 mm (1.97") diameter |
| Net Weight | 280 grams (9.9 oz) without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| RF Power Output | 10 mW |
| Battery Life | >7 hours (alkaline), depending on battery type and use pattern |
| Battery Type | Two 1.5V AA, not included |
| Dimensions | 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D |
| Input Connections | Four-pin Locking Connector — Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Net Weight | 100 grams (3.5 oz) without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiving System | Diversity (frequency/time/space) |
| Maximum Output Level | XLR, balanced: 0 dBV; 1/4" (6.3 mm), unbalanced: +6 dBV |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| Dimensions | 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D |
| Weight | 290 grams (10.2 oz) |
| Accessories Included | Power supply |
| Length | 10.67 In. |
|---|---|
| Width | 13.7 In. |
| Height | 4.02 In. |
| Weight | 2.36 lbs |
