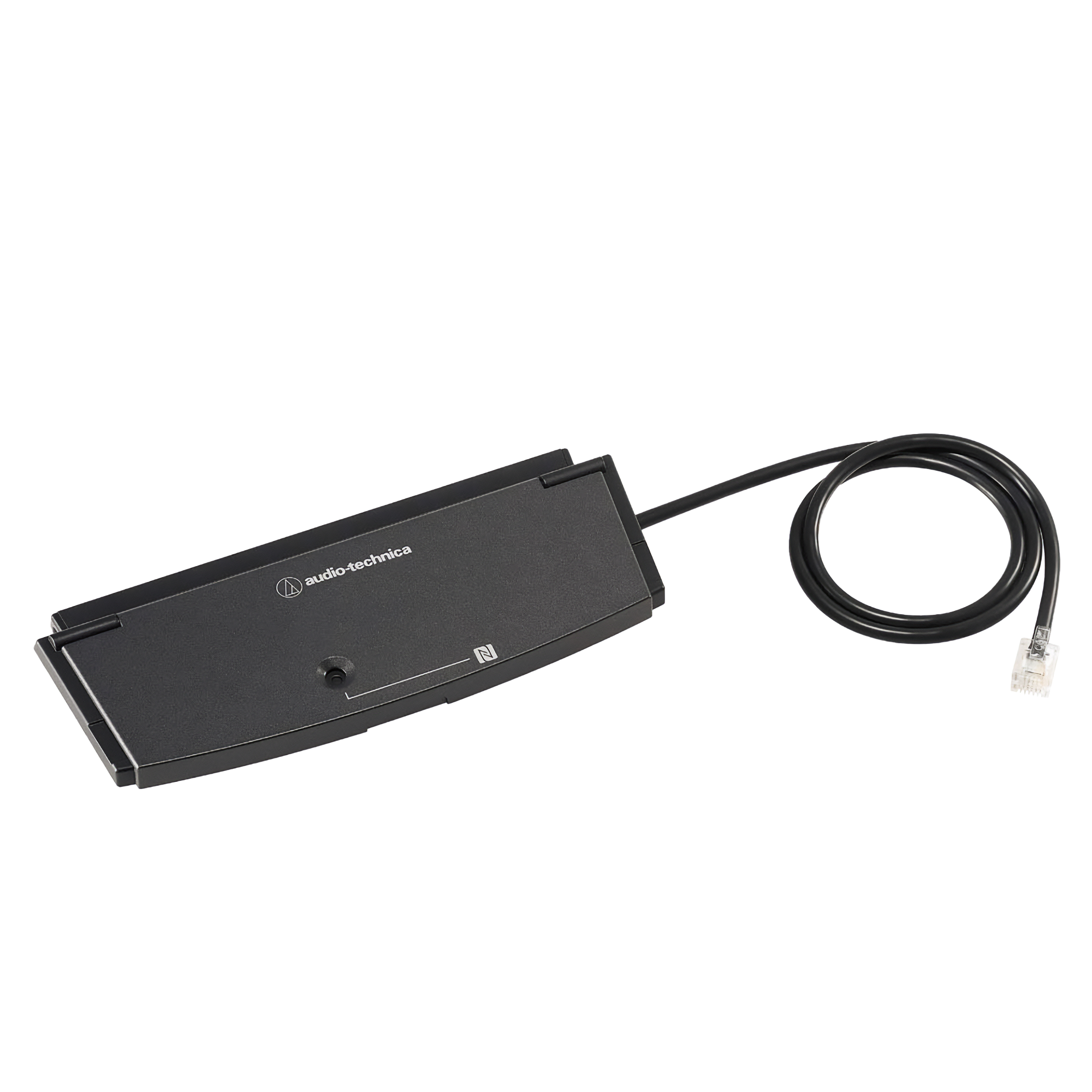

The Audio-Technica ATUC-VU Conference Voting Unit is a dedicated voting module designed specifically for integration with the ATUC-50 Digital Discussion Unit.
The Audio-Technica ATUC-VU Conference Voting Unit is a specialized digital discussion system component designed to facilitate formal voting processes. This unit provides a streamlined interface for participants to cast votes in conference rooms, boardrooms, legislative bodies, and educational institutions. It integrates seamlessly with the ATUC-50 Digital Discussion System to ensure accurate data collection and secure communication.
The ATUC-VU features a user interface composed of three tactile push-buttons for Yes, No, and Abstain selections. The system also supports multiple-choice voting configurations depending on the central system settings. To ensure user accuracy, the unit provides visual LED feedback for all actions and displays vote confirmation status through dedicated indicators. All data transmission is digital and encrypted within the ATUC-50 system to maintain session integrity.
This voting unit is built for professional desktop environments, featuring a compact housing made of durable ABS plastic and a stable metal base. The unit measures 120 mm in width and length with a low-profile height of 30 mm. The black finish with silver accents provides a neutral aesthetic suitable for formal settings. For added reliability, the hardware includes integrated ESD protection to prevent damage from electrostatic discharge.
The ATUC-VU connects directly to the ATUC-50DU Digital Discussion Unit using a proprietary ATUC-50 system connector. It draws power from the discussion unit, maintaining an efficient power consumption of typically less than 1 W. Firmware updates are managed via the ATUC-50CU Central Unit, ensuring the hardware stays current with system-wide software improvements.
| Voting Functionality | Yes/No/Abstain, Multiple Choice (system dependent) |
| Power Source | Powered via ATUC-50 Digital Discussion Unit |
| Construction Material | Durable ABS plastic housing, metal base |
| Operating Humidity Range | 20% to 90% RH (non-condensing) |
| Firmware Update Method | Via ATUC-50CU Central Unit |
| Storage Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Feedback Mechanism | Visual LED feedback for user actions |
| Height | 30 mm (1.18 in) |
| Connection Interface | Proprietary ATUC-50 System Connector |
| Visual Indicators | LED indicators for vote confirmation and status |
| Width | 120 mm (4.72 in) |
| System Compatibility | Audio-Technica ATUC-50 Digital Discussion System |
| Cable Requirement | Connects directly to ATUC-50DU via proprietary cable (not included with VU) |
| Color | Black with silver accents |
| Data Transmission | Digital, encrypted within ATUC-50 system |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| User Interface | Tactile push-buttons |
| Mounting Type | Desktop |
| ESD Protection | Integrated |
| Weight | 0.2 kg (0.44 lbs) |
| Length | 120 mm (4.72 in) |
| Product Type | Digital Discussion System Voting Unit |
| Number of Voting Buttons | 3 (Yes, No, Abstain) |
| Power Consumption | Typically <1 W |
| Application | Conference rooms, boardrooms, legislative bodies, educational institutions |
| System Integration | Seamless integration with ATUC-50CU and ATUC-50DU |
| Length | 9 In. |
|---|---|
| Width | 4 In. |
| Height | 2 In. |
| Weight | 1 lbs |
