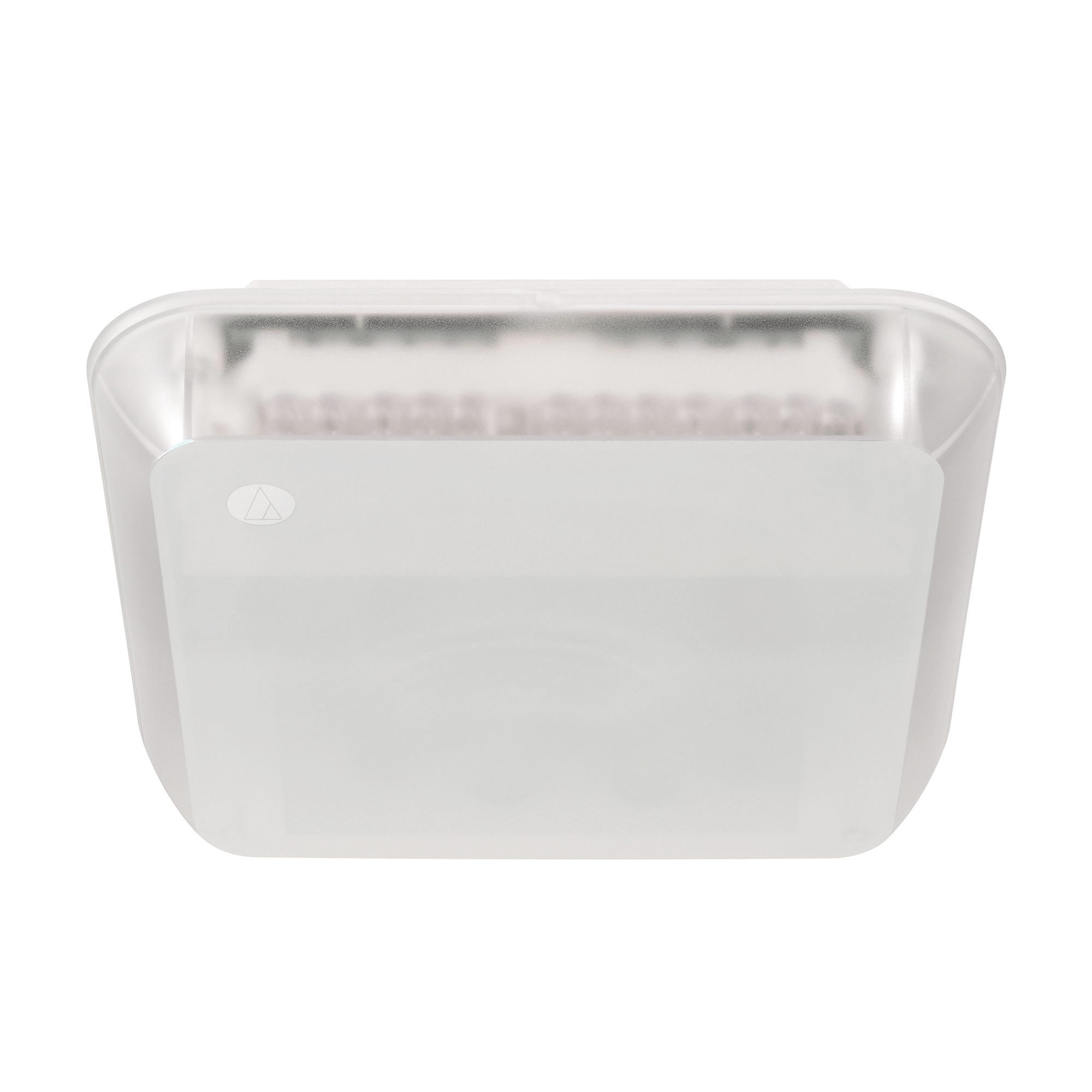

The Audio-Technica ATUC-IRA IR Antenna for Discussion Systems functions as a dedicated antenna for the ATUC-IR IR/Wired Hybrid Discussion System.
The Audio-Technica ATUC-IRA is a ceiling-mount IR Transmitter/Receiver Unit designed for the ATUC-IR IR/Wired Hybrid Discussion System. This unit facilitates the reception and distribution of Infrared Discussion Unit (IRDU) signals to ensure reliable communication within a dedicated coverage area. It supports both wired and wireless system configurations, providing flexibility for diverse meeting environments.
The ATUC-IRA manages the reception and distribution of IRDU signals with a maximum range of 6 meters. This coverage ensures that infrared discussion units within the proximity maintain a stable connection to the central system. By utilizing infrared technology, the unit provides a secure communication path for discussion participants.
Equipped with a standard BNC connector, the ATUC-IRA connects directly to the Infrared Control Unit (IRCU). This interface ensures a secure physical connection for signal transmission between the antenna and the system controller. The unit is compatible with both wired and wireless system architectures, allowing it to adapt to various discussion system requirements.
The ATUC-IRA features a low-profile design with a white finish to integrate seamlessly with ceiling installations. Each unit includes a mounting bracket and screws, providing the necessary hardware for immediate setup.
| Operating Distance | Max. 6m |
| Operating Temperature Range | 0 - 40°C |
| Connections | BNC x 1 |
| Power Consumption | 4.0W |
| Dimensions | 130mm × 35mm × 130mm |
| Weight | Approx. 260g |
| Accessories | Mounting bracket × 1, screws × 2 |
| Infrared Bandwidth | 1MHz - 10MHz |
| Modulation Method | FM |
| Length | 6 In. |
|---|---|
| Width | 8 In. |
| Height | 3 In. |
| Weight | 1 lbs |
