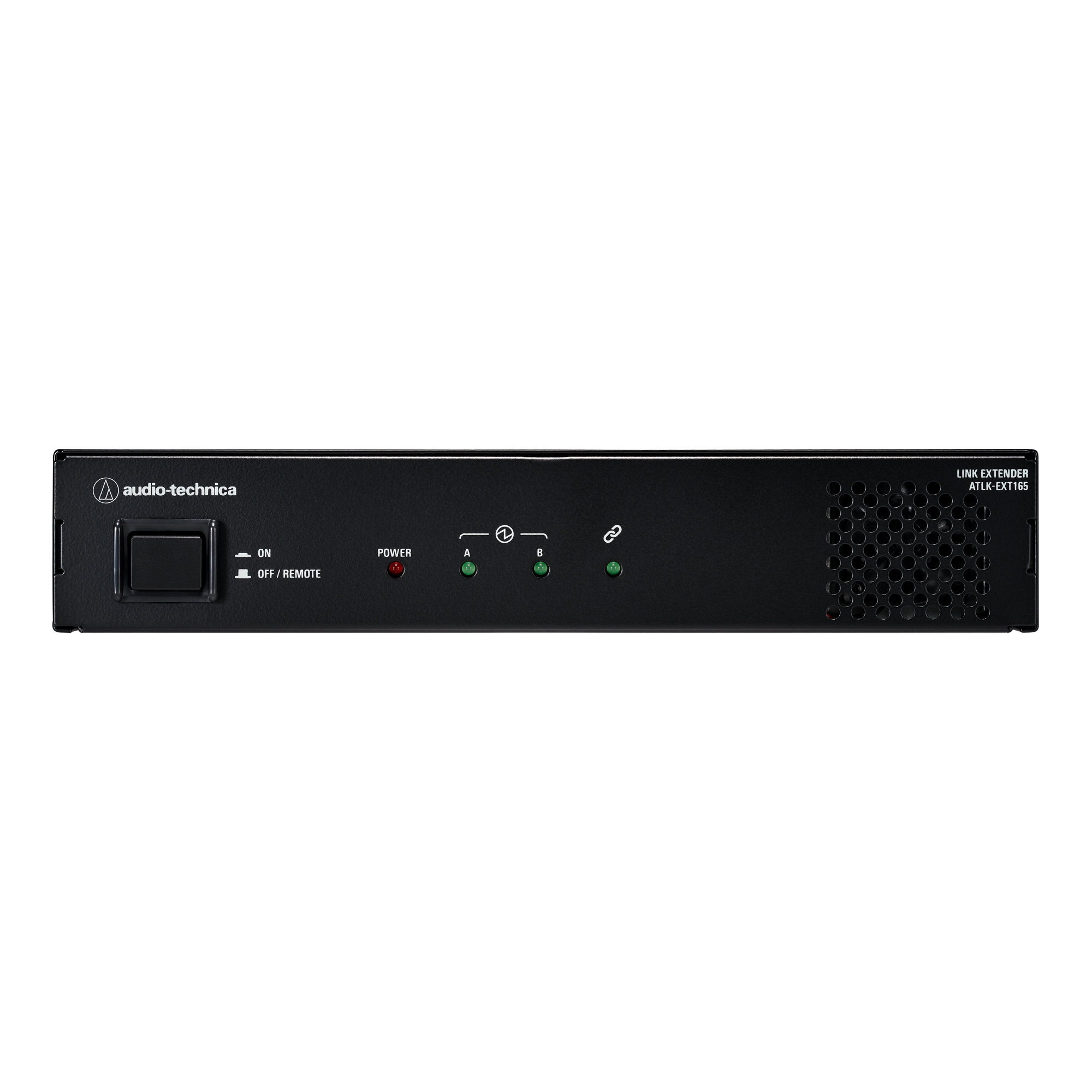

The Audio-Technica ATLK-EXT165 Audio Link Extension Interface enables cable-run extensions for discussion and conference systems or mixers that utilize Audio-Technica LINK RJ-45 ports.
The Audio-Technica ATLK-EXT165 Audio Link Extension Interface facilitates extended cable runs for conference and discussion systems equipped with Audio-Technica LINK RJ-45 ports. This interface supports both wired and wireless system configurations to provide flexible installation options in professional environments.
When used with the ATUC-50 Digital Discussion System, the ATLK-EXT165 supports the operation of up to 100 discussion units per control unit. The device features a dedicated mode switch that allows for either remote control through an ATUC-50CU, ATUC-50IRCU, or ATUC-50IRCUDAN, or standalone power control.
The ATLK-EXT165 supplies DC +48V power to connected devices to enable long-distance cable runs without signal degradation. It incorporates comprehensive monitoring via LED indicators for power on/off status, power supply health, and current-overload detection. For hardware protection, the interface includes an automatic power-cut feature that activates when the drawn current exceeds 2.6A.
This extension interface features two RJ-45 ports for stable connections. It is compatible with a wide range of Audio-Technica products, including:
The unit features a compact half-rack chassis, making it suitable for rack-mounted or tabletop placement. Each ATLK-EXT165 includes an AT8649 table mount kit and a power cable to facilitate immediate setup and integration into the existing audio network.
| Connections | Outputs: LINK power status |
| Chain | DU port A/B |
| Power Supply | AC 100V-240V 50/60Hz |
| Power Consumption | 15W-160W (MAX) |
| Operating Temperature Range | 0-40℃ |
| Operating Humidity | 25-85% |
| Dimensions | 217mm x 326mm x 41mm |
| Weight | 2.2kg |
| Accessories Included | AC power cord, Quick Setup Guide, Euroblock connector (1pcs), Table mount kit, Warranty Sheet |
| I/O Connectors | Output: LINK power status Input: DU port A/B |
| Power Supply | 100V-240V AC (50/60 Hz) |
| Power Consumption | 15 W-160 W (max) |
| Operation temperature | 0° to 40° C (32° to 104° F) |
| Dimensions | 217.0 mm (8.54") W 41.0 mm (1.61") H 326.0 mm (12.83") D |
| Net Weight | 2.2 kg (4.9 lbs) |
| Accessories Included | AC power cord; Euroblock connector; AT8649 table mount kit |
| Compatible Devices | ATUC-50CU, ATUC-50DU, ATUC-50INT, ATUC-50IU, ATDM-0604 |
| Length | 17 In. |
|---|---|
| Width | 13 In. |
| Height | 5 In. |
| Weight | 6 lbs |
