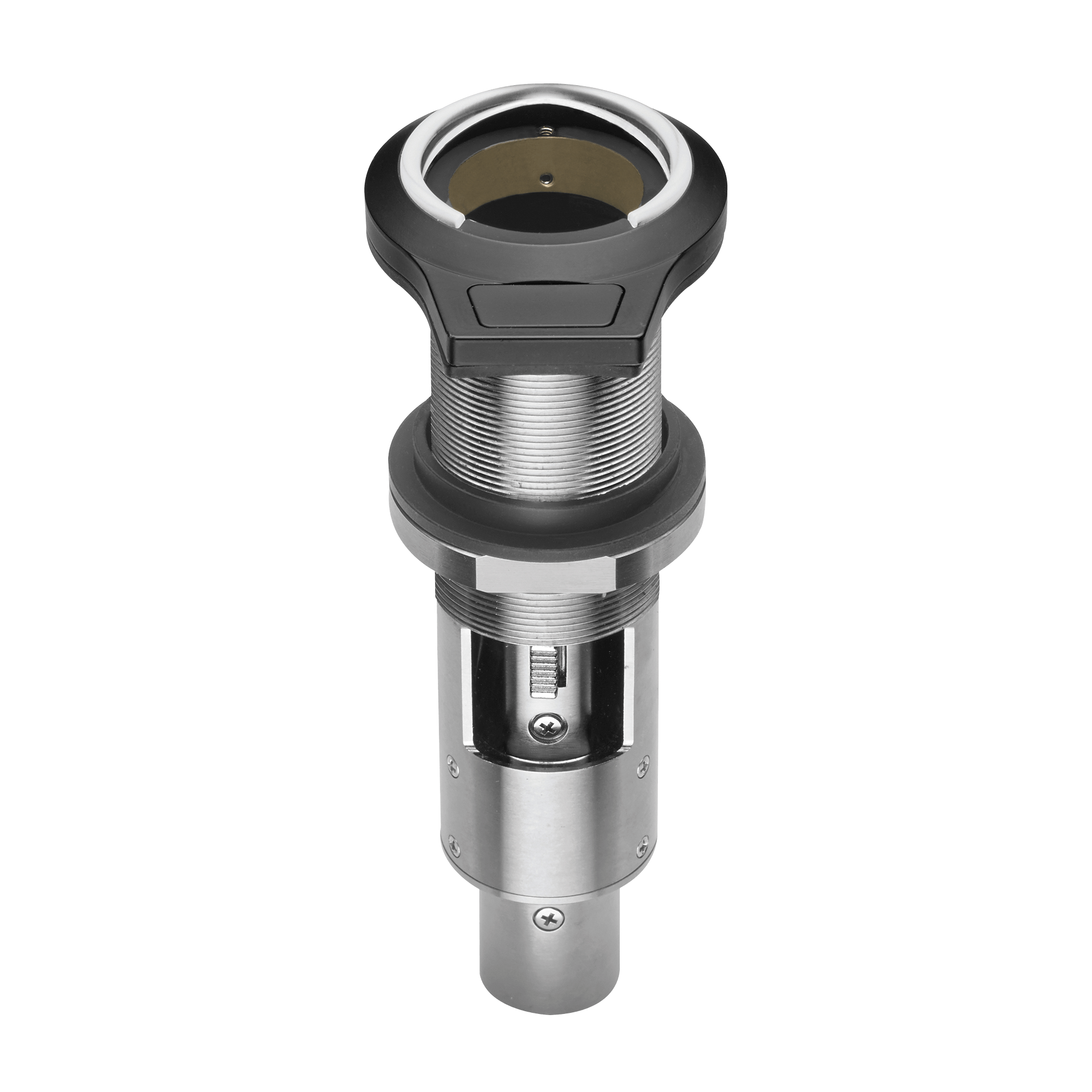

The Audio-Technica AT8657/LED Flush-Mount Mic Socket provides a recessed mounting solution for any 21 mm gooseneck or button-style boundary microphone featuring a 3-pin XLRM-type output and includes an integrated phantom-powered Red/Green LED indicator ring.

The Audio-Technica AT8657/LED Flush-Mount Mic Socket is a tabletop-mount solution designed for the seamless integration of 21 mm gooseneck or button-style boundary microphones. This socket streamlines professional presentation environments by providing a secure, low-profile connection point for microphones equipped with 3-pin XLRM-type outputs.
The AT8657/LED features logic out capability that enables the control of remote devices via a programmable capacitance switch. Users can trigger external equipment, such as cameras or lighting systems, directly from the socket with the touch of a button. This functionality makes the socket highly effective for conference rooms and boardroom installations where integrated system control is required.
A built-in lock switch ensures stable microphone placement by automatically locking the microphone into the socket upon insertion. The microphone remains securely fastened until the user manually activates the release switch. The socket utilizes a 5-pin XLR output to facilitate both high-quality audio signal transmission and logic functionality.
The unit includes an integral Red/Green LED indicator ring to provide clear visual feedback. This LED ring is controllable from logic-enabled devices and operates using the microphone's phantom power. This design choice eliminates the requirement for an additional external power source to drive the status indicator.
To maintain audio clarity and minimize interference, the AT8657/LED includes specialized components designed to dampen surface vibrations.
The AT8657/LED is compatible with any 21 mm gooseneck or button-style boundary microphone that uses a 3-pin XLRM-type output. This includes Audio-Technica models such as the ES945 and ES947.
| Phantom Power Requirements | 24-48V DC, 4 mA typical |
| Switches | Touch-sensitive control: momentary |
| Weight | 165 g (5.8 oz) |
| Dimensions | 130.6 mm (5.14") long, 55.0 mm (2.17") maximum width |
| Output Connector | 5-pin XLRM-type |
| Accessories Included | One pair surface isolators; gooseneck retaining ring & isolator; mounting nut; screws (3) |
| Length | 10 In. |
|---|---|
| Width | 5 In. |
| Height | 2 In. |
| Weight | 1 lbs |
