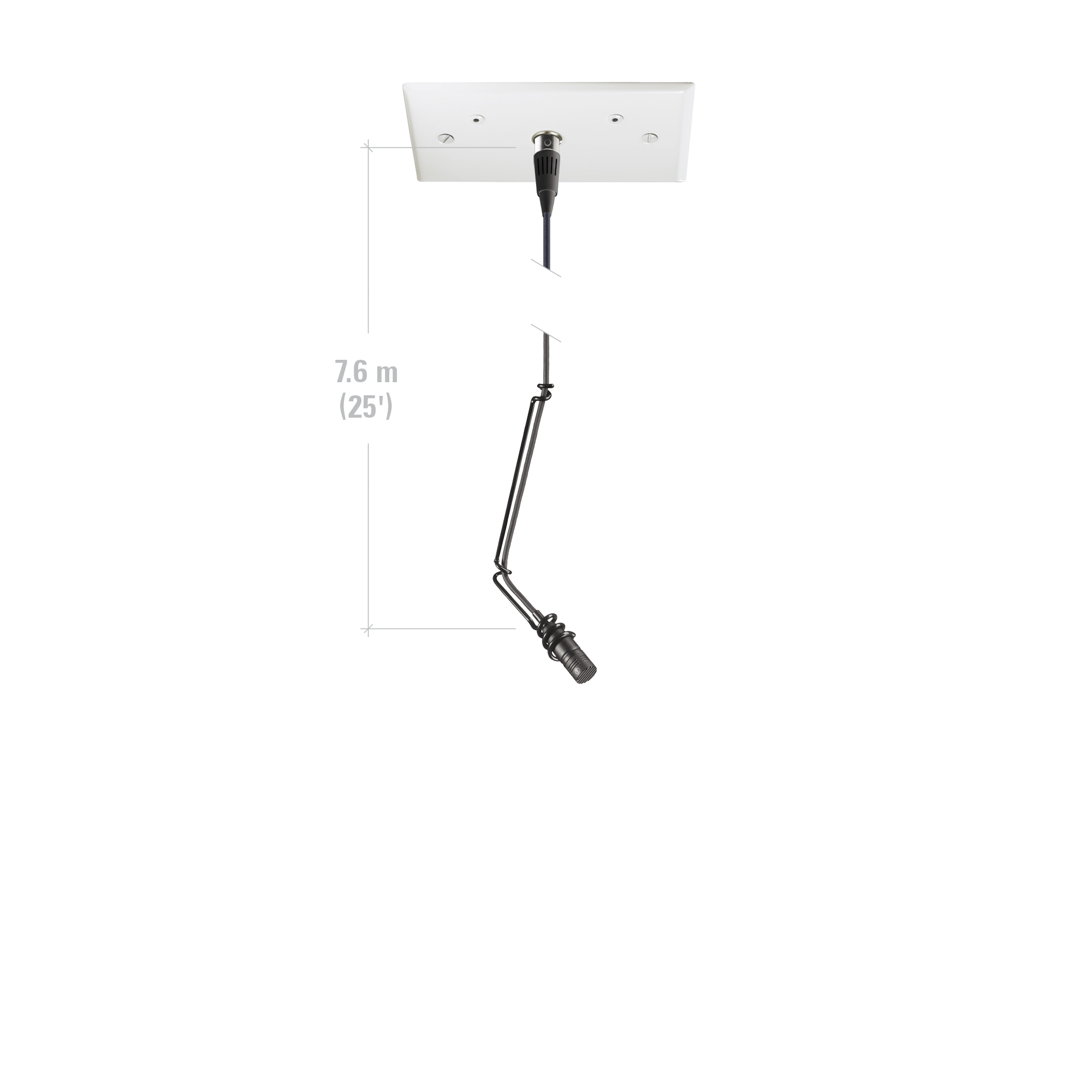

The Audio-Technica U853 Condenser Hanging Microphone provides a professional overhead solution for capturing high-quality audio in speech, theater, orchestra, and choir environments.
The Audio-Technica U853 Condenser Hanging Microphone delivers high-fidelity audio capture for speech, theater, orchestra, and choir sound reinforcement and recording. This phantom-powered microphone utilizes a specialized design for suspension over instrumental groups and stages, ensuring optimal placement for complex acoustic environments.
The U853 incorporates advanced technologies to maintain signal purity and eliminate noise.
This microphone system adapts to various recording needs through interchangeable elements. These elements, available separately, allow users to modify the angle of acceptance from 90° to 360°. Supported patterns include:
The U853 features a low-profile design and a low-reflectance finish to maintain minimum visibility on stage or in houses of worship. For permanent architectural integration, the wall/ceiling plate power module permits installation in standard metal U.S. single-gang electrical boxes. This configuration supports clean, professional setups in fixed environments.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | -39 dB (11.2 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 139 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 115 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Switches | Flat, roll-off |
| Weight (Microphone) | 0.5 oz (14 g) |
| Weight (Power Module) | 2.9 oz (81 g) |
| Weight | 14 g (0,5 oz) |
| Cable | 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2 conductor shielded cable with TA3F-type connector |
| Dimensions | 1.34" (34.0 mm) long, 0.48" (12.2 mm) diameter |
| Dimensions (Power Module) | 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter |
| Dimensions (Microphone) | 1.34" (34.0 mm) long, 0.48" (12.2 mm) diameter |
| Output Connector (Power Module) | Integral 3-pin XLRM-type |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8153 two-stage foam windscreen; AT8451 steel hanger; AT8538 power module; AT8438 5/8"-27 stand adapter |
| Audio-Technica Case Style | M12 |
| Length | 5 In. |
|---|---|
| Width | 9.6 In. |
| Height | 2.8 In. |
| Weight | 1.1 lbs |
