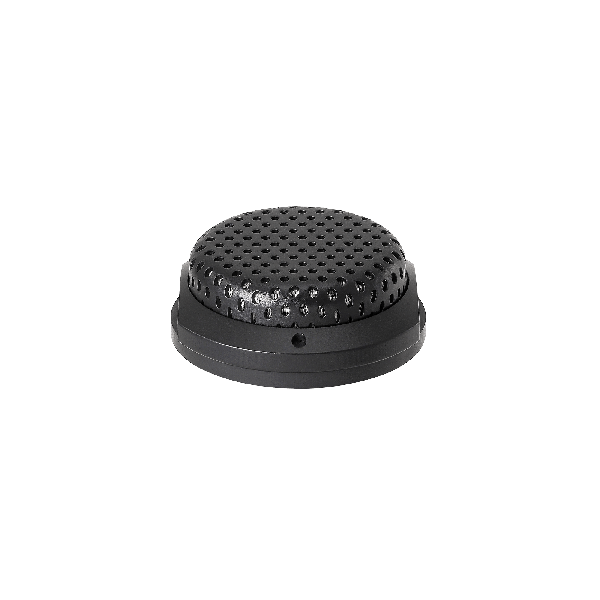

Audio-Technica ES947C/XLR Water-resistant Cardioid Condenser Boundary Microphone with XLR Output

The Audio-Technica ES947C/XLR is a professional water-resistant cardioid condenser boundary microphone designed for high-quality audio capture in conferencing, recording, and monitoring environments. This low-profile microphone mounts directly into surfaces to provide clear, intelligible sound while maintaining a minimal visual presence in professional settings.

Unobtrusive Design and Rugged Construction

The ES947C/XLR features a low-profile element that allows it to mount unobtrusively in tabletops, ceilings, and panels. This design ensures minimum visibility without compromising audio performance. The microphone is housed in a rugged all-metal case with a two-layer perforated grille to protect internal components. To assist with setup, a small front-of-mic indicator ensures proper orientation toward the sound source. The package also includes a pair of rubber isolators to provide mechanical dampening of mounting-surface vibrations.

Advanced Audio Performance

Equipped with a uniform cardioid polar pattern, the ES947C/XLR provides a 120° acceptance angle for focused sound pickup. This directional characteristic helps reduce the capture of unwanted ambient noise. The integration of UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI), ensuring clean audio signals even in environments with high electronic activity.

Protection and Connectivity

The ES947C/XLR carries an IPX4 water-resistance rating, which protects the internal hardware from splashes of water. This microphone utilizes a self-contained power module with an integrated XLRM-type output connector, removing the requirement for an external power module. For operation, the device requires 11V to 52V DC phantom power. This model is also RoHS compliant, meeting standards for the exclusion of hazardous substances.
