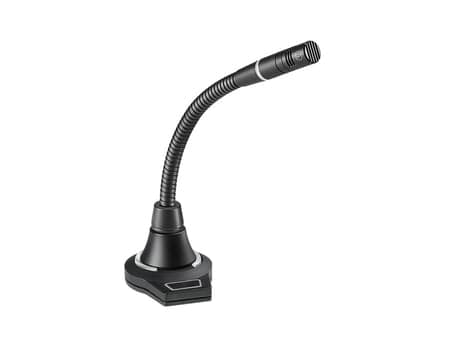

The Audio-Technica ES925/FM3 is a professional modular condenser gooseneck microphone system designed for high-quality sound reinforcement and commercial audio environments. This system integrates a condenser microphone element, a flexible gooseneck, and a 3-pin flush-mount power module to provide clear and natural audio reproduction.
The ES925/FM3 features a fully modular architecture where the microphone element, gooseneck, and power module are interchangeable with other components in the ES modular microphone line. This versatility allows users to customize the hardware configuration by selecting from various power module types, gooseneck lengths ranging from 4.85" to 21.08", and polar patterns including MicroLine®, hypercardioid, cardioid, and omnidirectional. The 3-pin XLR output power module is designed to mount unobtrusively into tabletops for a streamlined installation.
This microphone system utilizes interchangeable condenser elements to deliver full-range, natural sound quality. The design ensures superior off-axis rejection, which maximizes gain before feedback in live sound environments. To protect the signal from electronic noise, the ES925/FM3 incorporates UniGuard® RFI-shielding technology, providing outstanding rejection of radio frequency interference (RFI).
For intuitive operation, the ES925/FM3 includes a capacitive touch switch that enables local muting of the microphone. The system features a highly visible, two-state RGB LED status indicator located on both the flush-mount power module and the element housing. These indicators provide immediate visual confirmation of the microphone's operational status.
The small-diameter gooseneck design allows for highly flexible positioning to accommodate different user requirements. To ensure clean audio capture, the system includes isolators that provide mechanical dampening of vibrations from the mounting surface. The ES925/FM3 is TAA-compliant and comes with a foam windscreen to minimize breath noise and plosives.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | -40 dB (10.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 140 dB SPL |
| Dynamic Range | 112 dB |
| Signal-to-Noise Ratio | 66 dB |
| Phantom Power Requirements | 22-52V DC |
| Switches | Activation: on/off; LED Color: mic on, mic off; Switch function: touch on/off, momentary on, momentary off; Control: local, remote, LED remote; Flat, roll-off |
| Current Consumption | 8 mA |
| Weight | ES925C6/DS5: 674 g (23.8 oz); ES925C12/DS5: 698 g (24.6 oz); ES925C15/DS5: 703 g (24.8 oz); ES925C18/DS5: 708 g (25.0 oz); ES925C21/DS5: 713 g (25.2 oz); ES925C24/DS5: 718 g (25.3 oz) |
| Dimensions | ES925C6/DS5: 97.0 mm (3.82") W x 130.0 mm (5.12") D x 150.6 mm (5.93") H; ES925C12/DS5: 97.0 mm (3.82") W x 130.0 mm (5.12") D x 258.0 mm (10.16") H; ES925C15/DS5: 97.0 mm (3.82") W x 130.0 mm (5.12") D x 334.2 mm (13.16") H; ES925C18/DS5: 97.0 mm |
| Output Connector | TB5M-type |
| Optional Interchangeable Elements | ESE-Ca cardioid (120°), ESE-Ha hypercardioid (100°), ESE-MLa MicroLine® (90°), ESE-Oa omnidirectional (360°) |
| Accessories Included | 7.6 m (24.9') microphone cable (TA5F, unterminated); AT8109a foam windscreen; set screw (M2 x 2); hex wrench |
| Audio-Technica Case Style | M44 |
| Length | 11 In. |
|---|---|
| Width | 5 In. |
| Height | 3 In. |
| Weight | 1 lbs |
