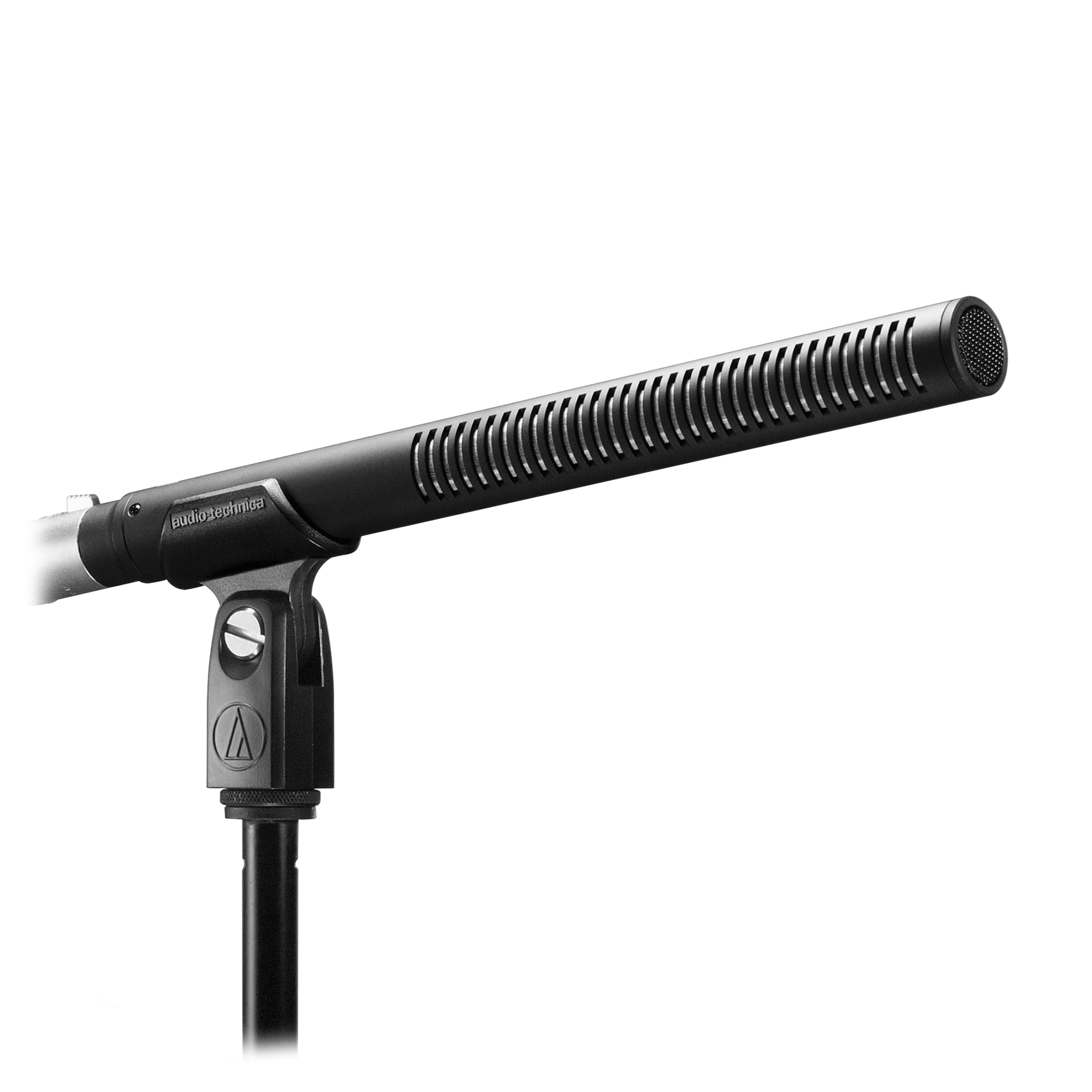

The Audio-Technica BP4029 Short M-S Stereo Shotgun Mic is a professional 9.3-inch stereo shotgun microphone designed for high-end broadcast and production use.
The Audio-Technica BP4029 Short M-S Stereo Shotgun Mic is a high-performance condenser microphone engineered for professional broadcasters, videographers, and sound recordists. Measuring 9.29 inches in length, this compact shotgun microphone provides exceptional audio capture for high-end production environments. The design originates from models developed for major international broadcast events, ensuring reliable performance in demanding field conditions.
This microphone utilizes an innovative Mid-Side (M-S) arrangement featuring independent line-cardioid and figure-of-eight condenser elements. This configuration allows the Audio-Technica BP4029 to capture accurate spatial imaging and provide flexible output options. The system supports discrete Mid-Side signals, giving recordists the ability to manipulate the stereo width during later production stages.
The Audio-Technica BP4029 includes an internal matrixing system with a switch-selectable interface. Users can choose between a non-matrixed M-S mode or two different internally-matrixed left-right stereo modes. The matrixed options provide a choice between wide and narrow stereo images, allowing the microphone to adapt to various recording environments and subject distances without external processing.
A switchable low-frequency roll-off filter helps maintain audio clarity by minimizing the pickup of unwanted ambient noise. This feature effectively reduces low-end interference in unpredictable recording locations. The microphone operates on phantom power, delivering consistent performance for professional recording hardware and camera systems.
Constructed for on-camera applications, the Audio-Technica BP4029 features a rugged yet lightweight housing. The sleek black color scheme ensures the microphone remains unobtrusive during filming. Its compact size makes it an ideal choice for camera-mount use where space and weight are critical factors.
The package includes a 0.61-meter (24-inch) cable equipped with a 5-pin XLRF connector to two standard 3-pin XLRM connectors, ensuring immediate compatibility with professional audio interfaces. The Audio-Technica BP4029 is RoHS compliant and free from hazardous substances specified in EU directives.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Line-cardioid, Figure-of-eight |
| Frequency Response | 40-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | Mid: -30 dB (31.6 mV) re 1V at 1 Pa; Side: -34 dB (19.9 mV) re 1V at 1 Pa; LR Stereo: -36 dB (15.8 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Mid: 123 dB SPL, 1 kHz at 1% T.H.D.; Side: 127 dB SPL, 1 kHz at 1% T.H.D.; LR Stereo: 126 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Mid: 101 dB, 1 kHz at Max SPL; Side: 101 dB, 1 kHz at Max SPL; LR Stereo: 102 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | Mid: 72 dB SPL, 1 kHz at 1 Pa; Side: 68 dB SPL, 1 kHz at 1 Pa; LR Stereo: 70 dB SPL, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 4 mA typical at 48V, each channel |
| Switches | M-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N); Flat, roll-off |
| Weight | 103 g (3.6 oz) |
| Cable | Dual 0.61 m (24") shielded two-conductor, terminated in two XLR3M-type connectors |
| Dimensions | 236.0 mm (9.29") long, 21.0 mm (0.83") diameter |
| Output Connector | Integral XLR5M-type |
| Accessories Included | AT8405a stand clamp for 5/8"-27 threaded stands; AT8134 foam windscreen; 5/8"-27 to 3/8"-16 threaded adapter; two O-Rings; protective carrying case |
| Audio-Technica Case Style | SG2 |
| Length | 19.5 In. |
|---|---|
| Width | 4.5 In. |
| Height | 2.25 In. |
| Weight | 2 lbs |
