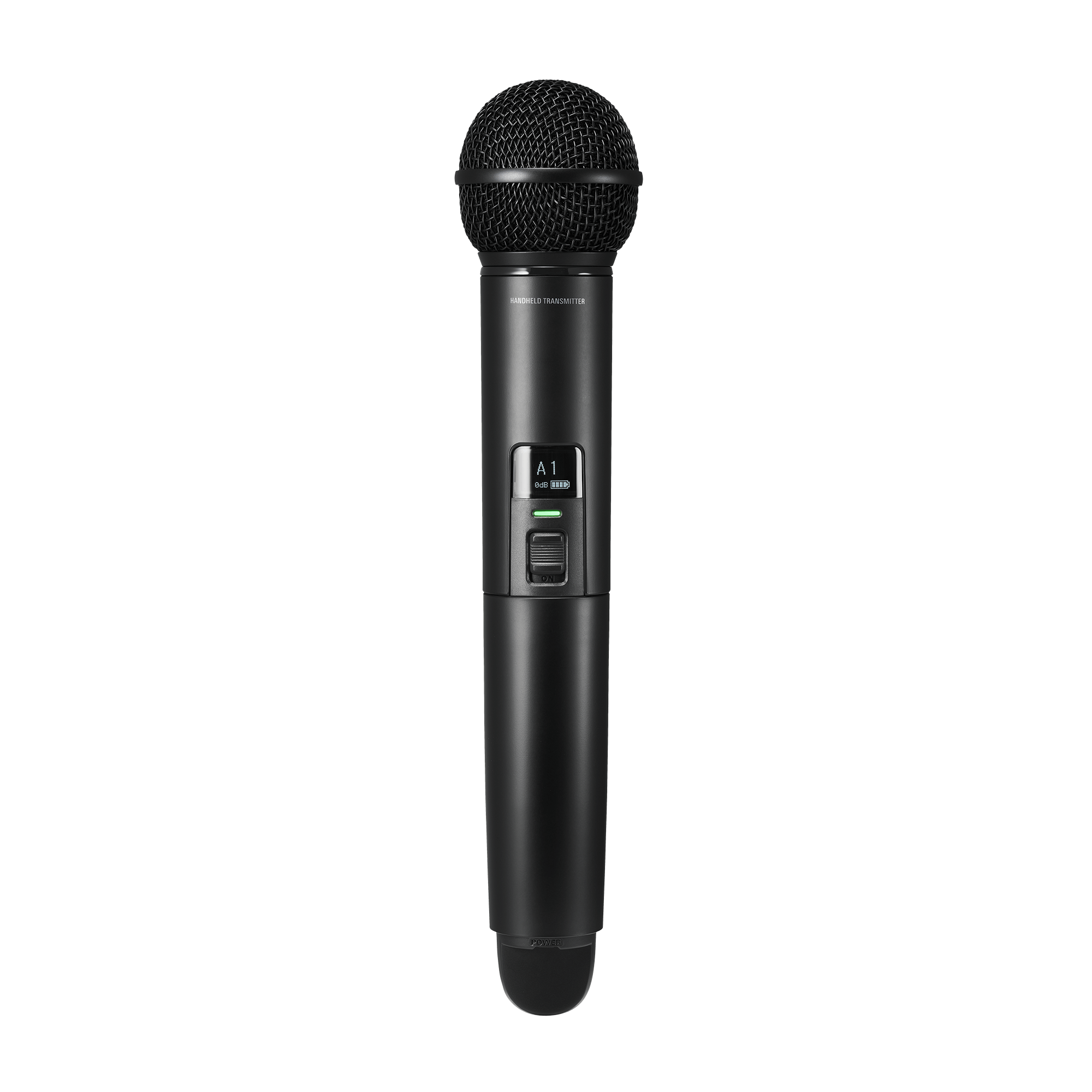

The Audio-Technica ATW-T1402 System 20 Pro Handheld Transmitter provides high-quality wireless audio transmission designed specifically for the System 20 PRO digital wireless system. This handheld transmitter delivers professional-grade performance and reliable signal stability for a variety of vocal applications.
The ATW-T1402 utilizes 24-bit/48 kHz audio processing to ensure high sound quality. This high-resolution digital output maintains the clarity and detail of the source audio, making it suitable for environments where vocal precision is required.
To maintain a consistent wireless connection, the transmitter features two antennas built directly into the housing. This internal antenna design helps optimize signal integrity during operation. The unit also includes a slide-to-mute switch, allowing the user to silence the audio output quickly and easily. An integrated OLED display provides clear visibility of essential transmitter information and settings.
The Audio-Technica ATW-T1402 is compatible with NiMH batteries, which support all-day use for extended sessions or events. This compatibility provides a reliable power solution for long-term operation. Every transmitter comes with an AT8456a Quiet-Flex stand clamp, facilitating secure mounting on standard microphone stands while maintaining flexibility for the user.
| Operating Frequencies | 2,402 to 2,480 MHz |
| Dynamic Range | 120 dB (A-weighted), typical |
| Total Harmonic Distortion | < 0.05%, typical |
| Maximum Simultaneous Use (recommended) | Standard: 10 channels; HD mode: 20 channels; It depends on the region and environment. |
| System Frequency Response | 20 to 20,000 Hz; Varies depending on the microphone to be installed. |
| Delay | Standard: 2.8ms; HD mode: 6.7ms |
| Audio Sampling Rate | Standard: 24-bit/48 kHz; HD mode: 24-bit/48 kHz |
| Encryption Method | AES128 |
| Receiver & Transmitter Specifications | ATW-R1440; ATW-RC14 |
| External Receiver Unit Port | RJ45 |
| NETWORK Port | RJ45: Fast Ethernet |
| LINK IN/OUT Port | RJ12 |
| Output Level | LINE max: +22 dBu (+20 dBV); LINE Unity: -20 Bu (-22 dBV); MIC max: -12 dBu (-10 dBV); MIC Unity: -50 dBu (-52 dBV) |
| Power Consumption | 3.7W |
| Power Supply | 12 V DC, 0.5 A (AC adapter) |
| Operating Temperature Range | 0ºC to +40ºC (32°F to 104°F) |
| Dimensions | 209.8 mm (8.3") × 165.6 mm (6.5") × 42.5 mm (1.7") (W × D × H) |
| Weight | 740 g (26 oz) |
| Included Accessories | AC adapter, AC adapter blade, short rack-mount adapter, long rackmount adapter, fixing screw × 5, link cable (30 cm [12"]), leg × 4 |
| ATW-RU14 | |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF sensitivity | -90 dBm, typical |
| Antenna | 1/2 wave dipole antenna, true diversity |
| External Connection Port | RJ45 |
| Power Supply | 12 V DC (RC14) |
| Operating Temperature Range | 0ºC to +40ºC (32°F to 104°F) |
| Dimensions | 86.0 mm (3.4") × 70.2 mm (2.8") × 18.7 mm (0.74") (W × D × H) |
| Weight | 77 g (2.7 oz) |
| Included Accessory | Unit holder, holder cover, wood screws x 2, antenna x 4 |
| ATW-T1401 BODY-PACK TRANSMITTER | |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Input Connection | Four pin locking connector; Pin 1: GND; Pin 2: INST INPUT; Pin 3: MIC INPUT; Pin 4: DC BIAS +10 V |
| Battery | 3 V DC (two 1.5 V AA) |
| Battery Life | AA alkaline batteries: Approx. 15 hours; AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes; AA lithium batteries: Approx. 29 hours; This varies depending on usage conditions. |
| Operating Temperature | 5ºC to +40ºC |
| Dimensions | 63.7 mm (2.5") × 22.7 mm (0.89") × 107.4 mm (4.2") (W × D × H) |
| Weight | 80g (2.8 oz), without batteries |
| ATW-T1402 HANDHELD TRANSMITTER | |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Microphone Type | Dynamic |
| Microphone Polar Pattern | Hypercardioid |
| Battery | 3 V DC (two 1.5 V AA) |
| Battery Life | Approx. 18 hours (alkaline); Approx. 16 hours 30 minutes (Ni-MH); Approx. 35 hours (lithium); This varies depending on usage conditions. |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 265.0 mm (10") × 53.7 mm (2.1") |
| Weight | 300 g (11 oz), without batteries |
| Included Accessories | Mic holder AT8456a, converting thread adapter (3/8" - 5/8") |
| ATW-T1406 BOUNDARY MICROPHONE TRANSMITTER | |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Maximum Input Sound Pressure Level | 139 dB SPL |
| Microphone Type | Condenser |
| Microphone Polar Pattern | Cardioid |
| Built-in Battery | 3.7V lithium-ion battery (5.5Wh, 1460mAh) |
| Battery Life | Approx. 12 hours; This varies depending on usage conditions. |
| Charging Time | Approx. 3 hours and 10 minutes; This varies depending on usage conditions. |
| USB Charging Port | USB Type-C (USB 2.0) |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 90.5 mm (3.6") × 129.4 mm (5.1") × 31.9 mm (1.3") (W × D × H) |
| Weight (with battery) | 510 g (18 oz), including battery |
| Included Accessories | USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9']) |
| ATW-T1407 DESK STAND TRANSMITTER | |
| Modulation Mode | GFSK |
| RF Output Power | 10mW EIRP |
| RF Sensitivity | -90 dBm, typical |
| Antenna | True diversity |
| Microphone | Gooseneck microphone supported |
| Phantom Power Supply | DC24V |
| Built-in Battery | 3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh) |
| Battery Life | When using a gooseneck microphone with no LED: Approx. 12 hours; When using a gooseneck microphone with an LED: Approx. 8 hours; This varies depending on usage conditions. |
| Charging Time | Approx. 3 hours and 10 minutes; This varies depending on usage conditions. |
| USB Charging port | USB Type-C (USB 2.0) |
| Operating Temperature Range | 5ºC to +40ºC (41°F to 104°F) |
| Dimensions | 90.5 mm (3.6") × 129.4 mm (5.1") × 47.6 mm (1.9") (W × D × H) |
| Weight | 490 g (17 oz), including battery |
| Included Accessories | USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9']) |
| Length | 4.41 In. |
|---|---|
| Width | 11.81 In. |
| Height | 2.76 In. |
| Weight | 1.19 lbs |
