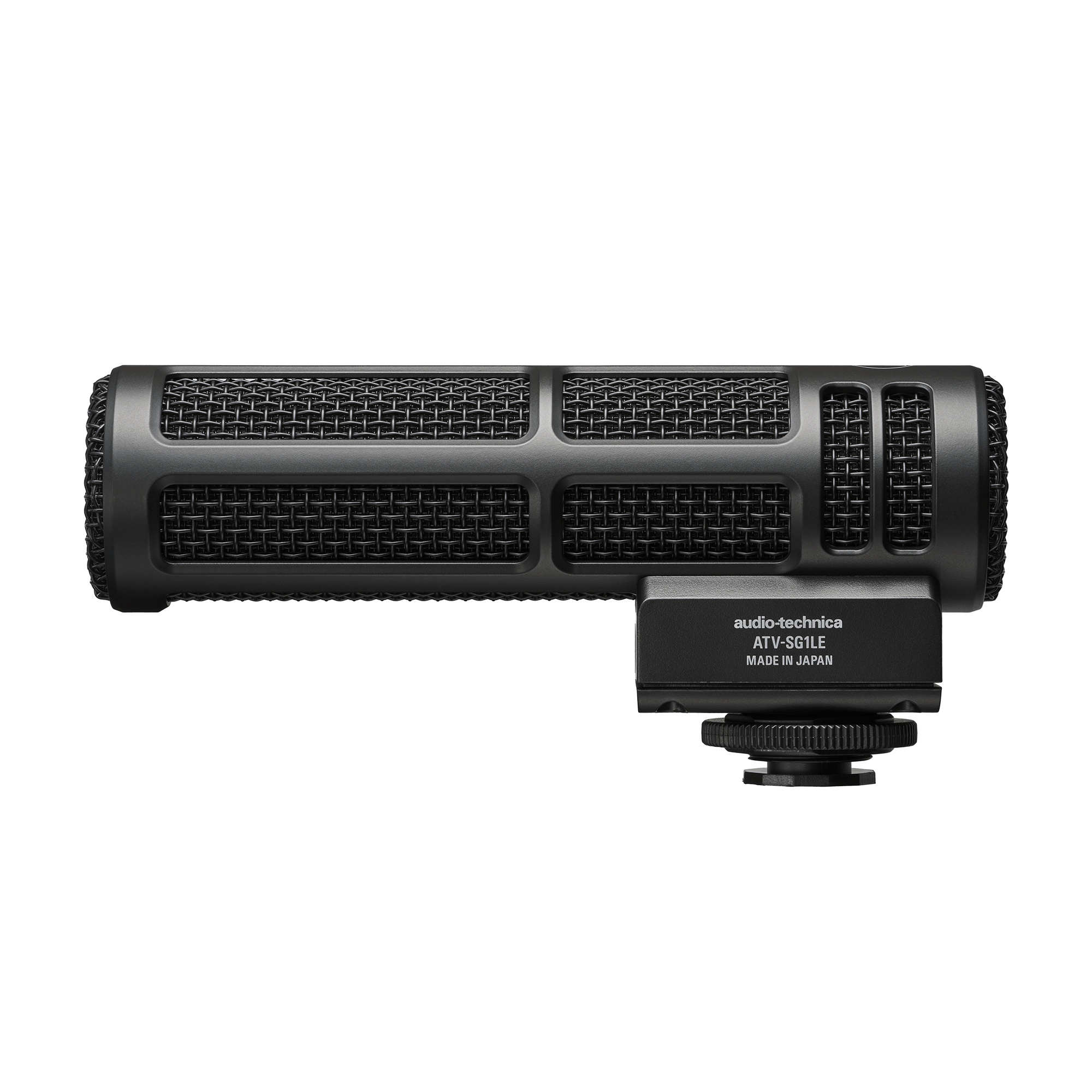

The Audio-Technica ATV-SG1LE On-Camera Shotgun Microphone is a mono on-camera shotgun that utilizes plug-in power for simplified operation.
The Audio-Technica ATV-SG1LE On-Camera Shotgun Microphone is a compact, mono audio solution designed for content creators and YouTubers seeking professional-quality sound. This microphone connects directly to DSLR, mirrorless SLR, and other compatible cameras via a TRS-to-TRS cable, utilizing a specialized plug-in power circuit. Unlike standard plug-in microphones, the ATV-SG1LE maintains an extended frequency range and high maximum SPL for superior performance without requiring internal batteries.
The ATV-SG1LE features a newly designed 14 mm large-diameter diaphragm that provides high sensitivity and low-noise characteristics for rich, detailed audio reproduction. To ensure focused pickup, the microphone employs a highly directional 100 mm acoustic tube—the same technology used in the flagship ATV-SG1 model. This component targets the sound source while effectively blocking unwanted background noise to deliver natural, lifelike sound capture for the human voice and other audio sources.
Equipped with an integrated shock mount, the microphone dissipates handling noise caused by camera movement and vibrations during recording. Audio-Technica’s patented noise-immunity technology provides resistance against RF noise and hum emitted by smartphones and other nearby electronic devices. For outdoor environments, the included wind muff ensures clear audio pickup by protecting the capsule from wind interference.
The microphone measures only 127.1 mm (5.0") in length and 35 mm (1.38") in width, making it a portable choice for action-packed activities. A unique 12-sided shoe mounting plate allows users to rotate the microphone in 30-degree increments. This feature enables precise horizontal positioning to capture audio from off-center sources accurately while maintaining a secure attachment to the camera.
Designed and manufactured in Japan, the ATV-SG1LE reflects over 60 years of Audio-Technica’s expertise in broadcast and studio audio technology. The device combines a lightweight form factor with high-resolution sound capture to support a wide range of video production applications, from home studio projects to professional broadcasting.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Line + gradient |
| Frequency Response | 20-20,000 Hz |
| Open Circuit Sensitivity | -38 dBV |
| Maximum Input Sound Level | 114 dB SPL (1 kHz, THD 3%) |
| Dynamic Range | 102.5 dB (1 kHz at Max SPL) |
| Signal-to-Noise Ratio | 82.5 dB (1 kHz at 1 Pa, A-weighted) |
| Power Supply | Plug-in power (1.5 V to 5.0 V) |
| Operation Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature Range | 10°C (14°F) to 60°C (140°F), 10% to 90% RH (without condensation) |
| Weight | About 100 g (3.5 oz) |
| Dimensions | 127.1 mm (5.0") long, 35 mm (1.4") maximum body diameter (microphone), 59 mm (2.3") height |
| Main Output Terminal | 3.5 mm (1/8") stereo mini-jack |
| Accessories Included | Coiled cable (approx. 5 cm (2.0") (when extended: approx. 50 cm (20")), 3.5 mm (1/8") stereo mini plug × 2); Wind muff (exclusive for ATV-SG1LE) |
| Notes | For product improvement, the product is subject to modification without notice. |
| Length | 5.12 In. |
|---|---|
| Width | 9.65 In. |
| Height | 2.76 In. |
| Weight | 0.72 lbs |
