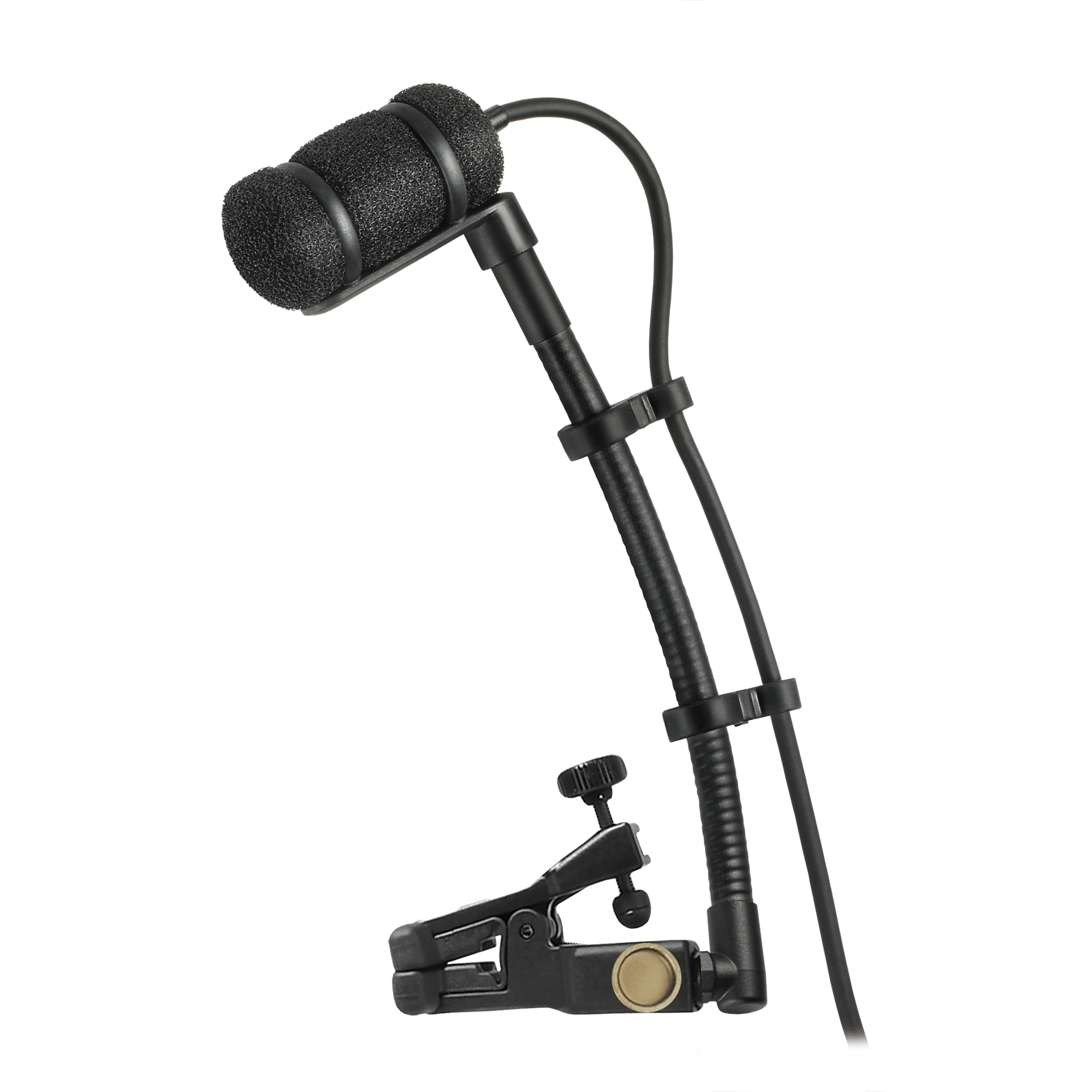

The Audio-Technica ATM350U Universal Clip-On Instrument Microphone is a high-SPL cardioid condenser system designed for brass, saxophone, and other instruments. This UniMount mounting system provides a clear and well-balanced response, allowing musicians to perform with confidence while maintaining precise microphone placement.
The ATM350U features the AT8491U universal clip-on mount and the rugged AT8490 5-inch gooseneck. The mount attaches securely to the bell of an instrument and provides excellent shock resistance for the microphone. The gooseneck rigidly holds its shape to ensure the microphone stays in position even during aggressive instrument movement.
The ATM350a cardioid condenser microphone uses a low-profile design for minimum visibility on stage. Its cardioid polar pattern reduces the pickup of sounds from the sides and rear to improve the isolation of the desired sound source. This microphone delivers a crisp, balanced response even at high sound pressure levels. For added versatility, interchangeable elements are available for hypercardioid and omnidirectional polar patterns.
An in-line power module manages the microphone signal and includes a switchable 80 Hz high-pass filter. This filter assists in controlling undesired ambient noise and low-frequency interference during performance.
The system includes an AT8468 violin mount equipped with a hook-and-loop fastener for additional instrument compatibility. A protective carrying case is provided to secure the microphone and its components during transport.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 40 – 20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | –49 dB (3.5 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 159 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 130 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11– 52V DC, 3.5 mA typical |
| Switches | Flat, roll-off |
| Weight (Microphone) | 14.5 g (0.5 oz) |
| Weight (Power Module) | 90 g (3.2 oz) |
| Weight | Microphone: |
| Power Module | |
| Cable | 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector |
| Dimensions | Microphone: |
| Power Module | |
| Dimensions (Power Module) | 92 mm (3.62") long, 18.9 mm (0.74") diameter |
| Dimensions (Microphone) | 37.8 mm (1.49'') long, 12.2 mm (0.48'') maximum body diameter |
| Output Connector (Power Module) | Integral 3-pin XLRM-type |
| Output Connector | Power Module: |
| Optional Interchangeable Elements | UE-H hypercardioid (100°) UE-O omnidirectional (360°) |
| Accessories Included | ATM350a cardioid condenser microphone; AT8543 power module; AT8491U UniMount universal clip-on mount; AT8490 UniMount 5" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case |
| Audio-Technica Case Style | M36 |
| Length | 12.25 In. |
|---|---|
| Width | 5.75 In. |
| Height | 3.25 In. |
| Weight | 1.5 lbs |
