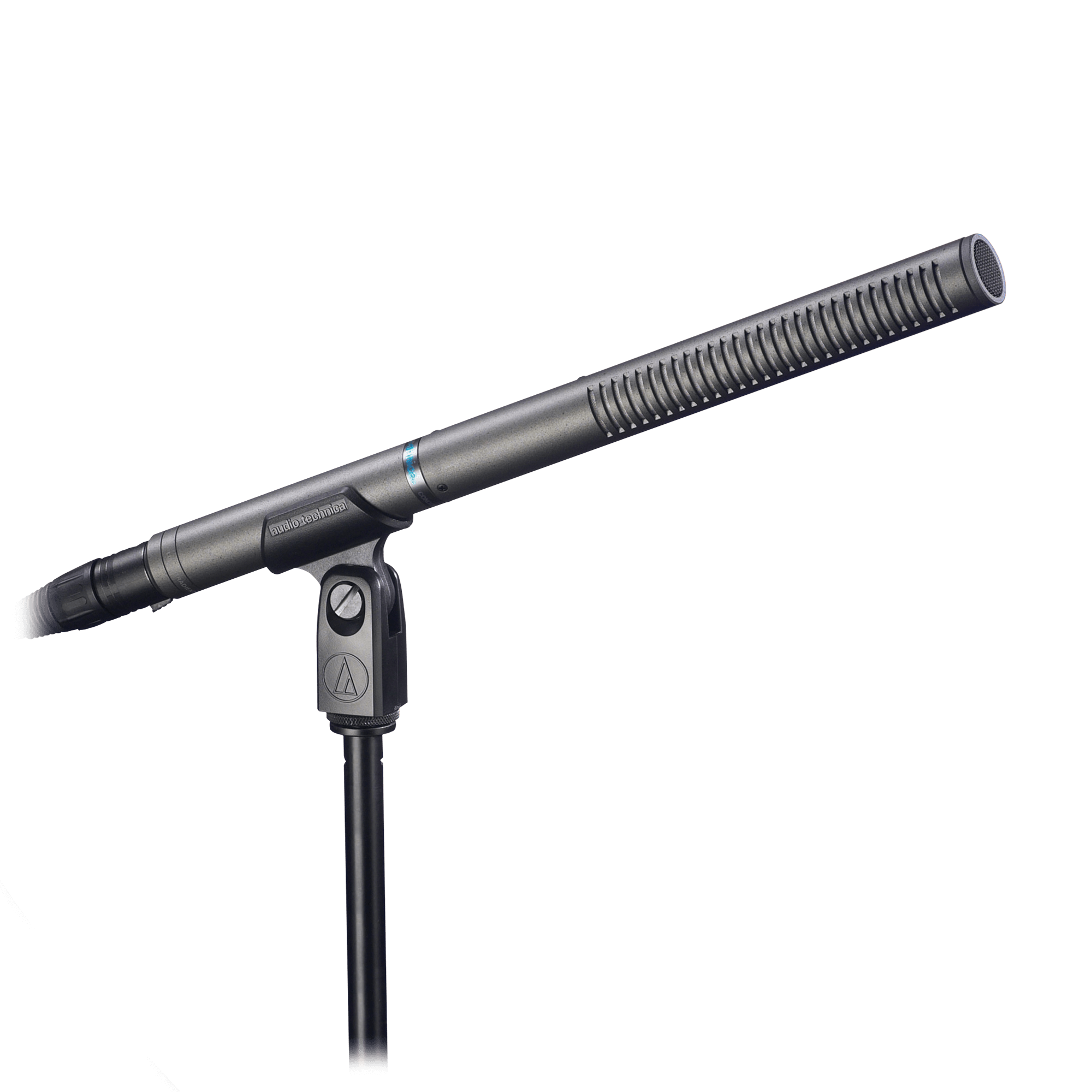

The Audio-Technica AT897 Short Shotgun Condenser Microphone is a high-performance tool engineered for field audio acquisition in film, television, video production, and professional recording applications. This line plus gradient microphone excels in wildlife recording and broadcast environments, providing a reliable solution for capturing high-quality sound in diverse settings.
Measuring 11.0 inches in length, the AT897 mounts conveniently on DV camcorders without adding significant weight to the camera rig. Its short profile ensures the microphone remains out of the frame even when used with compact digital cameras, making it an ideal choice for mobile production.
The line plus gradient design creates a narrow acceptance angle, which is essential for outstanding long-distance audio pickup. This configuration delivers smooth, natural-sounding on-axis audio quality while maintaining excellent rejection of off-axis sound arriving from the sides and rear of the microphone.
The Audio-Technica AT897 offers flexible power options, operating on either battery or phantom power to accommodate various recording setups. It also features a switchable low-frequency roll-off to help manage unwanted noise during audio acquisition.
Designed specifically for electronic news gathering (ENG) and electronic field production (EFP), this microphone supports professional broadcast standards. The unit is RoHS compliant, meeting European Union directives regarding hazardous substances.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Line + gradient |
| Frequency Response | 20-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | Phantom: -40 dB (10.0 mV) re 1V at 1 Pa Battery: -41 dB (8.9 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Phantom: 129 dB SPL, 1 kHz at 1% T.H.D. Battery: 115 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Phantom: 112 dB, 1 kHz at Max SPL Battery: 98 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 77 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Switches | Flat, roll-off (recessed) |
| Weight | 5.1 oz (145 g) |
| Dimensions | 10.98" (279.0 mm) long, 0.83" (21.0 mm) diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8405a stand clamp for 5/8"-27 threaded stands; AT8134 windscreen; 5/8"-27 to 3/8"-16 threaded adapter; protective carrying case |
| Audio-Technica Case Style | SG2 |
| Length | 19.5 In. |
|---|---|
| Width | 4.5 In. |
| Height | 2.4 In. |
| Weight | 1.8 lbs |
