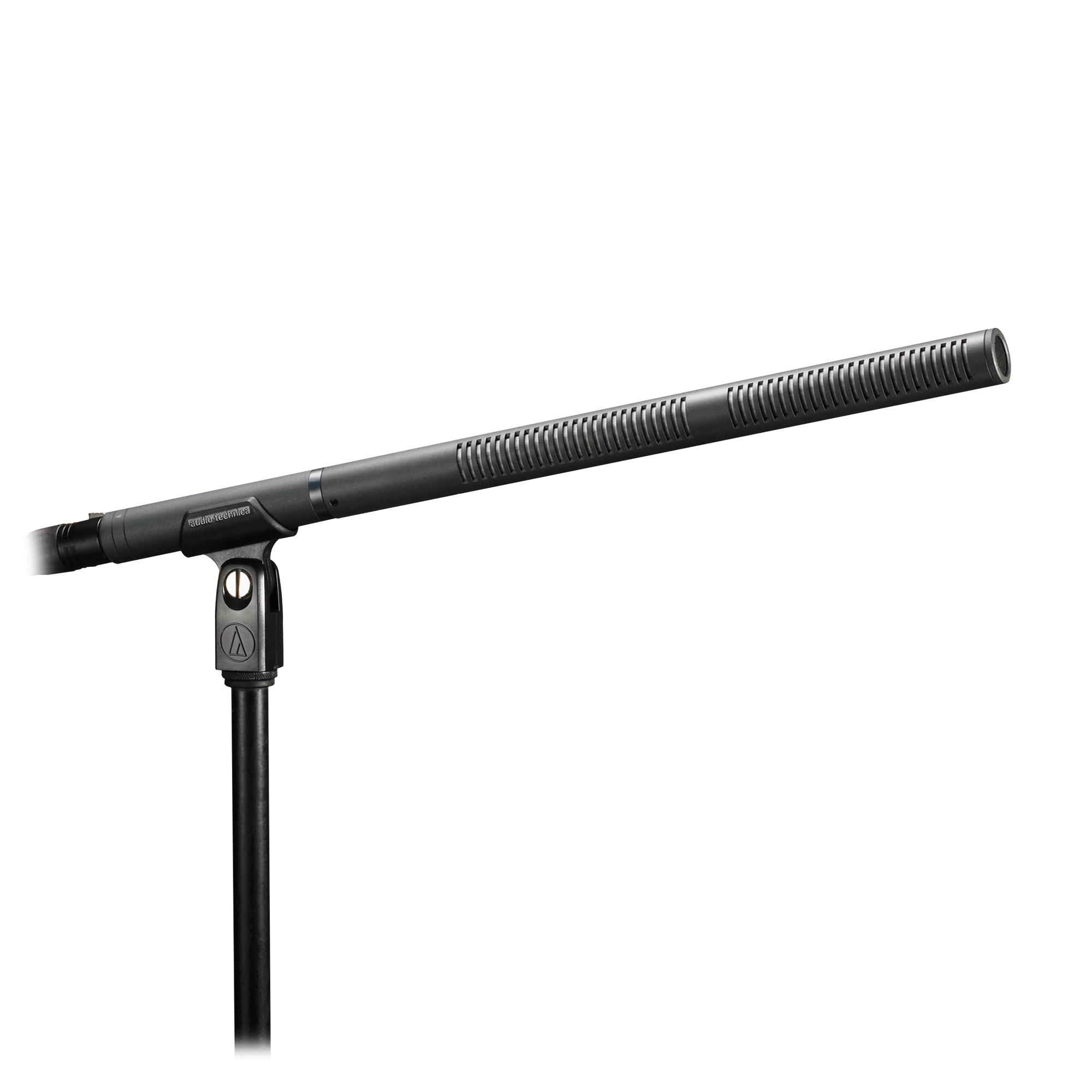

The Audio-Technica AT8035 Short Shotgun Condenser Microphone is a line and gradient condenser microphone engineered for broadcast and video production. This 14.53-inch microphone serves as a primary tool for Electronic News Gathering (ENG) and Electronic Field Production (EFP). It provides the necessary reach and clarity for outdoor recording and specialized audio applications.
The AT8035 features a narrow acceptance angle ideal for long-distance sound pickup. This design ensures excellent sound rejection from the sides and rear of the microphone, allowing for precise focus on the intended subject. A switchable low-frequency roll-off helps manage audio quality by reducing unwanted low-end interference.
This microphone supports both handheld and boom-mounted use cases, offering flexibility in various recording environments. The AT8035 operates using either internal battery power or external phantom power, ensuring compatibility with a wide range of recording equipment.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Line + gradient |
| Frequency Response | 40-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | Phantom: –38 dB (12.5 mV) re 1V at 1 Pa Battery: –39 dB (11.2 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Phantom: 132 dB SPL, 1 kHz at 1% T.H.D. Battery: 120 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Phantom: 110 dB, 1 kHz at Max SPL Battery: 98 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 72 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Switches | Flat, roll-off |
| Weight | 170 g (6.0 oz) |
| Dimensions | 369.0 mm (14.53") long, 21.0 mm (0.83") diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8132 windscreen; protective carrying case |
| Audio-Technica Case Style | SG1 |
| Length | 4.5 In. |
|---|---|
| Width | 19.5 In. |
| Height | 2.5 In. |
| Weight | 1.5 lbs |
