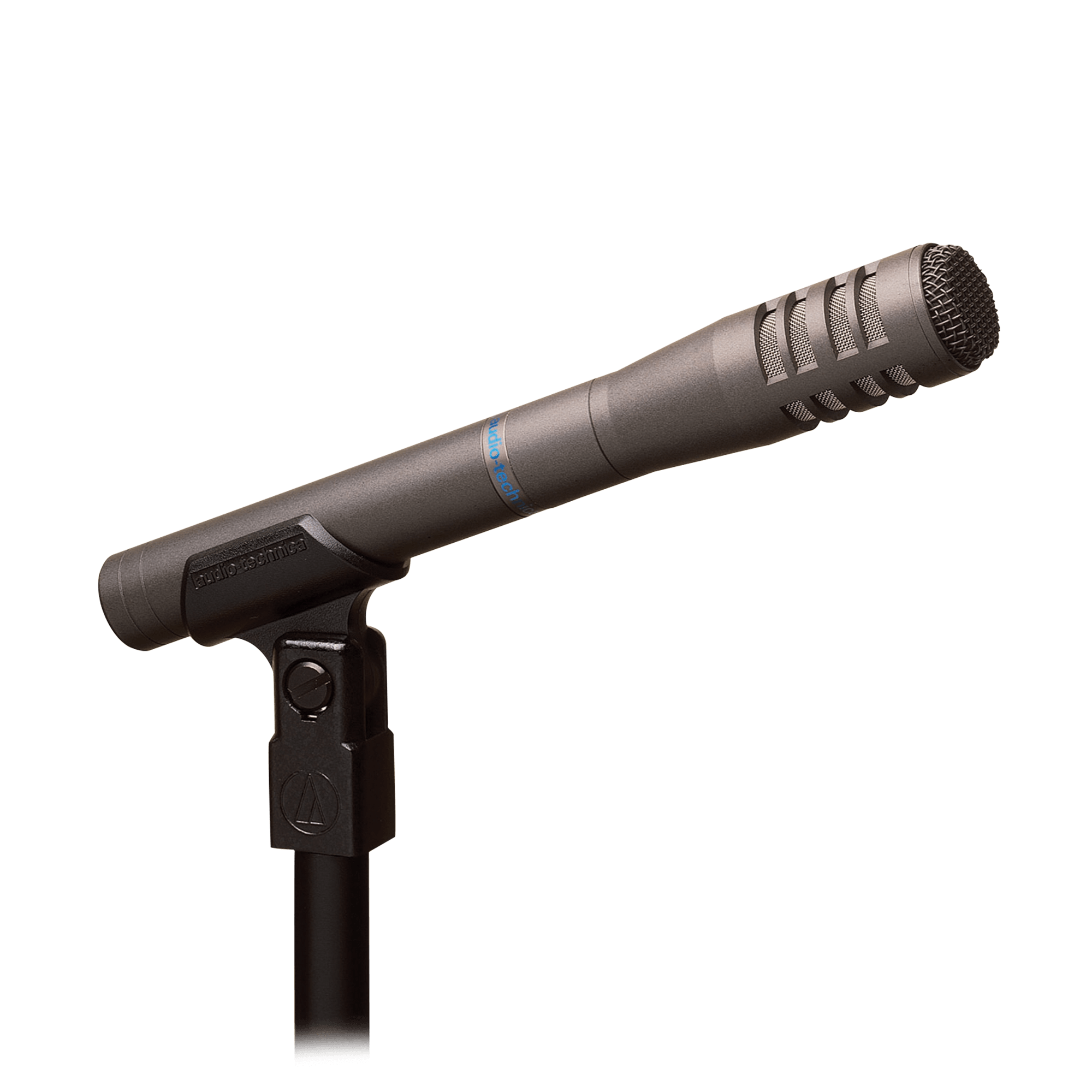

The Audio-Technica AT8033 Cardioid Condenser Microphone is an all-purpose condenser microphone designed for high-quality audio acquisition across a variety of environments. This microphone serves as a versatile tool for capturing sound in both studio and stage applications. Users can utilize the AT8033 for diverse tasks ranging from handheld interviews to recording acoustic instruments and vocals.
The AT8033 excels in several recording scenarios, making it ideal for interviews, acoustic guitar, percussion, and overheads. Its design accommodates high-SPL capability, allowing the microphone to handle loud sound sources effectively. The wide frequency response ensures the device captures a broad range of audio detail for professional results.
This microphone features a cardioid polar pattern to enhance sound isolation. The cardioid design reduces the pickup of unwanted sounds from the sides and rear, focusing specifically on the intended sound source. The AT8033 maintains outstanding linearity both on-axis and off-axis, which provides consistent and accurate audio reproduction regardless of the source position.
For maximum flexibility in the field or the studio, the AT8033 operates on either battery or phantom power. This dual-power capability allows for seamless integration into various hardware setups and recording equipment, ensuring the microphone remains functional in diverse locations.
The AT8033 is RoHS compliant, meeting specific environmental safety standards. This certification ensures the product is free from hazardous substances specified in the EU directive, providing a professional audio solution that adheres to modern regulatory requirements.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | Phantom: –44 dB (6.3 mV) re 1V at 1 Pa Battery: –45 dB (5.6 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Phantom: 137 dB SPL, 1 kHz at 1% T.H.D. Battery: 123 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Phantom: 113 dB, 1 kHz at Max SPL Battery: 99 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Switches | Flat, roll-off |
| Weight | 159 g (5.6 oz) |
| Dimensions | 194.2 mm (7.65") long, 26.0 mm (1.02") head diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; battery; soft protective pouch |
| Audio-Technica Case Style | S4 |
| Length | 9.5 In. |
|---|---|
| Width | 5 In. |
| Height | 2.8 In. |
| Weight | 1 lbs |
