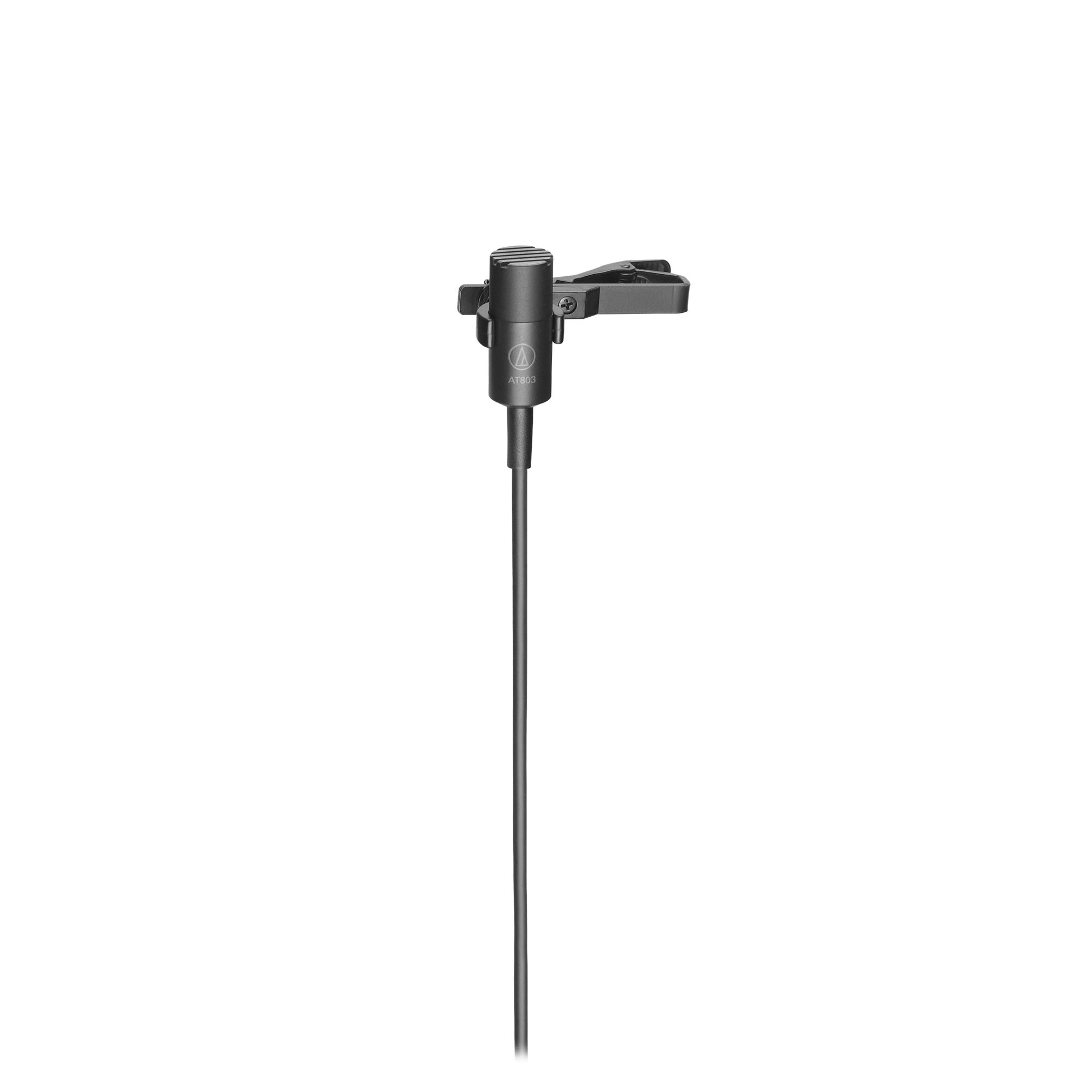

The Audio-Technica AT803 Omnidirectional Lavalier Microphone is an omnidirectional condenser lavalier microphone designed for high-quality audio capture.
The Audio-Technica AT803 Omnidirectional Lavalier Microphone provides excellent yet unobtrusive sound pickup for professional environments. This omnidirectional condenser microphone delivers high intelligibility for lecturers and stage or television performers who require a discreet clip-on solution. Its versatile design also supports use with musical instruments.
The AT803 includes an integral 80 Hz high-pass UniSteep filter. This component allows for easy switching from a flat frequency response to a low-end roll-off. The UniSteep filter provides steep low-frequency attenuation to improve overall sound pickup quality while maintaining natural voice characteristics.
This microphone offers flexible operation by running on either battery or phantom power. The unit features a 6-foot (1.8 m) cable that is permanently attached to the microphone housing. This cable utilizes a TA3F connector to interface with the included power module, ensuring a secure and reliable connection during performances or presentations.
The AT803 meets RoHS compliance standards, meaning the construction is free from hazardous substances specified in EU directives. The rugged yet lightweight design ensures the microphone remains inconspicuous when clipped to clothing or attached to instruments, providing professional-grade performance without distracting the audience or the performer.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | Phantom: -44 dB (6.3 mV) re 1V at 1 Pa Battery: -46 dB (5.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Phantom: 135 dB SPL, 1 kHz at 1% T.H.D. Battery: 121 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Phantom: 107 dB, 1 kHz at Max SPL Battery: 93 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 66 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Switches | Off, on-flat, on-roll-off |
| Weight (Microphone) | 2.8 g (0.1 oz) |
| Weight (Power Module) | 139 g (4.9 oz) |
| Weight | Microphone : 2.8 g (0.1 oz) - Power Module : 139 g (4.9 oz) |
| Cable | 1.8 m (6') long (permanently attached to microphone), 2.6 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type connector |
| Dimensions | Microphone: 25.0 mm (0.98") long, 10.2 mm (0.40") diameter - Power Module: 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D |
| Dimensions (Power Module) | 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D |
| Dimensions (Microphone) | 25.0 mm (0.98") long, 10.2 mm (0.40") diameter |
| Output Connector (Power Module) | Integral 3-pin XLRM-type |
| Output Connector | Integral 3-pin XLRM-type (on Power Module) |
| Accessories Included | AT8531 power module; AT8419 clothing clip; AT8116 windscreen; battery; protective carrying case |
| Audio-Technica Case Style | M1 |
| Length | 10.25 In. |
|---|---|
| Width | 4.5 In. |
| Height | 1.75 In. |
| Weight | 1 lbs |
