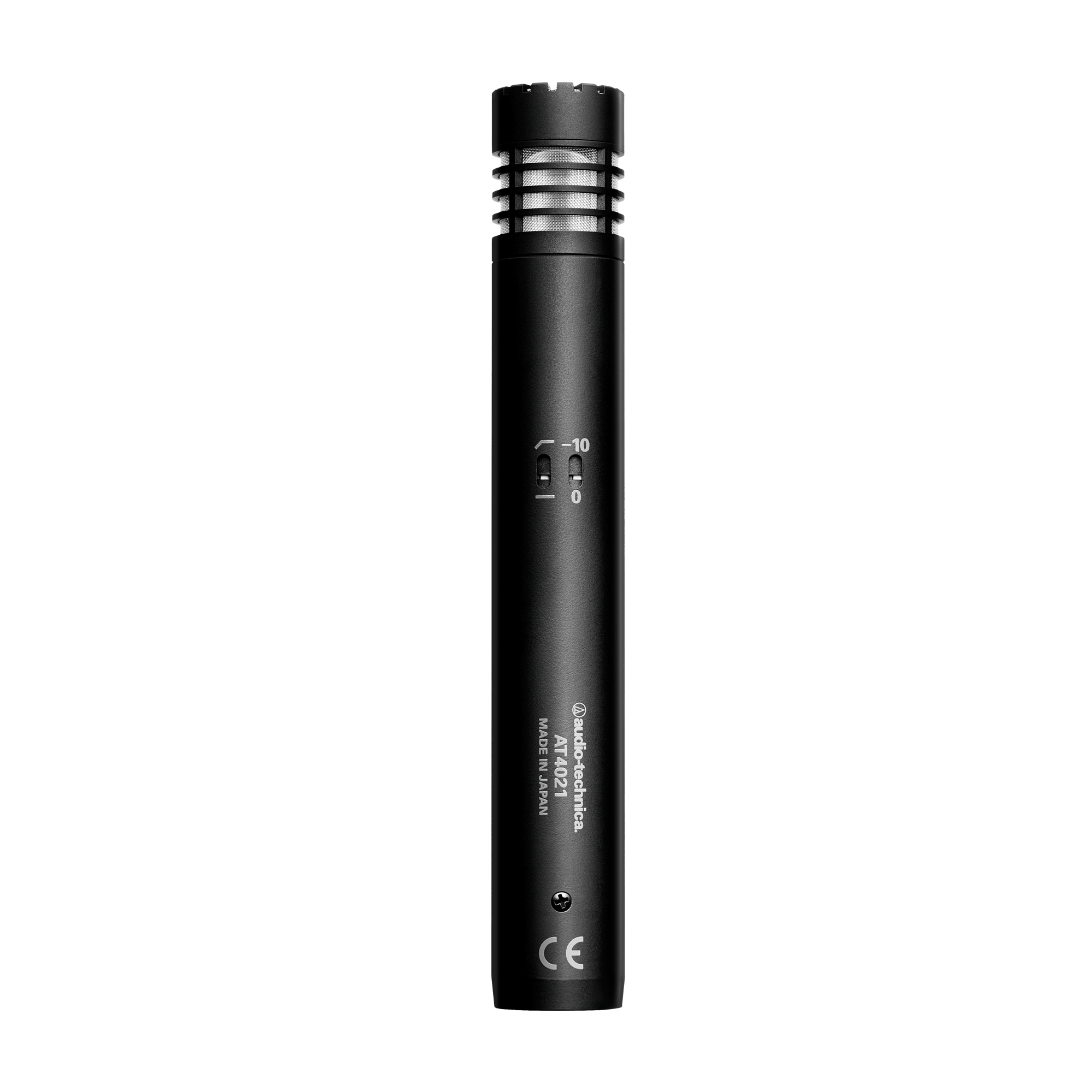

The Audio-Technica AT4021 Cardioid Condenser Instrument Microphone is a low-profile, end-address microphone engineered for critical studio and live applications. It provides a flat, extended frequency response and a wide dynamic range to ensure accurate sound reproduction across various environments.
The AT4021 utilizes a low-mass diaphragm that enhances transient response and increases response bandwidth. This design reduces mechanical noise transfer and handling noise, allowing for cleaner audio capture. The microphone offers exceptional reproduction of low-frequency sounds, making it suitable for capturing instruments with deep tonal characteristics.
The cardioid polar pattern delivers a high front-to-back rejection ratio, which improves the isolation of the intended sound source. This pattern effectively minimizes unwanted noise from the sides and rear. To accommodate loud sound sources, the microphone handles high maximum SPL without sacrificing clarity.
The AT4021 includes built-in controls for precise signal management:
Built with a rugged design, this microphone maintains reliability in both stage and studio settings. The low self-noise performance ensures compatibility with sophisticated digital recording equipment, maintaining signal integrity throughout the recording process.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 20-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | -34 dB (19.9 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal) |
| Noise | 14 dB SPL |
| Dynamic Range | 132 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 80 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 48V DC, 3.0 mA typical |
| Switches | Flat, roll-off; 10 dB pad |
| Weight | 119 g (4.2 oz) |
| Dimensions | 144.0 mm (5.67") long, 21.0 mm (0.83") maximum body diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case |
| Audio-Technica Case Style | S1 |
| Length | 10.35 inches |
|---|---|
| Width | 4.53 inches |
| Height | 1.67 inches |
| Weight | 1.1 lbs |
