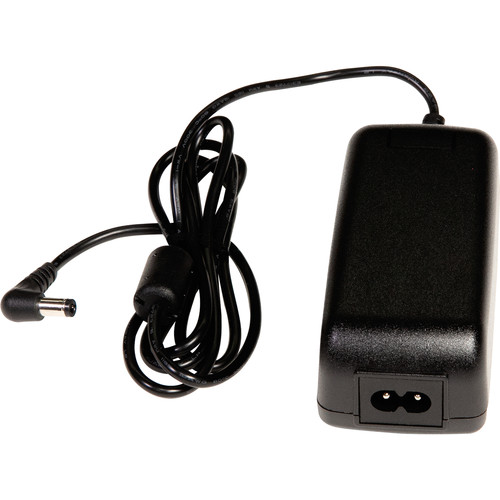

The Audio-Technica AD-SA1230XA Power Supply For ATW-CHG3(N) Chargers provides centralized power for up to five ATW-CHG3 or ATW-CHG3N charging stations when integrated with the AT8687 link kit.
The Audio-Technica AD-SA1230XA is a dedicated AC adapter designed to provide reliable power for the ATW-CHG3 and ATW-CHG3N charging stations. This power supply functions as a centralized energy source, optimizing the operation of multi-unit charging configurations.
The AD-SA1230XA streamlines power distribution by supporting multiple charging units from a single outlet. When used in conjunction with the AT8687 link kit, this adapter powers up to five linked ATW-CHG3 or ATW-CHG3N stations. This integration eliminates the requirement for individual power supplies for every station, reducing cable clutter and simplifying installation in professional settings.
Audio-Technica engineered the AD-SA1230XA for seamless compatibility with specific wireless charging components. It serves as an essential component for users expanding their charging capacity through linked systems.
| DC Cable Length | 1.5 m |
| Power Supply Type | Switching Mode Power Supply (SMPS) |
| Ripple and Noise | < 150mVp-p |
| DC Output Connector Type | Barrel Connector (5.5mm OD / 2.1mm ID) |
| Operating Humidity Range | 10% to 90% RH (non-condensing) |
| AC Power Cord Included | Yes (Region-specific) |
| Form Factor | Desktop AC/DC Adapter |
| Line Regulation | ±1% |
| Compatible Chargers | Audio-Technica ATW-CHG3, ATW-CHG3N |
| Mean Time Between Failures (MTBF) | 50,000 hours |
| Storage Temperature Range | -20°C to 85°C (-4°F to 185°F) |
| AC Input Connector Type | IEC C8 (Figure-8) |
| Output Power | 36W |
| Color | Black |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Output Current | 3A |
| Input Voltage | 100-240V AC |
| Material | High-impact plastic casing |
| Supported Charging Docks | Up to 5 |
| Input Frequency | 50/60 Hz |
| Efficiency Rating | DoE Level VI |
| Protection Features | Overload Protection, Short Circuit Protection, Over Voltage Protection, Short Circuit Protection |
| Standby Power Consumption | < 0.1W |
| Load Regulation | ±5% |
| Output Voltage | 12V DC |
| Input Current | 1.0A max |
| Length | 6.06 inches |
|---|---|
| Width | 5.35 inches |
| Height | 2.48 inches |
| Weight | 0.55 lbs |
